TG799Vac Xtream 512MB: A deep dive by wuseman
Welcome to my in-depth README for the TG799Vac Xtream v3, a comprehensive document crafted through extensive reverse engineering and ethical hacking. This guide is the culmination of my personal efforts and contains a wealth of knowledge, including custom scripts, detailed tutorials, and unique insights into the router's functionalities.
Disclaimer
This README is a personal document created solely based on my experiences and expertise. It is important to note that I do not guarantee the accuracy or reliability of the information provided. The procedures and methods described herein reflect my individual approach and may not necessarily be applicable or safe for all users or systems. Anyone choosing to follow the instructions or use the information provided does so at their own risk. I cannot be held responsible for any consequences, damages, or losses resulting from the use of this guide.
Purpose
The primary goal of this document is to serve as a personal repository of knowledge for my own reference. However, it's crafted with the utmost care and attention to detail, making it a professional and serious guide for those with a deep interest in understanding or modifying the TG799Vac Xtream v3. While this README remains private and is intended for my use, it is structured to meet high standards of clarity and professionalism, should it be shared with select individuals.
Screenshots: WebUi Roles
- Admin and Telia's role

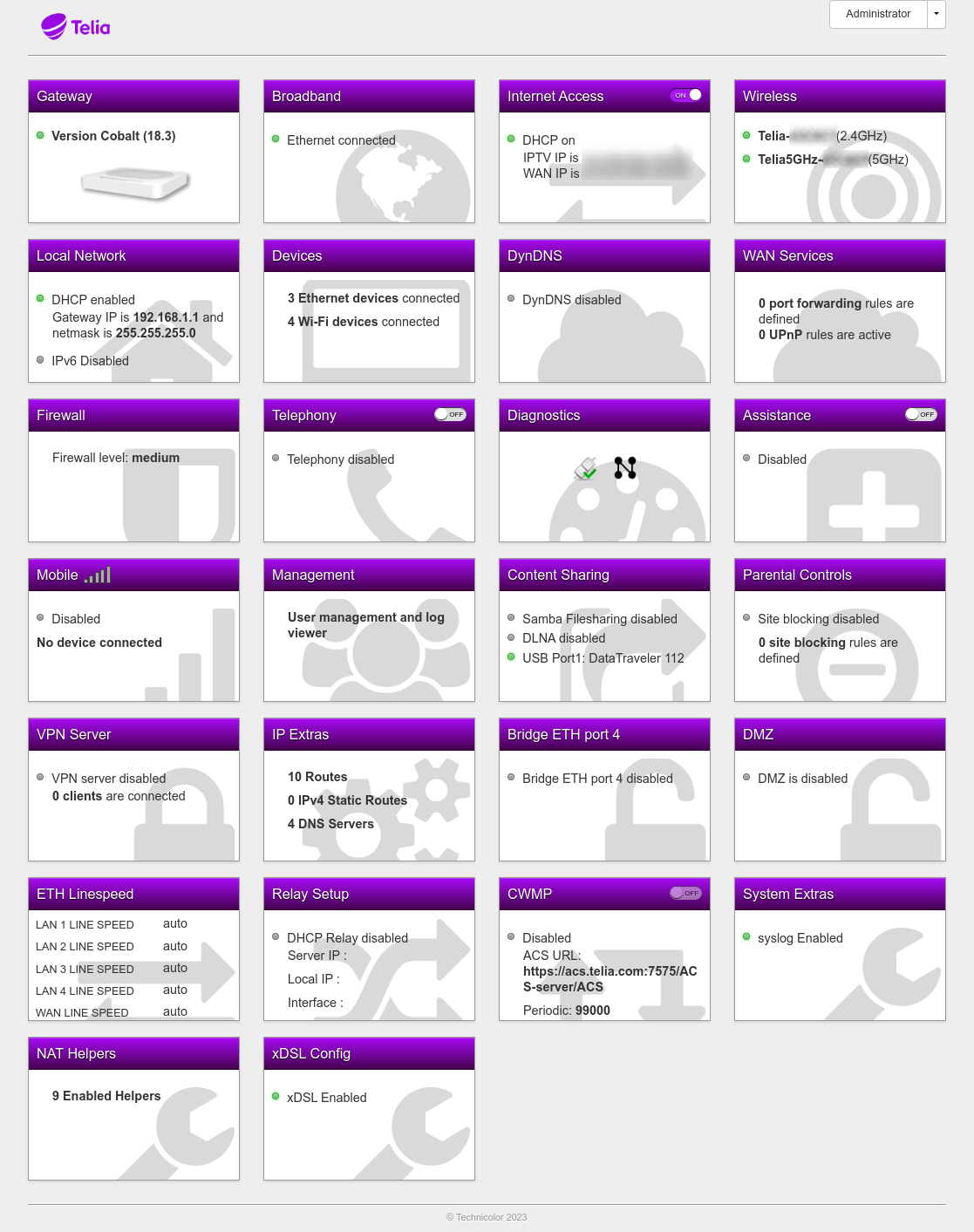

- SuperUser Role
Default Message Of The Day
_______ __ __ __
|_ _|.-----.----.| |--.-----.|__|.----.-----.| |.-----.----.
| | | -__| __|| | || || __| _ || || _ | _|
|___| |_____|____||__|__|__|__||__||____|_____||__||_____|__|
N E X T G E N E R A T I O N G A T E W A Y
--------------------------------------------------------------------
NG GATEWAY SIGNATURE DRINK
--------------------------------------------------------------------
* 1 oz Vodka Pour all ingredients into mixing
* 1 oz Triple Sec tin with ice, strain into glass.
* 1 oz Orange juice
--------------------------------------------------------------------
Software program:
Copyright © 2018 - Technicolor Delivery Technology SAS and/or its Group Company (Technicolor)
All Rights Reserved
This program contains proprietary information which is a trade secret of Technicolor
and also is protected by intellectual property as an unpublished work
under applicable Copyright laws/right of authorship.
This program is also subject to some patent and pending patent applications.
Technicolor� is registered trademark and trade name of Technicolor group company,
and shall not be used in any manner without express written from Technicolor.
The use of the program and documentation is strictly limited to your own internal
evaluation of the product embedding such program, unless expressly agreed otherwise
by Technicolor under a specific agreement.
Recipient is to retain this program in confidence and is not permitted to use
or make copies thereof other than as permitted in a written agreement with Technicolor,
unless otherwise expressly allowed by applicable laws.
Recipient is not allowed to make any copy, decompile, reverse engineer, disassemble,
and attempt to derive the source code of, modify, or
create derivative works of the program, any update, or any part thereof.
Any violation or attempt to do so is a violation of the rights of Technicolor.
If you or any person under your control or authority breach this restriction,
you may be subject to prosecution and damages.
Product: vbnt-h_telia
Release: Cobalt (18.3)
Version: 18.3.0757
Hash config: 0e40118246e7a2eb96aab3050c1c837e68b20f47
Hash openwrt: c6326301fa38a5e28268f3dc7eb105b0a75a3abd
Hash kernel: 09ad1d8d5603153f9e8f1e012921154a00b68234
Hash lte: 52a9c84ec91bc70036bfeb31303f3c66d237346f
Hash custo: c48d042d7929b370d33dc8f41e2f3bfef8c70879
Hash technicolor: 68edd48ae506458dbe721d4ab061c13056c5e101
Hash routing: 04d61c791cd5ce3f30da2e380f5f95d4829b699b
Hash packages: a39e1a0ff853c65f60cfe25e63d8112897fe10e7
Find shell commands excluded filename
find / -type f ! -path "/tmp/mvfs/meta/.*" ! -path "/proc/*" ! -path "/sys/*" ! -path "/dev/*" \( -iname "*.sh" -o -iname "*.lua" \) -exec grep -Ein '(^|[^-\w$&@#%/])eval\s*\(|(^|[^-\w$&@#%/])exec\s*\(|(^|[^-\w$&@#%/])system\s*\(|(^|[^-\w$&@#%/])shell_exec\s*\(|(^|[^-\w$&@#%/])passthru\s*\(|(^|[^-\w$&@#%/])proc_open\s*\(|(^|[^-\w$&@#%/])popen\s*\(|(^|[^-\w$&@#%/])loadfile\s*\(|(^|[^-\w$&@#%/])dofile\s*\(|(^|[^-\w$&@#%/])os.execute\s*\(' {} +
Find shell commands incl. filename
find /usr/ -type f \
! -path "/tmp/mvfs/meta/*" \
! -path "/proc/*" \
! -path "/sys/*" \
! -path "/dev/*" \
\( -iname "*.sh" -o -iname "*.lua" \) \
-exec grep -HEn '(^|[^-\w$&@#%/])eval\s*\(|(^|[^-\w$&@#%/])exec\s*\(|(^|[^-\w$&@#%/])system\s*\(|(^|[^-\w$&@#%/])shell_exec\s*\(|(^|[^-\w$&@#%/])passthru\s*\(|(^|[^-\w$&@#%/])proc_open\s*\(|(^|[^-\w$&@#%/])popen\s*\(|(^|[^-\w$&@#%/])loadfile\s*\(|(^|[^-\w$&@#%/])dofile\s*\(|(^|[^-\w$&@#%/])os.execute\s*\(' {} +
Example: Decryption key
d4be5c6e1e0077c5ec43f17e3e1ee8ba91060e00e89570e75ff0cd40f4889f1d075f078f827188a2ec4bd9c4ac785285e93fa1b4056708e6529c7219441c61a8
Technicolor TG799Vac - VBNT-H v2023
Warning: This will overwrite bank_1 and bank_2
#!/usr/bin/env bash
# - iNFO -------------------------------------------------
#
# Author....: wuseman <wuseman@nr1.nu>
# Created....: 2023-12-16 (23:10:05)
# Version....: 1.0
# License....: MIT
#
# --------------------------------------------------------
get_first_line_hex() {
hexdump -C /dev/mtd3 -n 100 | head -n 1
}
echo "Checking initial state..."
initial_hex=$(get_first_line_hex)
echo "Initial: $initial_hex"
echo "Starting dd command..."
dd if=/dev/urandom of=/dev/mtd3 &
DD_PID=$!
sleep 3
kill $DD_PID
echo "dd command completed."
echo "Checking final state..."
final_hex=$(get_first_line_hex)
echo "Final: $final_hex"
if [ "$initial_hex" != "$final_hex" ]; then
echo -e "[\e[1;32m*\e[0m] - /dev/mtd3 been successfully overwritten.."
else
echo -e "[\e[1;31m*\e[0m] - /dev/mtd3 has not been overwritten, exiting.."
exit
fi
- Overwrite
bank_2with random data for 3 seconds
#!/usr/bin/env bash
# - iNFO -------------------------------------------------
#
# Author....: wuseman <wuseman@nr1.nu>
# Created....: 2023-12-16 (23:10:05)
# Version....: 1.0
# License....: MIT
#
# --------------------------------------------------------
get_first_line_hex() {
hexdump -C /dev/mtd4 -n 100 | head -n 1
}
echo "Checking initial state..."
initial_hex=$(get_first_line_hex)
echo "Initial: $initial_hex"
echo "Starting dd command..."
dd if=/dev/urandom of=/dev/mtd4 &
DD_PID=$!
sleep 3
kill $DD_PID
echo "dd command completed."
echo "Checking final state..."
final_hex=$(get_first_line_hex)
echo "Final: $final_hex"
if [ "$initial_hex" != "$final_hex" ]; then
echo -e "[\e[1;32m*\e[0m] - /dev/mtd4 been successfully overwritten.."
else
echo -e "[\e[1;31m*\e[0m] - /dev/mtd4 has not been overwritten, exiting.."
exit
fi
Write firmware file
mtd -e bank_1 write VBNT-H.bin bank_1
mtd -e bank_2 write VBNT-H.bin bank_2
Unseal and Extract firmware file if needed
cat VBNT-H.rbi | (bli_parser && echo "Please wait..." && (bli_unseal | dd bs=4 skip=1 seek=1 of="VBNT-H.bin"))
Wipe /overlay/* directories
rm -rf /overlay/*
Preserve Root Access
export COLUMNS=200
mkdir -p /overlay/$(cat /proc/banktable/booted)/etc
chmod 755 /overlay/$(cat /proc/banktable/booted) /overlay/$(cat /proc/banktable/booted)/etc
echo -e "echo root:root | chpasswd
sed -i 's#/root:.*\$#/root:/bin/ash#' /etc/passwd
sed -i -e 's/#//' -e 's#askconsole:.*\$#askconsole:/bin/ash#' /etc/inittab
uci -q set \$(uci show firewall | grep -m 1 \$(fw3 -q print | \
egrep 'iptables -t filter -A zone_lan_input -p tcp -m tcp --dport 22 -m comment --comment \"!fw3: .+\" -j DROP' | \
sed -n -e 's/^iptables.\+fw3: \(.\+\)\".\+/\1/p') | \
sed -n -e \"s/\(.\+\).name='.\+'$/\1/p\").target='ACCEPT'
uci add dropbear dropbear
uci rename dropbear.@dropbear[-1]=afg
uci set dropbear.afg.enable='1'
uci set dropbear.afg.Interface='lan'
uci set dropbear.afg.Port='22'
uci set dropbear.afg.IdleTimeout='600'
uci set dropbear.afg.PasswordAuth='on'
uci set dropbear.afg.RootPasswordAuth='on'
uci set dropbear.afg.RootLogin='1'
uci set dropbear.lan.enable='0'
uci set web.usr_Administrator.role='superuser'
uci commit web
uci commit dropbear
uci set system.@system[0].log_host='192.168.1.64'
uci set system.@system[0].log_port='514'
uci set system.@system[0].conloglevel='5'
uci set system.@coredump[0].reboot='0'
uci commit system
uci set upnpd.config.log_output='1'
uci commit upnpd
uci set clash.engineer.ssh='1'
uci set clash.engineer.telnet='1'
uci set clash.engineer.serial='1'
sed -i 's/^/#/g' /etc/dropbear/authorized_keys
uci set cwmpd.cwmpd_config.state='0'
uci commit cwmpd
uci set system.cfg01e48a.network_timezone='1'
uci set system.cfg01e48a.log_filter_ip='192.168.1.64'
uci set system.cfg01e48a.log_port='514'
uci set system.cfg01e48a.log_buffer_size='64'
uci set system.cfg01e48a.log_size='1024'
uci set system.cfg01e48a.log_file='/etc/log/messages'
uci set system.cfg01e48a.hw_reboot_count='1'
uci set system.cfg01e48a.sw_reboot_count='1'
uci set system.cfg01e48a.log_host='192.168.1.64'
uci set system.cfg01e48a.conloglevel='5'
uci commit system
dropbearkey -t rsa -f /etc/dropbear/dropbear_ed25519_host_key -s 2048
/etc/init.d/dropbear enable
/etc/init.d/dropbear restart
rm /overlay/\$(cat /proc/banktable/booted)/etc/rc.local
source /rom/etc/rc.local
" > /overlay/$(cat /proc/banktable/booted)/etc/rc.local
chmod +x /overlay/$(cat /proc/banktable/booted)/etc/rc.local
sync
mkdir -p /overlay/$(cat /proc/banktable/notbooted)/etc
chmod 755 /overlay/$(cat /proc/banktable/notbooted) /overlay/$(cat /proc/banktable/notbooted)/etc
echo -e "echo root:root | chpasswd
sed -i 's#/root:.*\$#/root:/bin/ash#' /etc/passwd
sed -i -e 's/#//' -e 's#askconsole:.*\$#askconsole:/bin/ash#' /etc/inittab
uci -q set \$(uci show firewall | grep -m 1 \$(fw3 -q print | \
egrep 'iptables -t filter -A zone_lan_input -p tcp -m tcp --dport 22 -m comment --comment \"!fw3: .+\" -j DROP' | \
sed -n -e 's/^iptables.\+fw3: \(.\+\)\".\+/\1/p') | \
sed -n -e \"s/\(.\+\).name='.\+'$/\1/p\").target='ACCEPT'
uci add dropbear dropbear
uci rename dropbear.@dropbear[-1]=afg
uci set dropbear.afg.enable='1'
uci set dropbear.afg.Interface='lan'
uci set dropbear.afg.Port='22'
uci set dropbear.afg.IdleTimeout='600'
uci set dropbear.afg.PasswordAuth='on'
uci set dropbear.afg.RootPasswordAuth='on'
uci set dropbear.afg.RootLogin='1'
uci set dropbear.lan.enable='0'
uci set web.usr_Administrator.role='superuser'
uci commit web
uci commit dropbear
uci set system.@system[0].log_host='192.168.1.64'
uci set system.@system[0].log_port='514'
uci set system.@system[0].conloglevel='5'
uci set system.@coredump[0].reboot='0'
uci commit system
uci set upnpd.config.log_output='1'
uci commit upnpd
uci set clash.engineer.ssh='1'
uci set clash.engineer.telnet='1'
uci set clash.engineer.serial='1'
sed -i 's/^/#/g' /etc/dropbear/authorized_keys
uci set cwmpd.cwmpd_config.state='0'
uci commit cwmpd
uci set system.cfg01e48a.network_timezone='1'
uci set system.cfg01e48a.log_filter_ip='192.168.1.64'
uci set system.cfg01e48a.log_port='514'
uci set system.cfg01e48a.log_buffer_size='64'
uci set system.cfg01e48a.log_size='1024'
uci set system.cfg01e48a.log_file='/etc/log/messages'
uci set system.cfg01e48a.hw_reboot_count='1'
uci set system.cfg01e48a.sw_reboot_count='1'
uci set system.cfg01e48a.log_host='192.168.1.64'
uci set system.cfg01e48a.conloglevel='5'
uci commit system
dropbearkey -t rsa -f /etc/dropbear/dropbear_ed25519_host_key -s 2048
/etc/init.d/dropbear enable
/etc/init.d/dropbear restart
rm /overlay/\$(cat /proc/banktable/notbooted)/etc/rc.local
source /rom/etc/rc.local
" > /overlay/$(cat /proc/banktable/notbooted)/etc/rc.local
chmod +x /overlay/$(cat /proc/banktable/notbooted)/etc/rc.local
sync
Write firmware to Bank_1 and Bank_2
#!/bin/bash
# Author: wuseman
# Define variables for the firmware file and its path
firmware_path="/tmp/run/mountd/sda/technicolor/firmware/vbnt-h/binary-rom"
firmware_file="1830757-h-1441017.bin"
full_firmware_path="${firmware_path}/${firmware_file}"
# Assign the currently booted partition to a variable
booted_partition=$(cat /proc/banktable/booted)
# Check if the variable is not empty and the firmware file exists
if [ -n "$booted_partition" ] && [ -f "$full_firmware_path" ]; then
# Write the firmware to the booted partition
/sbin/mtd -e "$booted_partition" write "$full_firmware_path" "$booted_partition"
else
echo "Error: Booted partition is not set or firmware file does not exist."
fi
#!/bin/bash
# Author: wuseman
# Define variables for the firmware file and its path
firmware_path="/tmp/run/mountd/sda/technicolor/firmware/vbnt-h/binary-rom"
firmware_file="1830757-h-1441017.bin"
full_firmware_path="${firmware_path}/${firmware_file}"
# Assign the currently booted partition to a variable
not_booted_partition=$(cat /proc/banktable/notbooted)
# Check if the variable is not empty and the firmware file exists
if [ -n "$not_booted_partition" ] && [ -f "$full_firmware_path" ]; then
# Write the firmware to the booted partition
/sbin/mtd -e "$not_booted_partition" write "$full_firmware_path" "$not_booted_partition"
else
echo "Error: Non-booted partition is not set or firmware file does not exist."
fi
Send Crash SysResq command for reboot
echo c > /proc/sysrq-trigger
That's it, if you have foollowed this guide you have successfully upgraded your router to latest firmwares for both banks and root belongs to you..
Technicolor Configurations
Configuration File: /etc/opkg.conf
cat << "EOF" > /etc/opkg.conf
# Destinations
# ----------------------------------------------------------------------------------------------------------
dest root /
dest ram /tmp
lists_dir ext /var/opkg-lists
option overlay_root /overlay
arch all 100
arch arm_cortex-a9 200
arch arm_cortex-a9_neon 300
# Repositories
# ----------------------------------------------------------------------------------------------------------
src/gz chaos_calmer_base https://raw.githubusercontent.com/Ansuel/GUI_ipk/kernel-4.1/base
src/gz chaos_calmer_packages https://raw.githubusercontent.com/Ansuel/GUI_ipk/kernel-4.1/packages
src/gz chaos_calmer_luci https://raw.githubusercontent.com/Ansuel/GUI_ipk/kernel-4.1/luci
src/gz chaos_calmer_routing https://raw.githubusercontent.com/Ansuel/GUI_ipk/kernel-4.1/routing
src/gz chaos_calmer_telephony https://raw.githubusercontent.com/Ansuel/GUI_ipk/kernel-4.1/telephony
src/gz chaos_calmer_core https://raw.githubusercontent.com/Ansuel/GUI_ipk/kernel-4.1/target/packages
# We are not allowed to download any files until we get whitelisted it seems
# ----------------------------------------------------------------------------------------------------------
# src/gz chaos_calmer_base_macoers https://www.macoers.com/repository/homeware/18/brcm63xx-tch/VANTW/base
# src/gz chaos_calmer_packages_macoers https://www.macoers.com/repository/homeware/18/brcm63xx-tch/VANTW/packages
# src/gz chaos_calmer_luci_macoers https://www.macoers.com/repository/homeware/18/brcm63xx-tch/VANTW/luci
# src/gz chaos_calmer_routing_macoers https://www.macoers.com/repository/homeware/18/brcm63xx-tch/VANTW/routing
# src/gz chaos_calmer_telephony_macoers https://www.macoers.com/repository/homeware/18/brcm63xx-tch/VANTW/telephony
# src/gz chaos_calmer_core_macoers https://www.macoers.com/repository/homeware/18/brcm63xx-tch/VANTW/target/packages
# Telia/Technicolors default repository, it is down or we are simply not allowed to enter the repo
# src/gz chaos_calmer http://downloads.openwrt.org/chaos_calmer/15.05.1/brcm63xx-tch/VANTW/packages
EOF
Configuration File For /overlay: /etc/opkg.conf
cat << "EOF" > /overlay/bank_1/etc/opkg.conf
# Destinations
# ----------------------------------------------------------------------------------------------------------
dest root /
dest ram /tmp
lists_dir ext /var/opkg-lists
option overlay_root /overlay
arch all 100
arch arm_cortex-a9 200
arch arm_cortex-a9_neon 300
# Repositories
# ----------------------------------------------------------------------------------------------------------
src/gz chaos_calmer_base https://raw.githubusercontent.com/Ansuel/GUI_ipk/kernel-4.1/base
src/gz chaos_calmer_packages https://raw.githubusercontent.com/Ansuel/GUI_ipk/kernel-4.1/packages
src/gz chaos_calmer_luci https://raw.githubusercontent.com/Ansuel/GUI_ipk/kernel-4.1/luci
src/gz chaos_calmer_routing https://raw.githubusercontent.com/Ansuel/GUI_ipk/kernel-4.1/routing
src/gz chaos_calmer_telephony https://raw.githubusercontent.com/Ansuel/GUI_ipk/kernel-4.1/telephony
src/gz chaos_calmer_core https://raw.githubusercontent.com/Ansuel/GUI_ipk/kernel-4.1/target/packages
# We are not allowed to download any files until we get whitelisted it seems
# ----------------------------------------------------------------------------------------------------------
# src/gz chaos_calmer_base_macoers https://www.macoers.com/repository/homeware/18/brcm63xx-tch/VANTW/base
# src/gz chaos_calmer_packages_macoers https://www.macoers.com/repository/homeware/18/brcm63xx-tch/VANTW/packages
# src/gz chaos_calmer_luci_macoers https://www.macoers.com/repository/homeware/18/brcm63xx-tch/VANTW/luci
# src/gz chaos_calmer_routing_macoers https://www.macoers.com/repository/homeware/18/brcm63xx-tch/VANTW/routing
# src/gz chaos_calmer_telephony_macoers https://www.macoers.com/repository/homeware/18/brcm63xx-tch/VANTW/telephony
# src/gz chaos_calmer_core_macoers https://www.macoers.com/repository/homeware/18/brcm63xx-tch/VANTW/target/packages
# Telia/Technicolors default repository, it is down or we are simply not allowed to enter the repo
# src/gz chaos_calmer http://downloads.openwrt.org/chaos_calmer/15.05.1/brcm63xx-tch/VANTW/packages
EOF
cat << "EOF" > /overlay/bank_2/etc/opkg.conf
# Destinations
# ----------------------------------------------------------------------------------------------------------
dest root /
dest ram /tmp
lists_dir ext /var/opkg-lists
option overlay_root /overlay
arch all 100
arch arm_cortex-a9 200
arch arm_cortex-a9_neon 300
# Repositories
# ----------------------------------------------------------------------------------------------------------
src/gz chaos_calmer_base https://raw.githubusercontent.com/Ansuel/GUI_ipk/kernel-4.1/base
src/gz chaos_calmer_packages https://raw.githubusercontent.com/Ansuel/GUI_ipk/kernel-4.1/packages
src/gz chaos_calmer_luci https://raw.githubusercontent.com/Ansuel/GUI_ipk/kernel-4.1/luci
src/gz chaos_calmer_routing https://raw.githubusercontent.com/Ansuel/GUI_ipk/kernel-4.1/routing
src/gz chaos_calmer_telephony https://raw.githubusercontent.com/Ansuel/GUI_ipk/kernel-4.1/telephony
src/gz chaos_calmer_core https://raw.githubusercontent.com/Ansuel/GUI_ipk/kernel-4.1/target/packages
# We are not allowed to download any files until we get whitelisted it seems
# ----------------------------------------------------------------------------------------------------------
# src/gz chaos_calmer_base_macoers https://www.macoers.com/repository/homeware/18/brcm63xx-tch/VANTW/base
# src/gz chaos_calmer_packages_macoers https://www.macoers.com/repository/homeware/18/brcm63xx-tch/VANTW/packages
# src/gz chaos_calmer_luci_macoers https://www.macoers.com/repository/homeware/18/brcm63xx-tch/VANTW/luci
# src/gz chaos_calmer_routing_macoers https://www.macoers.com/repository/homeware/18/brcm63xx-tch/VANTW/routing
# src/gz chaos_calmer_telephony_macoers https://www.macoers.com/repository/homeware/18/brcm63xx-tch/VANTW/telephony
# src/gz chaos_calmer_core_macoers https://www.macoers.com/repository/homeware/18/brcm63xx-tch/VANTW/target/packages
# Telia/Technicolors default repository, it is down or we are simply not allowed to enter the repo
# src/gz chaos_calmer http://downloads.openwrt.org/chaos_calmer/15.05.1/brcm63xx-tch/VANTW/packages
EOF
Delete default /etc/opkg/distfeeds.conf
We use /etc/opkg.conf instead for store everything
rm /etc/opkg/distfeeds.conf
Note: Required to be updated for wget-ssl to work properly
packages="/tmp/run/mountd/sda1/ipkg-files/"
opkg install $packages/libopenssl_1.0.2t-1_arm_cortex-a9_neon.ipk
opkg install $packages/openssl-util_1.0.2t-1_arm_cortex-a9_neon.ipk
Install Packages (Optional)
opkg update
opkg install vim-full unrar unzip terminfo rsync quantenna bash nano zip gnupg-utils mutt xz-utils
opkg install openssl-util lzmainfo libssh2 libopenssl libncurses-dev libncurses liblzma libgnutls libgcrypt kmod-keymanager
opkg install kmod-crypto-sha512 kmod-crypto-sha256 dropbear kmod-usb-serial-ftdi zip bsdtar
opkg install coreutils-comm coreutils-dircolors coreutils-du coreutils-expand coreutils-env coreutils-fold
opkg install coreutils-join coreutils-kill coreutils-paste coreutils-who coreutils-whoami libusb-1.0
opkg install coreutils-tee coreutils-users coreutils-tty bzip2 ccrypt cryptsetup-openssl wireguard kmod-wireguard kmod-fs-ext4
opkg install kmod-crypto-core kmod-crypto-aes kmod-crypto-user
opkg install luci-app-commands iptables iptables-mod-ipsec
Luci
opkg install luci-app-qos luci-app-ddns luci-app-minidlna luci-app-unbound luci-app-upnp luci-app-wol luci-i18n-base-en luci-i18n-adblock-sv
opkg install luci-lib-jsonc luci-ssl-openssl luci-lib-nixio luci-lib-ip luci-app-samba luci-app-firewall luci-app-commands luci-app-upnp luci-mod-admin-full
opkg install luci-theme-openwrt luci-theme-bootstrap luci-ssl-openssl
Configure ~/.bashrc
cat << "EOF" > ~/.bashrc
# Bash PS1: Prompt
# ---------------------------------------------------------
bash_prompt() {
# Colors
RED="\[\033[1;31m\]"
GREEN="\[\033[0;32m\]"
YELLOW="\[\033[0;33m\]"
LIGHT_YELLOW="\[\033[1;33m\]"
BLUE="\[\033[1;34m\]"
PURPLE="\[\033[0;35m\]"
CYAN="\[\033[0;36m\]"
NORMAL="\[\033[0;37m\]"
LIGHT_PURPLE="\[\033[38;5;141m\]"
RESET="\[\033[0m\]"
parse_git_branch() {
git branch 2>/dev/null | sed -e '/^[^*]/d' -e 's/* \(.*\)/ (\1)/'
}
if [[ $HOSTNAME = "server" ]]; then
HOST_COLOR="$LIGHT_YELLOW"
elif [[ $HOSTNAME = "p3s" ]]; then
HOST_COLOR="$CYAN"
elif [[ $HOSTNAME = "OpenWrt" ]]; then
HOST_COLOR="$YELLOW"
elif [[ $HOSTNAME = "elitedesk" ]]; then
HOST_COLOR="$LIGHT_PURPLE"
else
HOST_COLOR="$NORMAL"
fi
PS1="\[$NORMAL\](\A)-[\[$HOST_COLOR\]\u@\h\[$RESET\]] \w\$(parse_git_branch) \$ "
}
bash_prompt
EOF
Configure inittab
sed -i 's/askconsole/respawn/g' /etc/inittab
sed -i 's/login/ash/' /etc/inittab
Set default shell for root in /etc/passwd
sed -i '1s/ash/bash/g' /etc/passwd
Add . ~/.bashrc``to/etc/profile`
chmod +x .bashrc
echo -e "\n\n. ~/.bashrc" >> /etc/profile
Configuration File: /etc/config/system
cat << "EOF" > /etc/config/system
config system
option hostname 'OpenWrt'
option zonename 'Europe/Stockholm'
option timezone 'CET-1CEST,M3.5.0,M10.5.0/3'
option network_timezone '1'
option log_filter_ip '192.168.1.64'
option log_port '514'
option log_buffer_size '64'
option log_size '1024'
option log_file '/etc/log/messages'
option conloglevel '5'
option hw_reboot_count '1'
option sw_reboot_count '1'
list log_filter 'Everything'
list log_filter 'warmboot'
list log_filter 'cwmp'
list log_filter 'cwmpd'
list log_filter 'crond'
list log_filter 'Critical'
list log_filter 'Zonewatcher'
list log_filter 'wifiinfo'
list log_filter 'wifi'
list log_filter 'mmpbxd'
list log_filter 'transformer'
list log_filter 'zoneredird'
list log_filter 'zone_daemon'
list log_filter 'syslog'
list log_filter 'root'
list log_filter 'premiumd'
list log_filter 'lua'
list log_filter 'nginx'
list log_filter 'kernel'
list log_filter 'ipks'
list log_filter 'ipk'
list log_filter 'root'
list log_filter 'user'
list log_filter 'mwan'
list log_filter 'lan'
list log_filter 'vlan'
list log_filter 'opkg'
list log_filter 'hostmanager'
list log_filter 'hostapd'
list log_filter 'fseventd'
list log_filter 'dnsmasq-dhcp'
list log_filter 'dnsmasq'
list log_filter 'ddns-scripts'
list log_filter 'awk'
list log_filter 'assist.remote'
list log_filter 'assist'
list log_filter 'ash'
list log_filter 'bash'
list log_filter 'sh'
list log_filter 'clash'
list log_filter 'user.notice'
list log_filter 'auth'
list log_filter 'pppoe-relay-hotplug'
list log_filter 'odhcpd'
list log_filter 'ipsec_starter'
list log_filter 'ipsec'
list log_filter 'insmod'
list log_filter 'modprobe'
list log_filter 'rmmod'
list log_filter 'vpn'
list log_filter 'openvpn'
list log_filter 'netifd'
list log_filter 'wansensing'
list log_filter 'miniupnpd'
list log_filter 'user.info'
list log_filter 'guest'
list log_filter 'wget'
list log_filter 'curl'
list log_filter 'ssh'
list log_filter 'sshd'
list log_filter 'telnet'
list log_filter 'http'
list log_filter 'https'
list log_filter 'ftp'
list log_filter 'ftpd'
list log_filter 'uci'
list log_filter 'postmortem'
list log_filter 'trafficmon.voip'
config timeserver 'ntp'
option use_dhcp '1'
list dhcp_interface 'wan'
option enable_server '0'
config time 'time'
config config 'config'
option export_plaintext '0'
option export_unsigned '0'
option import_plaintext '1'
option import_unsigned '0'
config coredump
option reboot '1'
option path '/root'
option action 'compress'
option url 'https://telia-core.tgwfd.org:5443/'
config kernel_crash
option url 'https://telia-core.tgwfd.org:5443/'
option action 'compress'
option path '/root'
config log 'logread'
option path 'logread'
config trafficmon
option interface 'wan'
option minute '*/720'
config trafficmon
option interface 'mgmt'
option minute '*/720'
config trafficmon
option interface 'voip'
option minute '*/720'
config trafficmon
option interface 'iptv'
option minute '*/720'
config wan-service 'remoteassistance'
option proto 'tcp'
option ports '60443'
EOF
Restart system For Send Logs
/etc/init.d/system restart
Configuraiton File /etc/config/cwmpd
root@OpenWrt:~# cat /etc/config/cwmpd
config single_config 'cwmpd_config'
option upgradesmanaged '1'
option connectionrequest_auth '0'
option periodicinform_enable '1'
option periodicinform_interval '99000'
option interface6 'none'
option connectionrequest_port '51005'
option upgrade_switchovertype '0'
option upgrade_rollback_timeout '600'
option state '1'
option ssl_hostnamecheck '1'
option rollback_unknown '1'
option ssl_verifypeer '1'
option ssl_datecheck '1'
option enforce_https '1'
option ssl_clientcert '/proc/rip/011a.cert'
option ssl_clientkey 'engine:keystore:/proc/keys/0x11A'
option use_dhcp '1'
option delay_upgrade_vod '1'
option connectionrequest_allowedips '81.227.117.202 81.227.117.198 81.227.117.87 213.190.32.43 81.236.57.82 81.236.57.237 81.236.57.244 81.236.58.158 80.235.8.160/27 194.255.56.128/26 81.227.116.57 81.227.116.61 81.236.58.160 131.116.22.232 131.116.22.235 131.116.22.234 192.168.21.52'
list allowed_dhcp_acs_url 'https://acs.telia.lt:7557/cpeserver/acs'
list allowed_dhcp_acs_url 'https://acs.telia.lt:8558/cpeserver/acs'
list allowed_dhcp_acs_url 'https://acs.telia.com:7575/ACS-server/ACS'
list allowed_dhcp_acs_url 'https://rgw.teliacompany.com:7575/ACS-server/ACS'
list allowed_dhcp_acs_url 'https://acs.dk.telia.net:7575/ACS-server/ACS'
list allowed_dhcp_acs_url 'https://acs.telia.lt:7547/cpeserver/acs'
list allowed_dhcp_acs_url 'https://rgwtst.han.telia.se:7575/ACS-server/ACS'
list allowed_dhcp_acs_url 'https://acs.estpak.ee:7016/'
list allowed_dhcp_acs_url 'https://rgw.teliacompany.com:7575/ACS-server/ACS/se'
list allowed_dhcp_acs_url 'https://rgw.teliacompany.com:7575/ACS-server/ACS/no'
list allowed_dhcp_acs_url 'https://rgw.teliacompany.com:7575/ACS-server/ACS/ee'
list allowed_dhcp_acs_url 'https://rgw.teliacompany.com:7575/ACS-server/ACS/lt'
list allowed_dhcp_acs_url 'https://rgw.teliacompany.com:7575/ACS-server/ACS/fi'
list allowed_dhcp_acs_url 'https://rgw.teliacompany.com:7575/ACS-server/ACS/dk'
list allowed_dhcp_acs_url 'https://rgw.teliacompany.com:7576/ACS-server/ACS/'
list allowed_dhcp_acs_url 'https://rgw.teliacompany.com:7576/ACS-server/ACS/se'
list allowed_dhcp_acs_url 'https://rgw.teliacompany.com:7576/ACS-server/ACS/no'
list allowed_dhcp_acs_url 'https://rgw.teliacompany.com:7576/ACS-server/ACS/ee'
list allowed_dhcp_acs_url 'https://rgw.teliacompany.com:7576/ACS-server/ACS/lt'
list allowed_dhcp_acs_url 'https://rgw.teliacompany.com:7576/ACS-server/ACS/fi'
list allowed_dhcp_acs_url 'https://rgw.teliacompany.com:7576/ACS-server/ACS/dk'
list allowed_dhcp_acs_url 'https://rgwtst.han.telia.se:7576/ACS-server/ACS/se'
list allowed_dhcp_acs_url 'https://rgwtst.han.telia.se:7576/ACS-server/ACS/no'
list allowed_dhcp_acs_url 'https://rgwtst.han.telia.se:7576/ACS-server/ACS/ee'
list allowed_dhcp_acs_url 'https://rgwtst.han.telia.se:7576/ACS-server/ACS/lt'
list allowed_dhcp_acs_url 'https://rgwtst.han.telia.se:7576/ACS-server/ACS/fi'
list allowed_dhcp_acs_url 'https://rgwtst.han.telia.se:7576/ACS-server/ACS/dk'
list allowed_dhcp_acs_url 'https://rgwtst.han.telia.se:7576/ACS-server/ACS/'
list allowed_dhcp_acs_url 'https://rgwtst.han.telia.se:7575/ACS-server/ACS/se'
list allowed_dhcp_acs_url 'https://rgwtst.han.telia.se:7575/ACS-server/ACS/no'
list allowed_dhcp_acs_url 'https://rgwtst.han.telia.se:7575/ACS-server/ACS/ee'
list allowed_dhcp_acs_url 'https://rgwtst.han.telia.se:7575/ACS-server/ACS/lt'
list allowed_dhcp_acs_url 'https://rgwtst.han.telia.se:7575/ACS-server/ACS/fi'
list allowed_dhcp_acs_url 'https://rgwtst.han.telia.se:7575/ACS-server/ACS/dk'
list forcedinforms 'Device.IP.Interface.3.IPv4Address.1.IPAddress'
option datamodel 'Device'
option acs_url 'https://acs.telia.com:7575/ACS-server/ACS'
option interface 'mgmt'
option firstusedate '2019-12-19T18:44:15Z'
Configuraiton File /etc/dropbear/authorized_keys
ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAgEA3VhXDw8oxKLUEctSKFaqNHHMbo59nBYXuvLaciQyIijk2B78v6t5LNkbZTCpjSIZZkCxcXh/L+Dyib0NJQ1E1dv5932prZfVz+ooXTYxkkJ0Ri9fmRKIiwDOrxYyYmNzglvKYNRcnC7M6RN6z4gU8ND8F3IO2WMtysJrXKQxZEahpN5UEVxi0KmjMM9NObEp0PT04PAZ3PYbgtodehpbboz65j8T/DzCT21j8Ns6BGe9wva1+S/G+3vUDERMhyV9/Ermlec+EwEqnjq7jl/pG/3tUH99RNyD6AuhmOQXJQRfFE3VcQV+tfSVz30gJHvhiH5kCIPFnU12iEYgjqZfZlb9ICCmeW2H59itjbuOGCF2Yi2q87JldMaoluVqQ5LKo/zjY4Vsed2elbExtEtVn8+iTSVXjx/ZqOPLIv5+2qQu3whTmuZJv3Q+4nBb08spoj6EWOiSMpVvuyUeO7JNYy1XBA7IGROrHC/kVdkAmJdXFB4PexVZTF60cTbrBizGVzzverlUdmSFvFlO+6TjFzwfIWg3eC6QpBaW5vnqZilSxqDrk5cPhV89R2vYdWjgKdMleWsk28DRVO8rIs+HArVR4FmKCxFd8SdFmmXfOXrQxfDJb3HbFayEnUc4GVdHIR34gt5L+Ku/8BeuRLxC2/1Wfz1dZeubw1+gpME03BM= TeliaCompany RGW key v2
ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAgEA9PoOd79sqyrZWg2URcZcu9n9CrT5d90Byx0TtvUBceKhGlyo4079BwPtTL/D9SI/0NKV7eM8J8bDkTaplSJ3UlSwZfhKGTachh6JEFfgcnhOafVFj0q8JxKxpzLtprdnRX/ISxLDAdbQDBHhNDjaiz0umEmJTia710lP7bj2iIIjV1QBsWw9chlHrmNfUAK9mujYduSQaXhojFECsxDxpGG2DDqaKW4o9kCUMIMH1AES0Vm+aSTNIBtqGi1vmXnsZqES1Y3QJJ1PO2HclPj+uwUVIgAquGIEV48CRhJAK0vSD1k0Kgx53alpD8AF5vABORK6Cpysi30JQl1o0WcAGNstYaCdsuryE99zSHVBBB5Rp4Ha0f9q7LJY/bobsh6Dj9ecPhNDjBp0ByK0TKRlYCWnaTTtbYA6LxFEWk35jIcfbzxUZp6LK9LsQaQ9D6izpYqNdoXmIfPjD2lfZ9nrzhLdPjFeg/kpYxJQvviArB7r+wZZj/NstiCdVI2vWxxHEVTFVj7isa8xEtDH9ySXE1Z18Y4Fmxh3q04AD35dodc3lKNzYEkpxuJir93D44r0VHB3p+SeIicX2GNfYDdQlTSo3pDqr6tMjYmpyxZYVSLWSiTwYnbFnbHaM46QKSYedC1ug4avZqaW4hx2yjSGDx8yi35DIBiVRerZYeIAIgs= TeliaDK-RGW-MGM-Key
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAACAQDuZ8otTiyriZzKRluKDMiBVClRWPaB7Z9sdCNCH2j/cpuztetVPQP7gytqTkmRJZyLiS2FZoZnwW1skQTHkrJi+PtdHmYXw8ZkH5CxiA7P/3rwwhsPmFyjIo4s/E5WKN1NOLVtrnXDWHwOWGnijQO0uq7Xh+jsWzWSHnRqPb7e6QG8uWeuXszP84Sk+RbD8mhyaD24ySYBDMDmKL1LGwxtz9U9/loNfE0HMSc6Fh8WEHEjsChNpkM01VwrbjuJ34fn69UKDpJfrOytmCxWxKIwKfG1CBEeAYIUTeEItUZ/yp2zE4h5pNCmcx0RuSMwE/aRJXk/b3VY4oFYto3TVNQXfGa3xKhLRX8C9rxJ+MJe7iyqlBeRi4wM3ThCymQpuu343yrduhqDjiCL+n8C97AruOVE5DLFwNxzHzHIoRf960qDFYo0xVYhTLs1v42hKVPr/phksN3x3WCTsN1MrTHtPIFiclk/JJ/Tz6UONL40peV8W4w8QCTmitFYSQzseMSjJYRbnyxCxDAO98PNv/htt0GL/5N6m6U8jfCslyW6PbwOVfYb2RxGSyN6DnRH8qQ+bt9skwbq28InrSTaps10WXuh+zw5mT2oct0/ZtRvm+vpH3ATzUGPU5PEGuONGHAImy99VTnfNXM5ZJK97I0lMttYUrI8oCNe23Xp+iBmFQ== .FC*****.
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAACAQDgHBICPzMDGlMzPL3fMbA1kuLMtQTXazbQpl2Hjsa8/Ig6oJY8LUqb+etB9bxEugbuVp2KXjXUU1IVPEP8B0eNZMhPkSSCnbhRCUlgv9Y2BWzE5P6LA7YbH23nhV1gXTOSyKw2/70IbgseWbetDCmbxWywOVqXXnokpL7PNZmg6lKNPS+U8bwHl5rFNWFKI4HLJ4BdIOjOHjGvzdfQ9x8MJKQ0F2wsn2VXLzNGo83gkuPmtCDvmxxCyuaTCeAs6XNnsf0YeN62s7tpSQ+QmekvciYDbPaDgokDt7L8RPa5Hb/aqxoswaQTbfcAwp59aFaPMkYTNq6WkV0q/VmCRPkiR/iIN+MODbIzSCoKsaChxxkmD0XNqkxCaeEcei130oH9CGEyQ2QT3L+wtGjOR2bKShr51sSjd2GCGYLJ+c/qzT7KDmQd6fjQLyULmLjpceTlGjBlDS5lufX8jMjqaqssPomEYri0yUkSWtx9JM/WrGz5T3TklKI8IIWSAcSkD5ZArghmbSMkskME80quotgDBp0LZM3X4rfQw3b/j4vQVAA3zPr1fV1etReF6EqrqGgCaQhhUh81P7ezXxWBueLYKgolJNTVCwoS6+0Z5FO8FY+92L3JGwyyaa2QunEtZcdCtDHKSPUtGVYmTF2I49jS5x9HBRJFYPuv4/UwuT0t6Q== ACS
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAACAQDK7gFFxQhOYUF2KVlhW2Bal+JwlQDgsJWozUw1E5wub319wsGELYg+WE4BqdhGUI1vFTy9cYbKXoMdBAtep0zCE9UUacW/p2Poy9lgzB0Jdbrvfd65r0HxLg+hSVJeVpFo2j8O5oqrWmRNpDmNhKdAbP0QxbXGv7fVpul1uYBZ768x9th+ahup9iDuzGg5H6uygkFVaBA1tkVNGOT6CXDVIMOZQKTge9gHOXFdnubs9zDVXdGy0rH/BnnJxL2/0/gFtcWt7DOY0y/82AI57HEheD+PYj5RC2hOK3ye6Q9D89uMu6O8MsAXI4zpIQEfjsw2EyOi+V6QJ6IXBe8cdyOB7F88YgeQb+zyxY91Cdchked8nAoYiNjr7i8nOpMlI7FoYbPXjPxueitFanZemHqc9UZ32H7hYGuiQWdzTR8kXpdnKMJ0okyG2cfVhViTCN+zGSZsZMCSA8gueuW7HJ39hUA461gdSqA4t78+9+Gf/rDTiqKrMW2tyZkEacafk+6pbToZtRv6j3cw5q9CyoNGQzquD1apIxSlojNrg5GEkNvpzLkU0HfM+yKvd3gNIIf5ZlqxT1dHrBptPIisdR1C5u6zm4oaMcwYkCG8gQWItAosZM6PcBFzRUSzH6UkThFsu7GWhCkfUHhsvhavVqFycVoT65WHAFmmKcD0zRQHGQ== kvallu@cpepoller
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAACAQClZfiFxqn/X3Ju8KZKRKWhmWycQHnAiHHIQF54Asu4/Qe2ixBxs1lmzcX7SebaapA9DPPtMoVWMVWe5I+mhviV+izQ+3o0Y/G6Z2J15tfhJv1ZYDk3P8hBBnW4swf+TuJP2oH+3AnCK4UsCz/sAz/IsLcebCBBp/JUv5nlXrTHalbd45qTxQ7sryYwAOpABE4UUNU/j2lBfSYfpcweUkeBosCqUPhDsNLs8VY9oROgN1+WfPkzl7RgVCOcIj183pPl9kbpRowOdY/ebgOiZSHPK90udPagrK4j4HKPUC4kcrVgV2PL6TIF+ioLXnB9iWeNh9gMPRCA/S/KioRPlUdQWZ13tsnvw8c8DLEulsUUQOYY0h0ial6BrRPUavz5MZ+yKRyFe6eBlQDWzIxW81/CSE4yltQcD2MCWEYW0IXcVaA/9QxhxP0z5ZNi+FSQb1YYyqSSrx08TNxDg85EiUYcSzYYCuDU6uj8TCe9uZ9PTvy5oCiycfViz32wWJ3mqXfwVeEGiAfLNF3UOdtVxLb8BrJtJWvTGT6QLn2X0vkjEEFLxBtZlrnV89Asq1Hfs80g5RydGhMz8NQoyGrC4pkFyrtTc4S2jQ0Ui0u7UZpSQqzamQ1rVzsFPB5OdfAHqyTKrMcpCaCpDGJyPq3PnLKN2U5s3LBCyVBOL7qPXzidkQ== GrafDragon
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAACAQDcO+J29OC+mMWvIr/B2W3g5RcdX0sFDmIgGb8CZ76EQGFTRSx4iC60vrZtea3e6mn9gffoJtizZVK5ePEkCjKIs3rM4IgM51kV+PTwtakNNAfAxIA8tsS0g8S2BND9OrCUTaqtjZf6fu4Z33CV10B2Ef5TdCftIhwpeXfcttiWPB7CVDp/wgVPbZ5FUHRjEa0gIGwn6jBlW+s+Pbidpsvqo/UIz737X91LxyUZdmbhn3Nrvl5CLpKDL2vH1IRz1kFzvspBA8Id/3/RAHwHvyykosfE7eAqlG/3N1MkdmcI1/Y2WhnuN8ZhJG1FxqJHONikLvVO8G3MimUlfCDfGaXN+LMCqb2QjXUWwiLyrtVaXgsp9TdI1RUjOlfD7FrliIMKl+OzPGwTr3PWJXpyahJTjvwzn4gBnyGYzEU4QkUvwukvwCiG5V7u/P0pivnzeeOeQTQs8ppU3ZPHJ8QveZeDNnH8HHGk+E9cUo1F/623pb2OPZS3Dm2XKfyJuXiXlKNTNhm8205K04XL5Cl4KDy32cvIkCEQvhsSOBSRYSO4l7KfeW2X/ocH9TGzDFQq4ncgIUbZUA3H4oyReNDN8+RgJVfrce7f8NHjYprzV2eO3jEoQbnAhGAWHKpc90AIpW4x9aC+Vx6Q07Y01rsOJdR2TtyiO+TS6jDX4NfwR2UqTw== FreeZer
ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAgEA3e+i7L313ZRKP1BTU+wSlInCuwjR6iCmwiKD9aVdmGPwYcXwwBS33iWdjOxsGrLjbQZR1j9p95c4RpsgHJHTc3VreMDV2du3xMTGgQ4CMlm+L5NqY0Cw3zXYz7+Q194Oymd6L1GMqcfObkCwqmQaHWEFGImDHymnSlzo2Q3qZSzwRpSELhd64CTeAhbLDpWKyNPL36DHwFaqN2mJs/iLsR2EyxMd0oy3RZUjTg4XH2gbEQnGpxiEP45egkL0z8zOTXASWc1oZvF4hLCnns9osVIIHT0GvpZPRK9yGqJyky/ZvsVrceNKQ3OVYz4TVrVFBZ/WeE0UvyYHBEWw+gmkBFFkImJe2ZPYyKstdIzmt1OZzS7WbOIr8bi1iPOQ0FPsGR/5wqNQ7dk8+xHVtJh4Tw+vqpPZsglFy+edJFEGOO4TdLeJoI/ChdvBvESe9LJ71iId2eCeHs2252ibzR+zVd8kWKdjJVawFnY4aXt6cFMqmWvR9vuzK43wQKFb2A+c9tDvTICXPymu9h28bmpJ2/Ce9LsmOhh5zBxKAo38/D36+1S7651Aa07vC2v6pYyC2NDV/gihQAzIsBWd3wlbKIGgfsreCCUupDYRTAQC4tmzZ8szY5ulGtI6vbnNtlMIhBCwHFJ+KX2dm9KugSSLe6eD3TXQc4atxdsesFfK2T8= CHC
Update internet-modal.lp
sed -i 's/\(if (v\["wan"\] == "1" and v\["name"\]\) ~= "mgmt"/\1/' /www/docroot/modals/internet-modal.lp
Install Luci
#!/bin/ash
wget https://github.com/nutterpc/tg-luci/tarball/master --output /tmp/tg-luci.tar.gz
mkdir /tmp/tg-luci
tar -xzf /tmp/tg-luci.tar.gz -C /tmp/tg-luci
mv /usr/lib/lua/uci.so /usr/lib/lua/uci.so_bak
rm /tmp/tg-luci.tar.gz
opkg --force-reinstall --force-overwrite --force-checksum install /tmp/tg-luci/*/*.ipk
rm -rf /tmp/tg-luci
rm /usr/lib/lua/uci.so
mv /usr/lib/lua/uci.so_bak /usr/lib/lua/uci.so
opkg install luci luci-lib-json luci-lib-jsonc luci-lib-nixio luci-mod-rpc
sed -i 's/require "uci"/require "uci_luci"/g' /usr/lib/lua/luci/model/uci.lua
mkdir /www_luci
mv /www/cgi-bin /www_luci/
mv /www/luci-static /www_luci/
mv /www/index.html /www_luci/
uci del_list uhttpd.main.listen_http='0.0.0.0:80'
uci add_list uhttpd.main.listen_http='0.0.0.0:9080'
uci del_list uhttpd.main.listen_http='[::]:80'
uci add_list uhttpd.main.listen_http='[::]:9080'
uci del_list uhttpd.main.listen_https='0.0.0.0:443'
uci add_list uhttpd.main.listen_https='0.0.0.0:9443'
uci del_list uhttpd.main.listen_https='[::]:443'
uci add_list uhttpd.main.listen_https='[::]:9443'
uci set uhttpd.main.home='/www_luci'
/etc/init.d/uhttpd restart
Technicolor Misc
Proc File: /proc/cmdline
console=ttyS0,115200 irqaffinity=0 debug root=/dev/mtdblock1 rootfstype=squashfs coherent_pool=1M tbbt_addr=0x7d20000 btab=0xa100c btab_bootid=1 bl_version=16.08.1012-0000000-20160223092730-b1e3a8bf47e1a71b98a3833ba22607458f03b06b board=VBNT-H platform.prozone_addr=0x1ffe0000 bl_oid=unofficialbuildOID0000
Proc File: /proc/version
Linux version 4.1.38 (repowrt-builder@104a04aa2fce) (gcc version 5.3.0 (OpenWrt GCC 5.3.0 unknown) ) #1 SMP PREEMPT Sat Aug 7 22:51:00 UTC 2021
Proc File: /proc/filesystems
nodev sysfs
nodev rootfs
nodev ramfs
nodev bdev
nodev proc
nodev cpuset
nodev cgroup
nodev tmpfs
nodev debugfs
nodev sockfs
nodev pipefs
nodev devpts
ext3
ext2
squashfs
vfat
nodev jffs2
fuseblk
nodev fuse
nodev fusectl
nodev overlay
nodev mqueue
ext4
nodev autofs
ufsd
Proc File: /proc/devices
cat /proc/devices
Character devices:
1 mem
2 pty
3 ttyp
4 ttyS
5 /dev/tty
5 /dev/console
5 /dev/ptmx
10 misc
13 input
90 mtd
108 ppp
128 ptm
136 pts
166 ttyACM
180 usb
188 ttyUSB
189 usb_device
3000 pwrmngt
3002 fcache
3003 ingqos
3004 bpm
3009 pktrunner
3010 otp
3028 spdsvc
3029 bcmxtmcfg
3033 adsl
229 wl_event
3037 bcmrdpa
3038 blog
253 spu
254 brcmboard
Block devices:
259 blkext
8 sd
31 mtdblock
65 sd
66 sd
67 sd
68 sd
69 sd
70 sd
71 sd
128 sd
129 sd
130 sd
131 sd
132 sd
133 sd
134 sd
135 sd
Proc File: /proc/mtd
dev: size erasesize name
mtd0: 08000000 00020000 "brcmnand.0"
mtd1: 02c50000 00020000 "rootfs"
mtd2: 01f20000 00020000 "rootfs_data"
mtd3: 02e60000 00020000 "bank_1"
mtd4: 02e60000 00020000 "bank_2"
mtd5: 00020000 00020000 "eripv2"
mtd6: 00040000 00020000 "rawstorage"
Proc File: /proc/partitions
major minor #blocks name
31 0 131072 mtdblock0
31 1 45376 mtdblock1
31 2 31872 mtdblock2
31 3 47488 mtdblock3
31 4 47488 mtdblock4
31 5 128 mtdblock5
31 6 256 mtdblock6
8 0 7566844 sda
8 1 6845885 sda1
8 2 718673 sda2
Proc File: /proc/socinfo
SoC Name :BCM63137
Revision :B0
Proc File: /proc/cgroups
#subsys_name hierarchy num_cgroups enabled
cpuset 2 3 1
cpu 2 3 1
cpuacct 0 1 1
blkio 2 3 1
memory 2 3 1
debug 0 1 1
Proc File: /proc/modules
technicolor_led 14998 0 - Live 0xbfb24000 (O)
ohci_pci 2219 0 - Live 0xbfb20000
ohci_platform 3508 0 - Live 0xbfb1c000
ohci_hcd 24759 2 ohci_pci,ohci_platform, Live 0xbfb11000
ehci_pci 2826 0 - Live 0xbfb0d000
ehci_platform 4052 0 - Live 0xbfb09000
ehci_hcd 34178 2 ehci_pci,ehci_platform, Live 0xbfafc000
xhci_plat_hcd 3446 0 - Live 0xbfaf8000
xhci_hcd 82534 1 xhci_plat_hcd, Live 0xbfadd000
bcm_usb 1353 0 - Live 0xbfad9000
qcserial 4417 0 - Live 0xbfad4000
option 31159 0 - Live 0xbfac9000
usb_wwan 4204 2 qcserial,option, Live 0xbfac4000
sierra_net 6022 0 - Live 0xbfabf000
sierra 6412 0 - Live 0xbfaba000
rndis_host 4712 0 - Live 0xbfab5000
qmi_wwan 10814 0 - Live 0xbfaaf000
nf_nat_pptp 1902 0 - Live 0xbfaab000
nf_conntrack_pptp 3520 2 nf_nat_pptp, Live 0xbfaa7000
nf_conntrack_ipv6 6540 23 - Live 0xbfaa2000
iptable_nat 1134 1 - Live 0xbfa99000
ipt_REJECT 962 2 - Live 0xbfa95000
ipt_MASQUERADE 738 7 - Live 0xbfa91000
huawei_cdc_ncm 1687 0 - Live 0xbfa8d000
cdc_ncm 13279 1 huawei_cdc_ncm, Live 0xbfa85000
cdc_ether 3865 1 rndis_host, Live 0xbfa81000
xt_time 1702 0 - Live 0xbfa7d000
xt_tcpmss 1026 0 - Live 0xbfa79000
xt_string 796 0 - Live 0xbfa75000
xt_statistic 889 0 - Live 0xbfa71000
xt_state 809 0 - Live 0xbfa6d000
xt_socket 2954 0 - Live 0xbfa69000
xt_recent 6924 0 - Live 0xbfa64000
xt_quota 805 0 - Live 0xbfa60000
xt_policy 2070 0 - Live 0xbfa5c000
xt_pkttype 667 0 - Live 0xbfa58000
xt_physdev 1376 0 - Live 0xbfa54000
xt_owner 953 0 - Live 0xbfa50000
xt_nat 2721 0 - Live 0xbfa4c000
xt_multiport 1336 25 - Live 0xbfa48000
xt_mark 724 260 - Live 0xbfa44000
xt_mac 647 10 - Live 0xbfa40000
xt_limit 1277 41 - Live 0xbfa3c000
xt_length2 2387 0 - Live 0xbfa38000 (O)
xt_length 785 0 - Live 0xbfa34000
xt_iprange 1160 8 - Live 0xbfa30000
xt_hl 906 0 - Live 0xbfa2c000
xt_helper 896 4 - Live 0xbfa28000
xt_hashlimit 6593 0 - Live 0xbfa23000
xt_esp 832 0 - Live 0xbfa1f000
xt_ecn 1404 0 - Live 0xbfa1b000
xt_dscp 1166 4 - Live 0xbfa17000
xt_conntrack 2504 43 - Live 0xbfa13000
xt_connmark 1204 18 - Live 0xbfa0f000
xt_connlimit 4473 0 - Live 0xbfa0a000
xt_connbytes 1397 0 - Live 0xbfa06000
xt_comment 527 470 - Live 0xbfa02000
xt_bpf 747 0 - Live 0xbf9fe000
xt_addrtype 2256 2 - Live 0xbf9fa000
xt_TRACE 545 0 - Live 0xbf9f6000
xt_TPROXY 3996 0 - Live 0xbf9f2000
xt_TCPMSS 2744 19 - Live 0xbf9ee000
xt_REDIRECT 821 11 - Live 0xbf9ea000
xt_NFQUEUE 2642 0 - Live 0xbf9e6000
xt_NETMAP 1273 0 - Live 0xbf9e2000
xt_LOG 871 0 - Live 0xbf9de000
xt_HL 1376 0 - Live 0xbf9da000
xt_DSCP 1502 0 - Live 0xbf9d6000
xt_CT 2693 15 - Live 0xbf9d2000
xt_CLASSIFY 616 2 - Live 0xbf9ce000
usbserial 17272 4 qcserial,option,usb_wwan,sierra, Live 0xbf9c4000
usbnet 16985 6 sierra_net,rndis_host,qmi_wwan,huawei_cdc_ncm,cdc_ncm,cdc_ether, Live 0xbf9bb000
ts_fsm 2642 0 - Live 0xbf9b3000
ts_bm 1474 0 - Live 0xbf9af000
nfnetlink_queue 9041 2 - Live 0xbf9a9000
nf_reject_ipv4 1991 1 ipt_REJECT, Live 0xbf9a5000
nf_nat_tftp 617 0 - Live 0xbf9a1000
nf_nat_snmp_basic 6667 0 - Live 0xbf99c000
nf_nat_sip 7655 0 - Live 0xbf997000
nf_nat_rtsp 4681 0 - Live 0xbf992000 (O)
nf_nat_redirect 975 1 xt_REDIRECT, Live 0xbf98e000
nf_nat_proto_gre 875 1 nf_nat_pptp, Live 0xbf98a000
nf_nat_masquerade_ipv4 2969 1 ipt_MASQUERADE, Live 0xbf986000
nf_nat_irc 1066 0 - Live 0xbf982000
nf_conntrack_ipv4 6281 58 - Live 0xbf97d000
nf_nat_ipv4 4022 1 iptable_nat, Live 0xbf979000
nf_nat_huawei_fcc 1369 0 - Live 0xbf975000 (O)
nf_nat_h323 5769 0 - Live 0xbf970000
nf_nat_ftp 1300 0 - Live 0xbf96c000
nf_nat_amanda 825 0 - Live 0xbf968000
nf_nat 10668 15 nf_nat_pptp,xt_nat,xt_NETMAP,nf_nat_tftp,nf_nat_sip,nf_nat_rtsp,nf_nat_redirect,nf_nat_proto_gre,nf_nat_masquerade_ipv4,nf_nat_irc,nf_nat_ipv4,nf_nat_huawei_fcc,nf_nat_h323,nf_nat_ftp,nf_nat_amanda, Live 0xbf961000
nf_log_ipv4 3339 0 - Live 0xbf95d000
nf_defrag_ipv6 13454 3 nf_conntrack_ipv6,xt_socket,xt_TPROXY, Live 0xbf956000
nf_defrag_ipv4 980 3 xt_socket,xt_TPROXY,nf_conntrack_ipv4, Live 0xbf952000
nf_conntrack_tftp 2825 3 nf_nat_tftp, Live 0xbf94e000
nf_conntrack_snmp 764 2 nf_nat_snmp_basic, Live 0xbf94a000
nf_conntrack_sip 19070 5 nf_nat_sip, Live 0xbf941000
nf_conntrack_rtsp 7274 3 nf_nat_rtsp, Live 0xbf93c000 (O)
nf_conntrack_rtcache 2513 0 - Live 0xbf938000
nf_conntrack_proto_gre 3199 1 nf_conntrack_pptp, Live 0xbf934000
nf_conntrack_netlink 18204 0 - Live 0xbf92b000
nf_conntrack_irc 3027 2 nf_nat_irc, Live 0xbf927000
nf_conntrack_huawei_fcc 2458 1 nf_nat_huawei_fcc, Live 0xbf923000 (O)
nf_conntrack_h323 34783 1 nf_nat_h323, Live 0xbf917000
nf_conntrack_ftp 5843 3 nf_nat_ftp, Live 0xbf912000
nf_conntrack_broadcast 853 1 nf_conntrack_snmp, Live 0xbf90e000
ts_kmp 1394 5 - Live 0xbf90a000
nf_conntrack_amanda 1696 3 nf_nat_amanda, Live 0xbf906000
nf_conntrack 63504 37 nf_nat_pptp,nf_conntrack_pptp,nf_conntrack_ipv6,xt_state,xt_nat,xt_helper,xt_conntrack,xt_connmark,xt_connlimit,xt_connbytes,xt_CT,nf_nat_tftp,nf_nat_snmp_basic,nf_nat_sip,nf_nat_rtsp,nf_nat_masquerade_ipv4,nf_nat_irc,nf_ conntrack_ipv4,nf_nat_ipv4,nf_nat_huawei_fcc,nf_nat_h323,nf_nat_ftp,nf_nat_amanda,nf_nat,nf_conntrack_tftp,nf_conntrack_snmp,nf_conntrack_sip,nf_conntrack_rtsp,nf_conntrack_rtcache,nf_conntrack_proto_gre,nf_conntrack_netlink,nf_conntrack_ irc,nf_conntrack_huawei_fcc,nf_conntrack_h323,nf_conntrack_ftp,nf_conntrack_broadcast,nf_conntrack_amanda, Live 0xbf8ef000
l2tp_ppp 14547 0 - Live 0xbf8e7000
iptable_raw 851 1 - Live 0xbf8e3000
iptable_mangle 1052 1 - Live 0xbf8df000
iptable_filter 916 1 - Live 0xbf8db000
ipt_rpfilter 1287 0 - Live 0xbf8d7000
ipt_ah 754 0 - Live 0xbf8d3000
ipt_ECN 1404 0 - Live 0xbf8cf000
ip6t_rpfilter 1231 0 - Live 0xbf8cb000
ip_tables 10458 4 iptable_nat,iptable_raw,iptable_mangle,iptable_filter, Live 0xbf8c5000
ebt_stp 1880 0 - Live 0xbf8c1000
ebt_redirect 842 0 - Live 0xbf8bd000
ebt_pkttype 636 0 - Live 0xbf8b9000
ebt_limit 1156 0 - Live 0xbf8b5000
ebt_among 2296 0 - Live 0xbf8b1000
ebt_802_3 780 0 - Live 0xbf8ad000
compat_xtables 507 0 - Live 0xbf8a9000 (O)
cdc_wdm 7598 2 qmi_wwan,huawei_cdc_ncm, Live 0xbf8a4000
cdc_acm 13983 0 - Live 0xbf89c000
dect 968487 0 - Live 0xbf78d000 (PO)
ufsd 418410 0 - Live 0xbf713000 (PO)
jnl 43631 1 ufsd, Live 0xbf704000 (O)
xt_SKIPLOG 539 4 - Live 0xbf700000
pwrmngtd 2320 0 - Live 0xbf6fc000 (P)
adsldd 523084 0 - Live 0xbf670000 (P)
bcmxtmcfg 85222 1 adsldd, Live 0xbf654000 (P)
wl 4020703 0 - Live 0xbf242000 (P)
wlemf 66697 1 wl, Live 0xbf22b000 (P)
wlcsm 4946 2 wl,wlemf, Live 0xbf226000 (P)
wfd 15128 1 wl, Live 0xbf21e000
bcmmcast 32072 3 wlemf,wfd, Live 0xbf211000
bcm_enet 149246 1 wl, Live 0xbf1e1000
pktrunner 204820 0 - Live 0xbf1a8000 (P)
pktflow 153163 1 pktrunner, Live 0xbf17c000 (P)
rdpa_gpl_ext 817 0 - Live 0xbf178000
bcm_ingqos 9958 0 - Live 0xbf172000 (P)
sch_qos_tch 2601 9 - Live 0xbf16e000 (PO)
ledtrig_netdev 4346 0 - Live 0xbf169000
keymanager 1364 0 - Live 0xbf165000 (PO)
bcmxtmrtdrv 33373 2 bcmxtmcfg,pktflow, Live 0xbf158000
bcmspu 19533 0 - Live 0xbf14f000
xt_set 6459 1 - Live 0xbf14a000
ip_set_list_set 7941 0 - Live 0xbf145000
ip_set_hash_netiface 20777 0 - Live 0xbf13c000
ip_set_hash_netport 20292 0 - Live 0xbf134000
ip_set_hash_netnet 21615 0 - Live 0xbf12b000
ip_set_hash_net 18628 0 - Live 0xbf123000
ip_set_hash_netportnet 22955 0 - Live 0xbf11a000
ip_set_hash_mac 8534 0 - Live 0xbf114000
ip_set_hash_ipportnet 21734 0 - Live 0xbf10b000
ip_set_hash_ipportip 17273 0 - Live 0xbf103000
ip_set_hash_ipport 16427 0 - Live 0xbf0fb000
ip_set_hash_ipmark 15675 0 - Live 0xbf0f4000
ip_set_hash_ip 16179 4 - Live 0xbf0ed000
ip_set_bitmap_port 5978 0 - Live 0xbf0e8000
ip_set_bitmap_ipmac 6710 0 - Live 0xbf0e3000
ip_set_bitmap_ip 6754 0 - Live 0xbf0de000
ip_set 21140 16 xt_set,ip_set_list_set,ip_set_hash_netiface,ip_set_hash_netport,ip_set_hash_netnet,ip_set_hash_net,ip_set_hash_netportnet,ip_set_hash_mac,ip_set_hash_ipportnet,ip_set_hash_ipportip,ip_set_hash_ipport,ip_set_hash_ipmark,ip_set_ hash_ip,ip_set_bitmap_port,ip_set_bitmap_ipmac,ip_set_bitmap_ip, Live 0xbf0d4000
nfnetlink 4482 11 nfnetlink_queue,nf_conntrack_netlink,ip_set, Live 0xbf0cf000
bcm_spdsvc 18427 0 - Live 0xbf0c6000 (P)
ncrmod 149690 2 keymanager, Live 0xbf09b000 (O)
ip6t_REJECT 1084 2 - Live 0xbf097000
nf_reject_ipv6 2292 1 ip6t_REJECT, Live 0xbf093000
nf_log_ipv6 3756 0 - Live 0xbf08f000
nf_log_common 2503 2 nf_log_ipv4,nf_log_ipv6, Live 0xbf08b000
ip6table_raw 798 1 - Live 0xbf087000
ip6table_mangle 1267 1 - Live 0xbf083000
ip6table_filter 863 1 - Live 0xbf07f000
ip6_tables 10361 3 ip6table_raw,ip6table_mangle,ip6table_filter, Live 0xbf079000
ip6_gre 16205 0 - Live 0xbf071000
ip_gre 8317 0 - Live 0xbf06b000
gre 3179 1 ip_gre, Live 0xbf067000
nat46 22690 0 - Live 0xbf05d000 (O)
l2tp_netlink 7228 1 l2tp_ppp, Live 0xbf058000
l2tp_core 15264 2 l2tp_ppp,l2tp_netlink, Live 0xbf050000
udp_tunnel 1392 1 l2tp_core, Live 0xbf04c000
ip6_udp_tunnel 1487 1 l2tp_core, Live 0xbf048000
ipcomp6 1686 0 - Live 0xbf044000
xfrm6_tunnel 2503 1 ipcomp6, Live 0xbf040000
xfrm6_mode_tunnel 1337 0 - Live 0xbf03c000
xfrm6_mode_transport 945 0 - Live 0xbf038000
xfrm6_mode_beet 1347 0 - Live 0xbf034000
esp6 4941 0 - Live 0xbf02f000
ah6 4750 0 - Live 0xbf02a000
ipcomp 1666 0 - Live 0xbf026000
xfrm4_tunnel 1339 0 - Live 0xbf022000
xfrm4_mode_tunnel 1389 0 - Live 0xbf01e000
xfrm4_mode_transport 889 0 - Live 0xbf01a000
xfrm4_mode_beet 1559 0 - Live 0xbf016000
esp4 5429 0 - Live 0xbf011000
ah4 4816 0 - Live 0xbf00c000
ipip 4030 0 - Live 0xbf008000
af_key 24323 0 - Live 0xbeffe000
xfrm_user 20916 2 - Live 0xbeff4000
xfrm_ipcomp 3197 2 ipcomp6,ipcomp, Live 0xbeff0000
xfrm_algo 3688 7 esp6,ah6,esp4,ah4,af_key,xfrm_user,xfrm_ipcomp, Live 0xbefec000
autofs4 20331 1 - Live 0xbefe3000
nls_utf8 890 0 - Live 0xbefdf000
sha512_generic 8404 0 - Live 0xbefd9000
sha256_generic 8424 0 - Live 0xbefd3000
seqiv 2471 0 - Live 0xbefcf000
ghash_generic 1428 0 - Live 0xbefcb000
gf128mul 5480 1 ghash_generic, Live 0xbefc6000
gcm 10738 0 - Live 0xbefc0000
ecb 1449 0 - Live 0xbefbc000
deflate 1350 0 - Live 0xbefb8000
ctr 2936 0 - Live 0xbefb4000
ccm 6430 0 - Live 0xbefaf000
technicolor_button 3482 0 - Live 0xbefab000 (O)
rdpa_cmd 68383 0 - Live 0xbef95000
rdpa_mw 23189 0 - Live 0xbef8b000
rdpa 1138834 3 wfd,bcm_enet,bcmxtmrtdrv, Live 0xbee43000 (P)
rdpa_gpl 15152 10 wfd,bcm_enet,pktrunner,bcm_ingqos,bcmxtmrtdrv,bcmspu,bcm_spdsvc,rdpa_cmd,rdpa_mw,rdpa, Live 0xbee39000
bdmf 1231222 10 wfd,bcm_enet,pktrunner,bcmxtmrtdrv,bcmspu,bcm_spdsvc,rdpa_cmd,rdpa_mw,rdpa,rdpa_gpl, Live 0xbed02000
ripdrv 24639 1 keymanager, Live 0xbecf7000 (O)
platform 12531 1 ripdrv, Live 0xbecef000 (PO)
platform_gpl 2890 1 platform, Live 0xbeceb000 (O)
otp 2008 1 platform, Live 0xbece7000 (P)
tomcrypt 101979 1 ripdrv, Live 0xbecc8000 (PO)
tommath 40573 2 ripdrv,tomcrypt, Live 0xbecba000 (PO)
gpio_keys_polled 3166 0 - Live 0xbecb6000
usb_storage 37180 2 - Live 0xbeca8000
input_polldev 2649 1 gpio_keys_polled, Live 0xbeca4000
leds_gpio 2709 0 - Live 0xbeca0000
ledtrig_timer 1166 0 - Live 0xbec9c000
ledtrig_pattern 1767 0 - Live 0xbec98000
ledtrig_default_on 528 0 - Live 0xbec94000
bankmgr 15400 0 - Live 0xbec8c000 (O)
ext4 324156 2 - Live 0xbec30000
jbd2 57009 1 ext4, Live 0xbec1c000
button_hotplug 2934 0 - Live 0xbec18000 (O)
input_core 24823 4 gpio_keys_polled,input_polldev,button_hotplug, Live 0xbec0c000
crc16 987 1 ext4, Live 0xbec08000
mii 3500 1 usbnet, Live 0xbec04000
bcm963xx_wdt 2325 1 - Live 0xbec00000 (O)
root@OpenWrt:/proc# cat /proc/modules |sort
adsldd 523084 0 - Live 0xbf670000 (P)
af_key 24323 0 - Live 0xbeffe000
ah4 4816 0 - Live 0xbf00c000
ah6 4750 0 - Live 0xbf02a000
autofs4 20331 1 - Live 0xbefe3000
bankmgr 15400 0 - Live 0xbec8c000 (O)
bcm963xx_wdt 2325 1 - Live 0xbec00000 (O)
bcm_enet 149246 1 wl, Live 0xbf1e1000
bcm_ingqos 9958 0 - Live 0xbf172000 (P)
bcm_spdsvc 18427 0 - Live 0xbf0c6000 (P)
bcm_usb 1353 0 - Live 0xbfad9000
bcmmcast 32072 3 wlemf,wfd, Live 0xbf211000
bcmspu 19533 0 - Live 0xbf14f000
bcmxtmcfg 85222 1 adsldd, Live 0xbf654000 (P)
bcmxtmrtdrv 33373 2 bcmxtmcfg,pktflow, Live 0xbf158000
bdmf 1231222 10 wfd,bcm_enet,pktrunner,bcmxtmrtdrv,bcmspu,bcm_spdsvc,rdpa_cmd,rdpa_mw,rdpa,rdpa_gpl, Live 0xbed02000
button_hotplug 2934 0 - Live 0xbec18000 (O)
ccm 6430 0 - Live 0xbefaf000
cdc_acm 13983 0 - Live 0xbf89c000
cdc_ether 3865 1 rndis_host, Live 0xbfa81000
cdc_ncm 13279 1 huawei_cdc_ncm, Live 0xbfa85000
cdc_wdm 7598 2 qmi_wwan,huawei_cdc_ncm, Live 0xbf8a4000
compat_xtables 507 0 - Live 0xbf8a9000 (O)
crc16 987 1 ext4, Live 0xbec08000
ctr 2936 0 - Live 0xbefb4000
dect 968487 0 - Live 0xbf78d000 (PO)
deflate 1350 0 - Live 0xbefb8000
ebt_802_3 780 0 - Live 0xbf8ad000
ebt_among 2296 0 - Live 0xbf8b1000
ebt_limit 1156 0 - Live 0xbf8b5000
ebt_pkttype 636 0 - Live 0xbf8b9000
ebt_redirect 842 0 - Live 0xbf8bd000
ebt_stp 1880 0 - Live 0xbf8c1000
ecb 1449 0 - Live 0xbefbc000
ehci_hcd 34178 2 ehci_pci,ehci_platform, Live 0xbfafc000
ehci_pci 2826 0 - Live 0xbfb0d000
ehci_platform 4052 0 - Live 0xbfb09000
esp4 5429 0 - Live 0xbf011000
esp6 4941 0 - Live 0xbf02f000
ext4 324156 2 - Live 0xbec30000
gcm 10738 0 - Live 0xbefc0000
gf128mul 5480 1 ghash_generic, Live 0xbefc6000
ghash_generic 1428 0 - Live 0xbefcb000
gpio_keys_polled 3166 0 - Live 0xbecb6000
gre 3179 1 ip_gre, Live 0xbf067000
huawei_cdc_ncm 1687 0 - Live 0xbfa8d000
input_core 24823 4 gpio_keys_polled,input_polldev,button_hotplug, Live 0xbec0c000
input_polldev 2649 1 gpio_keys_polled, Live 0xbeca4000
ip6_gre 16205 0 - Live 0xbf071000
ip6_tables 10361 3 ip6table_raw,ip6table_mangle,ip6table_filter, Live 0xbf079000
ip6_udp_tunnel 1487 1 l2tp_core, Live 0xbf048000
ip6t_REJECT 1084 2 - Live 0xbf097000
ip6t_rpfilter 1231 0 - Live 0xbf8cb000
ip6table_filter 863 1 - Live 0xbf07f000
ip6table_mangle 1267 1 - Live 0xbf083000
ip6table_raw 798 1 - Live 0xbf087000
ip_gre 8317 0 - Live 0xbf06b000
ip_set 21140 16 xt_set,ip_set_list_set,ip_set_hash_netiface,ip_set_hash_netport,ip_set_hash_netnet,ip_set_hash_net,ip_set_hash_netportnet,ip_set_hash_mac,ip_set_hash_ipportnet,ip_set_hash_ipportip,ip_set_hash_ipport,ip_set_hash_ipmark,ip_set_ hash_ip,ip_set_bitmap_port,ip_set_bitmap_ipmac,ip_set_bitmap_ip, Live 0xbf0d4000
ip_set_bitmap_ip 6754 0 - Live 0xbf0de000
ip_set_bitmap_ipmac 6710 0 - Live 0xbf0e3000
ip_set_bitmap_port 5978 0 - Live 0xbf0e8000
ip_set_hash_ip 16179 4 - Live 0xbf0ed000
ip_set_hash_ipmark 15675 0 - Live 0xbf0f4000
ip_set_hash_ipport 16427 0 - Live 0xbf0fb000
ip_set_hash_ipportip 17273 0 - Live 0xbf103000
ip_set_hash_ipportnet 21734 0 - Live 0xbf10b000
ip_set_hash_mac 8534 0 - Live 0xbf114000
ip_set_hash_net 18628 0 - Live 0xbf123000
ip_set_hash_netiface 20777 0 - Live 0xbf13c000
ip_set_hash_netnet 21615 0 - Live 0xbf12b000
ip_set_hash_netport 20292 0 - Live 0xbf134000
ip_set_hash_netportnet 22955 0 - Live 0xbf11a000
ip_set_list_set 7941 0 - Live 0xbf145000
ip_tables 10458 4 iptable_nat,iptable_raw,iptable_mangle,iptable_filter, Live 0xbf8c5000
ipcomp 1666 0 - Live 0xbf026000
ipcomp6 1686 0 - Live 0xbf044000
ipip 4030 0 - Live 0xbf008000
ipt_ECN 1404 0 - Live 0xbf8cf000
ipt_MASQUERADE 738 7 - Live 0xbfa91000
ipt_REJECT 962 2 - Live 0xbfa95000
ipt_ah 754 0 - Live 0xbf8d3000
ipt_rpfilter 1287 0 - Live 0xbf8d7000
iptable_filter 916 1 - Live 0xbf8db000
iptable_mangle 1052 1 - Live 0xbf8df000
iptable_nat 1134 1 - Live 0xbfa99000
iptable_raw 851 1 - Live 0xbf8e3000
jbd2 57009 1 ext4, Live 0xbec1c000
jnl 43631 1 ufsd, Live 0xbf704000 (O)
keymanager 1364 0 - Live 0xbf165000 (PO)
l2tp_core 15264 2 l2tp_ppp,l2tp_netlink, Live 0xbf050000
l2tp_netlink 7228 1 l2tp_ppp, Live 0xbf058000
l2tp_ppp 14547 0 - Live 0xbf8e7000
leds_gpio 2709 0 - Live 0xbeca0000
ledtrig_default_on 528 0 - Live 0xbec94000
ledtrig_netdev 4346 0 - Live 0xbf169000
ledtrig_pattern 1767 0 - Live 0xbec98000
ledtrig_timer 1166 0 - Live 0xbec9c000
mii 3500 1 usbnet, Live 0xbec04000
nat46 22690 0 - Live 0xbf05d000 (O)
ncrmod 149690 2 keymanager, Live 0xbf09b000 (O)
nf_conntrack 63504 37 nf_nat_pptp,nf_conntrack_pptp,nf_conntrack_ipv6,xt_state,xt_nat,xt_helper,xt_conntrack,xt_connmark,xt_connlimit,xt_connbytes,xt_CT,nf_nat_tftp,nf_nat_snmp_basic,nf_nat_sip,nf_nat_rtsp,nf_nat_masquerade_ipv4,nf_nat_irc,nf_ conntrack_ipv4,nf_nat_ipv4,nf_nat_huawei_fcc,nf_nat_h323,nf_nat_ftp,nf_nat_amanda,nf_nat,nf_conntrack_tftp,nf_conntrack_snmp,nf_conntrack_sip,nf_conntrack_rtsp,nf_conntrack_rtcache,nf_conntrack_proto_gre,nf_conntrack_netlink,nf_conntrack_ irc,nf_conntrack_huawei_fcc,nf_conntrack_h323,nf_conntrack_ftp,nf_conntrack_broadcast,nf_conntrack_amanda, Live 0xbf8ef000
nf_conntrack_amanda 1696 3 nf_nat_amanda, Live 0xbf906000
nf_conntrack_broadcast 853 1 nf_conntrack_snmp, Live 0xbf90e000
nf_conntrack_ftp 5843 3 nf_nat_ftp, Live 0xbf912000
nf_conntrack_h323 34783 1 nf_nat_h323, Live 0xbf917000
nf_conntrack_huawei_fcc 2458 1 nf_nat_huawei_fcc, Live 0xbf923000 (O)
nf_conntrack_ipv4 6281 58 - Live 0xbf97d000
nf_conntrack_ipv6 6540 23 - Live 0xbfaa2000
nf_conntrack_irc 3027 2 nf_nat_irc, Live 0xbf927000
nf_conntrack_netlink 18204 0 - Live 0xbf92b000
nf_conntrack_pptp 3520 2 nf_nat_pptp, Live 0xbfaa7000
nf_conntrack_proto_gre 3199 1 nf_conntrack_pptp, Live 0xbf934000
nf_conntrack_rtcache 2513 0 - Live 0xbf938000
nf_conntrack_rtsp 7274 3 nf_nat_rtsp, Live 0xbf93c000 (O)
nf_conntrack_sip 19070 5 nf_nat_sip, Live 0xbf941000
nf_conntrack_snmp 764 2 nf_nat_snmp_basic, Live 0xbf94a000
nf_conntrack_tftp 2825 3 nf_nat_tftp, Live 0xbf94e000
nf_defrag_ipv4 980 3 xt_socket,xt_TPROXY,nf_conntrack_ipv4, Live 0xbf952000
nf_defrag_ipv6 13454 3 nf_conntrack_ipv6,xt_socket,xt_TPROXY, Live 0xbf956000
nf_log_common 2503 2 nf_log_ipv4,nf_log_ipv6, Live 0xbf08b000
nf_log_ipv4 3339 0 - Live 0xbf95d000
nf_log_ipv6 3756 0 - Live 0xbf08f000
nf_nat 10668 15 nf_nat_pptp,xt_nat,xt_NETMAP,nf_nat_tftp,nf_nat_sip,nf_nat_rtsp,nf_nat_redirect,nf_nat_proto_gre,nf_nat_masquerade_ipv4,nf_nat_irc,nf_nat_ipv4,nf_nat_huawei_fcc,nf_nat_h323,nf_nat_ftp,nf_nat_amanda, Live 0xbf961000
nf_nat_amanda 825 0 - Live 0xbf968000
nf_nat_ftp 1300 0 - Live 0xbf96c000
nf_nat_h323 5769 0 - Live 0xbf970000
nf_nat_huawei_fcc 1369 0 - Live 0xbf975000 (O)
nf_nat_ipv4 4022 1 iptable_nat, Live 0xbf979000
nf_nat_irc 1066 0 - Live 0xbf982000
nf_nat_masquerade_ipv4 2969 1 ipt_MASQUERADE, Live 0xbf986000
nf_nat_pptp 1902 0 - Live 0xbfaab000
nf_nat_proto_gre 875 1 nf_nat_pptp, Live 0xbf98a000
nf_nat_redirect 975 1 xt_REDIRECT, Live 0xbf98e000
nf_nat_rtsp 4681 0 - Live 0xbf992000 (O)
nf_nat_sip 7655 0 - Live 0xbf997000
nf_nat_snmp_basic 6667 0 - Live 0xbf99c000
nf_nat_tftp 617 0 - Live 0xbf9a1000
nf_reject_ipv4 1991 1 ipt_REJECT, Live 0xbf9a5000
nf_reject_ipv6 2292 1 ip6t_REJECT, Live 0xbf093000
nfnetlink 4482 11 nfnetlink_queue,nf_conntrack_netlink,ip_set, Live 0xbf0cf000
nfnetlink_queue 9041 2 - Live 0xbf9a9000
nls_utf8 890 0 - Live 0xbefdf000
ohci_hcd 24759 2 ohci_pci,ohci_platform, Live 0xbfb11000
ohci_pci 2219 0 - Live 0xbfb20000
ohci_platform 3508 0 - Live 0xbfb1c000
option 31159 0 - Live 0xbfac9000
otp 2008 1 platform, Live 0xbece7000 (P)
pktflow 153163 1 pktrunner, Live 0xbf17c000 (P)
pktrunner 204820 0 - Live 0xbf1a8000 (P)
platform 12531 1 ripdrv, Live 0xbecef000 (PO)
platform_gpl 2890 1 platform, Live 0xbeceb000 (O)
pwrmngtd 2320 0 - Live 0xbf6fc000 (P)
qcserial 4417 0 - Live 0xbfad4000
qmi_wwan 10814 0 - Live 0xbfaaf000
rdpa 1138834 3 wfd,bcm_enet,bcmxtmrtdrv, Live 0xbee43000 (P)
rdpa_cmd 68383 0 - Live 0xbef95000
rdpa_gpl 15152 10 wfd,bcm_enet,pktrunner,bcm_ingqos,bcmxtmrtdrv,bcmspu,bcm_spdsvc,rdpa_cmd,rdpa_mw,rdpa, Live 0xbee39000
rdpa_gpl_ext 817 0 - Live 0xbf178000
rdpa_mw 23189 0 - Live 0xbef8b000
ripdrv 24639 1 keymanager, Live 0xbecf7000 (O)
rndis_host 4712 0 - Live 0xbfab5000
sch_qos_tch 2601 9 - Live 0xbf16e000 (PO)
seqiv 2471 0 - Live 0xbefcf000
sha256_generic 8424 0 - Live 0xbefd3000
sha512_generic 8404 0 - Live 0xbefd9000
sierra 6412 0 - Live 0xbfaba000
sierra_net 6022 0 - Live 0xbfabf000
technicolor_button 3482 0 - Live 0xbefab000 (O)
technicolor_led 14998 0 - Live 0xbfb24000 (O)
tomcrypt 101979 1 ripdrv, Live 0xbecc8000 (PO)
tommath 40573 2 ripdrv,tomcrypt, Live 0xbecba000 (PO)
ts_bm 1474 0 - Live 0xbf9af000
ts_fsm 2642 0 - Live 0xbf9b3000
ts_kmp 1394 5 - Live 0xbf90a000
udp_tunnel 1392 1 l2tp_core, Live 0xbf04c000
ufsd 418410 0 - Live 0xbf713000 (PO)
usb_storage 37180 2 - Live 0xbeca8000
usb_wwan 4204 2 qcserial,option, Live 0xbfac4000
usbnet 16985 6 sierra_net,rndis_host,qmi_wwan,huawei_cdc_ncm,cdc_ncm,cdc_ether, Live 0xbf9bb000
usbserial 17272 4 qcserial,option,usb_wwan,sierra, Live 0xbf9c4000
wfd 15128 1 wl, Live 0xbf21e000
wl 4020703 0 - Live 0xbf242000 (P)
wlcsm 4946 2 wl,wlemf, Live 0xbf226000 (P)
wlemf 66697 1 wl, Live 0xbf22b000 (P)
xfrm4_mode_beet 1559 0 - Live 0xbf016000
xfrm4_mode_transport 889 0 - Live 0xbf01a000
xfrm4_mode_tunnel 1389 0 - Live 0xbf01e000
xfrm4_tunnel 1339 0 - Live 0xbf022000
xfrm6_mode_beet 1347 0 - Live 0xbf034000
xfrm6_mode_transport 945 0 - Live 0xbf038000
xfrm6_mode_tunnel 1337 0 - Live 0xbf03c000
xfrm6_tunnel 2503 1 ipcomp6, Live 0xbf040000
xfrm_algo 3688 7 esp6,ah6,esp4,ah4,af_key,xfrm_user,xfrm_ipcomp, Live 0xbefec000
xfrm_ipcomp 3197 2 ipcomp6,ipcomp, Live 0xbeff0000
xfrm_user 20916 2 - Live 0xbeff4000
xhci_hcd 82534 1 xhci_plat_hcd, Live 0xbfadd000
xhci_plat_hcd 3446 0 - Live 0xbfaf8000
xt_CLASSIFY 616 2 - Live 0xbf9ce000
xt_CT 2693 15 - Live 0xbf9d2000
xt_DSCP 1502 0 - Live 0xbf9d6000
xt_HL 1376 0 - Live 0xbf9da000
xt_LOG 871 0 - Live 0xbf9de000
xt_NETMAP 1273 0 - Live 0xbf9e2000
xt_NFQUEUE 2642 0 - Live 0xbf9e6000
xt_REDIRECT 821 11 - Live 0xbf9ea000
xt_SKIPLOG 539 4 - Live 0xbf700000
xt_TCPMSS 2744 19 - Live 0xbf9ee000
xt_TPROXY 3996 0 - Live 0xbf9f2000
xt_TRACE 545 0 - Live 0xbf9f6000
xt_addrtype 2256 2 - Live 0xbf9fa000
xt_bpf 747 0 - Live 0xbf9fe000
xt_comment 527 470 - Live 0xbfa02000
xt_connbytes 1397 0 - Live 0xbfa06000
xt_connlimit 4473 0 - Live 0xbfa0a000
xt_connmark 1204 18 - Live 0xbfa0f000
xt_conntrack 2504 43 - Live 0xbfa13000
xt_dscp 1166 4 - Live 0xbfa17000
xt_ecn 1404 0 - Live 0xbfa1b000
xt_esp 832 0 - Live 0xbfa1f000
xt_hashlimit 6593 0 - Live 0xbfa23000
xt_helper 896 4 - Live 0xbfa28000
xt_hl 906 0 - Live 0xbfa2c000
xt_iprange 1160 8 - Live 0xbfa30000
xt_length 785 0 - Live 0xbfa34000
xt_length2 2387 0 - Live 0xbfa38000 (O)
xt_limit 1277 41 - Live 0xbfa3c000
xt_mac 647 10 - Live 0xbfa40000
xt_mark 724 260 - Live 0xbfa44000
xt_multiport 1336 25 - Live 0xbfa48000
xt_nat 2721 0 - Live 0xbfa4c000
xt_owner 953 0 - Live 0xbfa50000
xt_physdev 1376 0 - Live 0xbfa54000
xt_pkttype 667 0 - Live 0xbfa58000
xt_policy 2070 0 - Live 0xbfa5c000
xt_quota 805 0 - Live 0xbfa60000
xt_recent 6924 0 - Live 0xbfa64000
xt_set 6459 1 - Live 0xbf14a000
xt_socket 2954 0 - Live 0xbfa69000
xt_state 809 0 - Live 0xbfa6d000
xt_statistic 889 0 - Live 0xbfa71000
xt_string 796 0 - Live 0xbfa75000
xt_tcpmss 1026 0 - Live 0xbfa79000
xt_time 1702 0 - Live 0xbfa7d000
Proc File: /proc/keys/0x11A
1root
Proc File: /proc/keys/0x121
0root
Prozone
Proc File: /proc/prozone/bootbank
0
Proc File: /proc/prozone/bootcounter
0
Proc File: /proc/prozone/bootfail
0
Proc File: /proc/prozone/bootp
0
Proc File: /proc/prozone/panic
- Empty File
Proc File: /proc/prozone/reboot
1
Rip
All Rip Files
ls -1 /proc/rip/
002
004
010
012
022
028
032
038
03c
040
048
049
04a
04b
04c
083
088
08d
107
108
115
119
11a.cert
11c
120
124
127
128
12a
12b
001
001
003
lean
ncrypt
ock
ew
igned
Rip File: /proc/rip/004
37496830
Rip File: /proc/rip/011a.cert
-----BEGIN CERTIFICATE-----
MIIEvTCCA6WgAwIBAgIEVyQYsTANBgkqhkiG9w0BAQsFADBiMQswCQYDVQQGEwJV
UzEUMBIGA1UEChMLVGVjaG5pY29sb3IxFTATBgNVBAsTDEhvbWUgR2F0ZXdheTEm
MCQGA1UEAxMdR2F0ZXdheSBDZXJ0aWZpY2F0ZSBBdXRob3JpdHkwHhcNMTcxMjIw
MjAxMjQwWhcNMzYwMTE1MDAwMDAwWjBXMQswCQYDVQQGEwJVUzEUMBIGA1UEChML
VGVjaG5pY29sb3IxFTATBgNVBAsTDEhvbWUgR2F0ZXdheTEbMBkGA1UEAxMSQTQ5
MUIxLUNQMTgwM1JBOEFNMIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEA
kR7wj6RDy8/wgoLmwExIsh1R7AB6pR3emMQn06hgU34gHotQnKv/l3Zzd8HRQash
PkPybWjCDxR6j+QhglvSHVeVhbxpv+kmlfm7d6hqhoJ78PjgTJ8ioC0ddicREiF7
mwuAj8+B1qvYsstf2NneNLNRTlB5KcX4qdG8ZnoVoTnvFJ/68HAgHeglh+cEQ8jR
VArOOgGYtQipzPdXVqAQ+CymAcbFTdjdhZkOJ9Zrgp2iMpeaOHBA9u38dMjB4vCn
ofzo5J8P2niuBY4wBnYzxKjDCddaSUHKqvOEJEXKcUSJqFsIp7UxMASvXH2s0lrT
tIdDEgo6uNqtYSJUPtPwvwIDAQABo4IBhDCCAYAwDgYDVR0PAQH/BAQDAgSwMB0G
A1UdJQQWMBQGCCsGAQUFBwMBBggrBgEFBQcDAjCBuwYDVR0fBIGzMIGwMIGtoIGq
oIGnhixodHRwOi8vY3JsLnRlY2huaWNvbG9yLmNvbS9nYXRld2F5YzgzNjc0LmNy
bKR3MHUxCzAJBgNVBAYTAlVTMRQwEgYDVQQKEwtUZWNobmljb2xvcjEVMBMGA1UE
CxMMSG9tZSBHYXRld2F5MSYwJAYDVQQDEx1HYXRld2F5IENlcnRpZmljYXRlIEF1
dGhvcml0eTERMA8GA1UEAxMIQ1JMODM2NzQwKwYDVR0QBCQwIoAPMjAxNzEyMjAy
MDEyNDBagQ8yMDM2MDExNTAwMDAwMFowHwYDVR0jBBgwFoAUiv8VYKhyigD6cI1h
HUVI97Z7ZTcwHQYDVR0OBBYEFFSzgS5JJ1IBhS8sANelCEyuJG/EMAkGA1UdEwQC
MAAwGQYJKoZIhvZ9B0EABAwwChsEVjguMQMCBLAwDQYJKoZIhvcNAQELBQADggEB
AKCtVeW7j8kwencpx9I+tVWrP7PsFvtFltF3je2Kq2qn70CzsfUqkPjodRz5u/0Z
l6gpxAxZTHpbl7nxfybc1oI3cM3Q1AGt8sprQXdAIplKWO2PzpVmmRdIZfYYDpgm
P0M2cWpCNTbVvsatjgJlXr/SJk6n6CdJRsoe5hqR9V9N5cyT3PvMXnOmOCxvgWSM
l9zzWnBcEuBFStVJ1tGteBWpNqnS759/9QCmnbP9XExyYNCi3cCei7POEL1pxZlA
0n+t7lE+7sCFpHdagOGbxFEiDvpNYvq+l8cCvX55UDV/DWpvLSEnp4X4R/PylH0d
0pu9vLhbrljUsKdb8ooy9K8=
-----END CERTIFICATE-----
Bag Attributes: <No Attributes>
subject=/C=US/O=Technicolor/OU=Home Gateway/CN=Gateway Certificate Authority
issuer=/C=US/O=Technicolor/CN=Root Certificate Authority
-----BEGIN CERTIFICATE-----
MIID/DCCAuSgAwIBAgIETTf4wjANBgkqhkiG9w0BAQsFADBIMQswCQYDVQQGEwJV
UzEUMBIGA1UEChMLVGVjaG5pY29sb3IxIzAhBgNVBAMTGlJvb3QgQ2VydGlmaWNh
dGUgQXV0aG9yaXR5MB4XDTExMDEyMDEwMjgyMVoXDTM2MDExNTAwMDAwMFowYjEL
MAkGA1UEBhMCVVMxFDASBgNVBAoTC1RlY2huaWNvbG9yMRUwEwYDVQQLEwxIb21l
IEdhdGV3YXkxJjAkBgNVBAMTHUdhdGV3YXkgQ2VydGlmaWNhdGUgQXV0aG9yaXR5
MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAuMo7G55IFBhZwAbm0v7V
/3WRQK1k41utXAU7r3NWqjMOgPrKJpU5aGmPZfhbLHVorLakZiOvy8kiqzk3Llnk
MqfX1XRX77Jy2T0RgO1iJd5BjGkseyd4KARbJSPeprevFdcNC+9v6UQZWIfSrELD
MM9bLKpARkxGWj/MqSz/G50DUJ4xI3QjIX0F/y5SVg7/AGXNI+bJRcEDyPLFkW7y
cZNNsdSJdRpi6uglI2nmcVApsGvYXqB2nEQhni/nA3MbPBRwnyHl3sa4b2hzv3Q9
cdBILZDmuSM2U8XylGzhc2SG0Fl3vJDTT2mWVMhHr3td8zwj4CLQMxoTU9AVWfNl
BwIDAQABo4HTMIHQMBIGA1UdEwEB/wQIMAYBAf8CAQAwDgYDVR0PAQH/BAQDAgEG
MGoGA1UdHwRjMGEwX6BdoFukWTBXMQswCQYDVQQGEwJVUzEUMBIGA1UEChMLVGVj
aG5pY29sb3IxIzAhBgNVBAMTGlJvb3QgQ2VydGlmaWNhdGUgQXV0aG9yaXR5MQ0w
CwYDVQQDEwRDUkwxMB8GA1UdIwQYMBaAFCOST0SIUyJuAxebeQ8y/xeh+J4uMB0G
A1UdDgQWBBSK/xVgqHKKAPpwjWEdRUj3tntlNzANBgkqhkiG9w0BAQsFAAOCAQEA
RXsWdgYo/ILFAejvlvdR/5Fg6lfIPpoRXZAyrYmAFYw6F0vifww/5ChtF1o69HmQ
cOeVoRhJUEkfxntNMrQBaKL8+QBiuNnAw46gRo1V0wZRfSl7Xeiwn7GpUIvBZTwA
KgY5xdyItP+fCxKiqeAF42eAUKycJMgFjyHX26FXWe2XEdhdMf5aqN2IlZFyEELx
knAsBpK+bQSUC/UXMs/VX0Qw4CVHLzcjqkLD1F6UQts0qa3To9Au7ehSgg6PzmLO
884xQzCCjD/0uZkfhaY/ANd12stg++vA7SCZpsDFQCfGbbd9L65Sc4AZAXBe+HiT
7V0LC9z/8ZefQYZ5XjqwQQ==
-----END CERTIFICATE-----
Bag Attributes: <No Attributes>
subject=/C=US/O=Technicolor/CN=Root Certificate Authority
issuer=/C=US/O=Technicolor/CN=Root Certificate Authority
-----BEGIN CERTIFICATE-----
MIID3zCCAsegAwIBAgIETTf4fDANBgkqhkiG9w0BAQsFADBIMQswCQYDVQQGEwJV
UzEUMBIGA1UEChMLVGVjaG5pY29sb3IxIzAhBgNVBAMTGlJvb3QgQ2VydGlmaWNh
dGUgQXV0aG9yaXR5MB4XDTExMDEyMDA4MjUyN1oXDTM2MDEyMDA4NTUyN1owSDEL
MAkGA1UEBhMCVVMxFDASBgNVBAoTC1RlY2huaWNvbG9yMSMwIQYDVQQDExpSb290
IENlcnRpZmljYXRlIEF1dGhvcml0eTCCASIwDQYJKoZIhvcNAQEBBQADggEPADCC
AQoCggEBAKXkZbyVrfSdxMCosmKQne1ytH1XiPXrwYTQ8BvlaEhn1yqUhij8syVg
QEHCdSJHcZgWWDizOvtVwVOE6X38L2gJZ4zMZMY7VhgBSczocyIhO/JKvdTb7SEX
8FmqlbML1px9WSpxtr3VHsZYOgcW0isbzFkK9lTszEg0HTJ6WQ48DSnAkUZ8jKT5
RWpC8D8lAcW3YIfXXX5XbI3WKb34lrMqxF5knWF1xPxg9o0VsxhyLwtlLJUSEEof
JTKzmHiz/hXK6uFLmvk4vEY3DEkIFJy+La0MrgEB1qcG7l8KD9yNs0gWI5iC1UcC
lZ8UHYHr+keJ+QG4UIemL+BAq8BOGxkCAwEAAaOB0DCBzTAPBgNVHRMBAf8EBTAD
AQH/MA4GA1UdDwEB/wQEAwIBBjBqBgNVHR8EYzBhMF+gXaBbpFkwVzELMAkGA1UE
BhMCVVMxFDASBgNVBAoTC1RlY2huaWNvbG9yMSMwIQYDVQQDExpSb290IENlcnRp
ZmljYXRlIEF1dGhvcml0eTENMAsGA1UEAxMEQ1JMMTAfBgNVHSMEGDAWgBQjkk9E
iFMibgMXm3kPMv8XofieLjAdBgNVHQ4EFgQUI5JPRIhTIm4DF5t5DzL/F6H4ni4w
DQYJKoZIhvcNAQELBQADggEBAJFgCeym6ol0axvZOAzjOQRN+2k2b4kxamOcSRD8
/Q1+CJPzpw6qOT/qE+XicELB1/7+iSWf1QULh2hSVrO2WdDiZfOh9CKKEOluBnTi
VyGWf8+ZzEBiYsnnURrPs+8bIBtsFtBmxLRR1VlCRrC5sn3r8nV30MlVVEvee+fk
FRQVJRngzDUC9K1pNGgqxsQVIMxkhnmNQy7M37chgWXL6vd/wQkQwK5ujvZQ+A3I
AN2yAYgh+f3PhIxmf5HdpcSdBV+/6zEZCfBG09T8hF/RsTdzK6yUEO87pDUT+hBn
kLdg+6LKB/8vx1IwxRCrwdIr9TYpeQJkJVZd6qz7DVr4azg=
-----END CERTIFICATE-----
Rip File: /proc/rip/0088
qvp
Rip File: /proc/rip/0048
$
Rip File: /proc/rip/0010
E1
Rip File: /proc/rip/0012
1803RA8AM # env.rip.serial (they add CP to begin of this for env.var.serial)
Rip File: /proc/rip/0018
180210 # env.rip.factory_date
Banktable
Banktable File: /proc/banktable/active
$ root@OpenWrt:/proc# grep -r . /proc/banktable/
/proc/banktable/active:bank_1
/proc/banktable/booted:bank_1
/proc/banktable/inactive:bank_2
/proc/banktable/bootedoid:644b86b1dd841106e27f7bb2
/proc/banktable/notbooted:bank_2
/proc/banktable/notbootedoid:644b86b1dd841106e27f7bb2
/proc/banktable/activeversion:18.3.0757-1441017-20230428104121-0e40118246e7a2eb96aab3050c1c837e68b20f47
/proc/banktable/passiveversion:18.3.0757-1441017-20230428104121-0e40118246e7a2eb96aab3050c1c837e68b20f47
OTP
Default Shadow File: /etc/shadow
Notice the ! in tchroot per default, simply remove it to enable tchroot and login with tchroot:support
root:jn3yw0R6HbZTE:19710:0:99999:7:::
daemon:*:0:0:99999:7:::
ftp:*:0:0:99999:7:::
network:*:0:0:99999:7:::
nobody:*:0:0:99999:7:::
dnsmasq:x:0:0:99999:7:::
mosquitto:x:0:0:99999:7:::
tchroot:!$6$sB2UCZF2A.fns76w$F8DCwpIXVmrxO3tXweBfxqJZan9KlutOOVt9aTiER7wwRtqF3LHAYiCg1BWHWIlWU.3Gphwnf.AYVzP2Uo0wq.:19710:0:99999:7:::
lxc_telia:x:0:0:99999:7:::
trafficmon-ubus:x:0:0:99999:7:::
Technicolor Scripts
Script: Realtime monitor
#!/usr/bin/env bash
# - iNFO -------------------------------------------------
#
# Author....: wuseman <wuseman@nr1.nu>
# FileName....: realtime-monitor.sh
# Created....: 2023-12-16 (23:10:05)
# Modified....:
# Version....: 1.0
# License....: MIT
#
# --------------------------------------------------------
#
# Description:
#
# This script is designed to list all individual processes
# running on the router, providing precise insights into how
# the router executes its commands and the specific order in
# which all scripts are executed.
#
# The script was developed to comprehensively understand the
# router's operations, especially to identify any commands
# that may remain inaccessible during boot-up. This objective
# has been successfully achieved.
#
# For optimal utilization of this script, place it in an early
# init startup location, such as /etc/rc.d. Ensure you mount
# the disks before running the script. It is imperative to
# append '&' after adding "realtime-monitor.sh &" to the init
# file. Placing it before the system mounts may result in
# system instability, particularly if numerous commands are
# executed and the disk becomes full.
#
# The easiest way to run this script is via serial_console.
# As soon as you observe that the root is mounted, execute
# the script, for example, using `/root/realtime-monitor.sh`.
# Doing so will provide a real-time log of all scripts
# executing on the router, from the initial stages until it
# becomes fully operational.
#
# ------------------------------------------------------------
usbPath="/tmp/run/mountd/sda1/"
routerBoard="$(uci get env.rip.board_mnemonic)"
currentDate="$(date +%Y-%m-%d)"
HIGHEST_PID=0
randmString="$(cat /dev/urandom | tr -dc 'a-zA-Z0-9' | fold -w 4 | head -n 1)"
until [ -d "$usbPath" ]; do
sleep 1
done
if [ ! -d "$usbPath" ]; then
echo "USB drive is not mounted. Exiting script."
exit 1
fi
while true; do
NEW_PROCESSES=$(ps ww | awk -v highest="$HIGHEST_PID" '$1 > highest && !/awk/ && !/ps ww/ && !/sh -c/ && !/^ *PID/ && !/[[:space:]]-ash$/ && $3 != "Z"')
if [ ! -z "$NEW_PROCESSES" ]; then
echo "$NEW_PROCESSES" | grep -v "/root/q" | tee -a $usbPath-$routerBoard-$currentDate-$randmString.log
NEW_HIGHEST_PID=$(echo "$NEW_PROCESSES" | awk '{print $1}' | sort -n | tail -n 1)
if [ ! -z "$NEW_HIGHEST_PID" ]; then
HIGHEST_PID=$NEW_HIGHEST_PID
fi
fi
sleep .1
done
The best approach is to incorporate the script within an S<early_init> script,
as explained in the script description. Here is a brief preview video demonstrating
how it operates during router boot-up, allowing us to observe the sequential execution of processes.
Once we gain SSH access, we can execute the script and closely monitor the proceedings.
Since 'inotifywait' is not available, I have devised my own method for this purpose.
Additionally, you have the option to run it during a reboot to gain insight
into the exact sequence of events, should you desire
Embedded Firmware Utility
All EFU Files
find / -type d \( -path /proc -o -path /sys -o -path /tmp/mvfs \) -prune -o -type f -name '*efu*' -print|sort
/etc/efu_handler/efu_tchdev_key
/lib/functions/efu_handler.sh
/lib/preinit/98_efu_handler
/overlay/bank_1/usr/lib/opkg/info/efu-handler.list
/rom/etc/efu_handler/efu_tchdev_key
/rom/lib/functions/efu_handler.sh
/rom/lib/preinit/98_efu_handler
/rom/usr/lib/opkg/info/efu-handler.control
/rom/usr/lib/opkg/info/efu-handler.list
/rom/usr/sbin/rip-create-efu.sh
/rom/usr/sbin/rip-write-efu.sh
/usr/lib/opkg/info/efu-handler.control
/usr/lib/opkg/info/efu-handler.list
/usr/sbin/rip-create-efu.sh
/usr/sbin/rip-write-efu.sh
Proc File: /etc/efu_handler/efu_tchdev_key
{
"efu_feature" : "allow_root_shell_access",
"unlock": [ ],
"store" : [ ],
"exec" : "/lib/tchdev/update_tchdev.sh"
}
Proc File: /lib/functions/efu_handler.sh
#!/bin/sh
#
# EFU handler framework
#
# This script is used in association with the "unlock tag".
# Based on this tag, the configuration of some services will be modified to be open.
#
# Example:
# If the unlock tag has the root shell access bit set, this script will
# make sure the root account is enabled for both serial and ssh access.
#
# More info: https://confluence.technicolor.com/pages/viewpage.action?pageId=59803052
#
. /usr/share/libubox/jshn.sh
# Path definition
config_dir="/etc/efu_handler"
state_file_dir="$config_dir/state_before_unlock"
# EFU file
allowed_efu_feature_file="/proc/efu/allowed"
# JSON file keyword definition
js_cmd_type="type"
js_uci_cmd="uci_command"
js_uci_param="uci_parameter"
js_uci_value="uci_value"
log(){
logger -t "efu-handler" "$*"
}
# Function: store_default_package_state
# Execute the command that retrieves the state of the current package and store this state into file
# Input:
# 1: configuration file (package name only) in json format
# Output:
# none
store_default_package_state() {
local _js_config_file
local _js_state_file
local _type
local _uci_param
local _uci_value
# Package config file must be present
_js_config_file="$config_dir/$1"
[[ ! -f "$_js_config_file" ]] && return
# Create directory where to store the default package state file
mkdir -p "$state_file_dir"
# Initialise the file where to store parameter state
_js_state_file="$state_file_dir/$1"
if [[ -f "$_js_state_file" ]]; then
# Do not store the default parameter state twice
return
else
# Create an empty JSON file
echo '{ }' > "$_js_state_file"
fi
# Initialise JSON context for both state and config file
json_init
local _js_namespace_config="config"
local _js_namespace_state="state"
# Load the file where parameter state will be written to
json_set_namespace "$_js_namespace_state"
json_load "$(cat "$_js_state_file")"
json_add_array "$1"
# Load the json package config file
json_set_namespace "$_js_namespace_config"
json_load "$(cat "$_js_config_file")"
# Select the "store" object and loop through all elements
json_select "store"
local _index="1"
local _js_obj_type
while json_get_type _js_obj_type "$_index" && [[ "$_js_obj_type" == "object" ]]; do
json_select "$_index" # inner array element
json_get_var _type "$js_cmd_type" # Select the parameter type
case "$_type" in
uci)
# Get the current state of the selected parameter
json_get_var _uci_param "$js_uci_param"
_uci_value="$(uci get -q "$_uci_param")"
# Store this state into state file
json_set_namespace "$_js_namespace_state"
json_add_object
json_add_string "$js_cmd_type" "$_type"
json_add_string "$js_uci_param" "$_uci_param"
if [[ -z "$_uci_value" ]]; then
# Parameter is not part of UCI tree,
# so it must be deleted when restoring the configuration
json_add_string "$js_uci_cmd" "delete"
else
json_add_string "$js_uci_cmd" "set"
json_add_string "$js_uci_value" "$_uci_value"
fi
json_close_object
;;
*)
log "unknown object type '$_type'"
json_cleanup
exit 1
;;
esac
# Back to config file array element
json_set_namespace "$_js_namespace_config"
json_select ".."
let _index++
done
json_set_namespace "$_js_namespace_state"
json_dump > "$_js_state_file"
json_cleanup
}
# Function: restore_default_state
# Restore the state of the services that were changed by the unlock tag
# based on the file storing the state of the package name given as input
# Input:
# 1: configuration file (package name only) in json format
# Output:
# none
restore_default_state() {
local _js_state_file
local _type
local _uci_cmd
local _uci_param
local _uci_value
local _index
local _js_obj_type
_js_state_file="$state_file_dir/$1"
[[ ! -f "$_js_state_file" ]] && return
json_init
json_load "$(cat "$_js_state_file")"
json_select "$1" # Select array
# Loop through all parameter for that package (array elements)
local _index="1"
while json_get_type _js_obj_type "$_index" && [[ "$_js_obj_type" == "object" ]]; do
json_select "$_index" # inner array element
json_get_var _type "$js_cmd_type" # Select the parameter type
case "$_type" in
uci)
json_get_var _uci_cmd "$js_uci_cmd"
json_get_var _uci_param "$js_uci_param"
if [[ "$_uci_cmd" == "set" ]]; then
json_get_var _uci_value "$js_uci_value"
fi
uci "$_uci_cmd" "${_uci_param}${_uci_value:+=$_uci_value}"
log "Lock: Parameter ${_uci_param} restored"
;;
*)
log "unknown object type '$_type'" >/dev/stderr
json_cleanup
return 1
;;
esac
json_select ".."
let _index++
done
uci commit
rm -f "$_js_state_file" # Restore the state only once
json_cleanup
}
# Function: unlock
# Retrieve the unlock action from config file and execute it
# Input:
# $1 : package config file
# Output:
# none
unlock() {
local _js_config_file
local _type
local _uci_cmd
local _uci_param
local _uci_value
_js_config_file="$config_dir/$1"
# Package config file must be present
[[ ! -f "$_js_config_file" ]] && return 1
# Initialise the JSON context
json_init
json_load "$(cat "$_js_config_file")"
json_select "unlock" || { json_cleanup; return 1; }
# Loop through all elements
local _index="1"
local _js_obj_type
while json_get_type _js_obj_type "$_index" && [[ "$_js_obj_type" == "object" ]]; do
json_select "$_index" # inner array element
json_get_var _type "$js_cmd_type" # Select the parameter type
case "$_type" in
uci)
json_get_var _uci_cmd "$js_uci_cmd"
json_get_var _uci_param "$js_uci_param"
json_get_var _uci_value "$js_uci_value"
uci "$_uci_cmd" "${_uci_param}${_uci_value:+=$_uci_value}"
log "Unlock: Parameter ${_uci_param} updated"
;;
*)
log "unknown object type '$_type'"
json_cleanup
exit 1
;;
esac
json_select ".."
let _index++
done
json_cleanup
}
# Function: _adapt_banner
# Change banner file in case the EFU has any bit set
# Input:
# $1: 0=remove banner, 1=add banner
# Output:
# none
adapt_banner(){
local _banner="/etc/banner"
local _warning_msg="WARNING: Development board (EFU tag present)"
[[ ! -f "$_banner" ]] && return
# Remove any previous message from banner
awk '/\x1B\[1;30m\x1B\[43m /{p=1}/\x1B\[0m /{p=0;next}!p' "$_banner" >> /tmp/banner
mv /tmp/banner "$_banner"
if [[ "$1" == "1" ]]; then # Add a new message to banner
if grep -q . /proc/efu/allowed; then
echo -ne "\n\e[1;30m\e[43m" >> "$_banner"
echo " " | sed -e :a -e 's/^.\{1,49\}$/& /;ta' >> "$_banner"
echo "$_warning_msg" | sed -e :a -e 's/^.\{1,49\}$/ & /;ta' >> "$_banner"
echo " " | sed -e :a -e 's/^.\{1,49\}$/ &/;ta' >> "$_banner"
echo "Features enabled:" | sed -e :a -e 's/^.\{1,49\}$/& /;ta' >> "$_banner"
echo "$(cat /proc/efu/allowed)" | sed -e 's/^/ /' | sed -e :a -e 's/^.\{1,49\}$/& /;ta' >> "$_banner"
echo " " | sed -e :a -e 's/^.\{1,49\}$/ &/;ta' >> "$_banner"
echo -ne "\e[0m " >> "$_banner"
fi
fi
}
# Function: efu_handler_is_unlocked
# Get the state to be applied to the package based on the unlock
# tag feature list
# Input:
# $1 : package config file
# Output:
# none
# Return value:
# 0 if unlock feature is set, 1 otherwise
efu_handler_is_unlocked(){
local _efu_feature
local _js_config_file="$config_dir/$1"
local _is_unlocked=1
# Exit in case if the efu kernel module isn't present
[[ -f "$allowed_efu_feature_file" ]] || return 1
# Load configuration file to get the efu feature
json_init
json_load "$(cat "$_js_config_file")"
json_get_var _efu_feature "efu_feature"
if [[ -n "$_efu_feature" ]]; then
if grep -q "$_efu_feature" "$allowed_efu_feature_file"; then
_is_unlocked=0
fi
fi
json_cleanup
return "$_is_unlocked"
}
efu_run_execute_handler() {
local config_file="$config_dir/$1"
local action="$2"
local command
json_init
json_load_file "$config_file"
json_get_var command "exec"
json_cleanup
if [[ -n "$command" ]]; then
$command $action
fi
}
# Function: efu_handler_apply_config
# Loop through all packages to unlock them or restore their states
# before the unlock action.
# Input:
# none
# Output:
# none
efu_handler_apply_config() {
local _packages
local _efu_active=0
# Exit in case if the efu kernel module isn't present
if [[ -f "$allowed_efu_feature_file" ]]; then
# Get the list of files that must be processed
[[ -d ${config_dir} ]] && _packages="$(find ${config_dir} -maxdepth 1 -type f -exec basename {} \;)"
local _pkg
local action
for _pkg in $_packages; do
if efu_handler_is_unlocked "$_pkg"; then
store_default_package_state "$_pkg" && unlock "$_pkg"
_efu_active=1
action="unlock"
else
restore_default_state "$_pkg"
action="lock"
fi
efu_run_execute_handler "$_pkg" "$action"
done
uci commit
fi
adapt_banner "$_efu_active"
}
/lib/preinit/98_efu_handler
. /lib/functions/efu_handler.sh
boot_hook_add preinit_main efu_handler_apply_config
/usr/lib/opkg/info/efu-handler.list
/lib/functions/efu_handler.sh
/lib/preinit/98_procd_debug
/etc/efu_handler/root_shell_access
/lib/preinit/98_efu_handler
/usr/lib/opkg/info/efu-handler.control
Package: efu-handler
Version: 1.0
Depends: libc, libssp, librt, libpthread, kmod-ripdrv, libubox
Source: feeds/technicolor/efu-handler
Section: efu-handler
Maintainer: Technicolor <linuxgw@technicolor.com>
Architecture: arm_cortex-a9
Installed-Size: 3018
Description: The EFU handler is providing a framework for applying a different package configuration
based on the unlock tag provisioned on the gateway.
More info: https://confluence.technicolor.com/pages/viewpage.action?pageId=59803052
/usr/sbin/rip-create-efu.sh
#!/bin/sh
RIP_PATH="/proc/rip"
RIP_ID_CHIPID="0115"
RIP_ID_OSIK="0120"
SERIAL="$(uci get env.rip.factory_id)$(uci get env.rip.serial)"
[ -e "${RIP_PATH}/${RIP_ID_CHIPID}" ] && CHIPID="0x$(hexdump -v -n 4 -e '1/1 "%02X"' "${RIP_PATH}/${RIP_ID_CHIPID}")"
determine_signature_key() {
[ -e "${RIP_PATH}/${RIP_ID_OSIK}" ] || return 1
local md5_Technicolor="ada4cbd2a8e9d3c1175035e0fdf18399"
local md5_signkey="$(md5sum "${RIP_PATH}/${RIP_ID_OSIK}" | sed 's/ .*//')"
case "${md5_signkey}" in
${md5_Technicolor})
SIGNKEY="Technicolor"
;;
${md5_Telia})
SIGNKEY="Telia"
;;
*)
SIGNKEY="Unknown (${md5_signkey})"
;;
esac
}
determine_signature_key
echo "Serial Number : ${SERIAL}"
echo "Chip ID : ${CHIPID:-'0x0'}"
echo "Signature Key : ${SIGNKEY:-'Not present'}"
/usr/sbin/rip-write-efu.sh
#!/bin/sh
RIP_PATH="/proc/rip"
RIP_ID_EFU="0125"
EFU_RIP_PATH="$RIP_PATH/$RIP_ID_EFU"
EFU_TAG_LENGTH=264
find_program() {
if ! which "$1" > /dev/null 2>&1 ; then
echo "Error: program '$1' not found"
exit 1
fi
}
find_program base64
find_program dd
find_program md5sum
print_usage() {
BIN=$(basename $0)
echo ""
echo " usage: $BIN <tagfile>"
echo ""
}
tag_is_valid() {
base64 -d "$1" > /dev/null 2>&1 || return 1
local numbytes=$(base64 -d "$1" | wc -c)
[ "$numbytes" -eq $EFU_TAG_LENGTH ] || return 1
TAGLENGTH=$numbytes
}
rip_create_entry() {
[ -e "$RIP_PATH/new" ] || return 1
echo $1 > "$RIP_PATH/new"
[ -e "$RIP_PATH/$1" ] || return 1
}
rip_write_tag() {
base64 -d "$1" > $EFU_RIP_PATH
}
rip_verify_tag() {
local numbytes=$(cat "$EFU_RIP_PATH" | wc -c)
[ "$numbytes" -eq $(($EFU_TAG_LENGTH + 1)) ] || return 1
local tag_hash=$(base64 -d "$1" | md5sum | cut -f 1 -d ' ')
local rip_hash=$(dd if="$EFU_RIP_PATH" bs=$EFU_TAG_LENGTH count=1 2>/dev/null | md5sum | cut -f 1 -d ' ')
[ $tag_hash = $rip_hash ]
}
if [ $# -ne 1 ] ; then
echo "Missing argument"
print_usage
exit 1
fi
TAGFILE=$1
if [ ! -e "$TAGFILE" ] ; then
echo "File not found"
print_usage
exit 1
fi
if ! tag_is_valid "$TAGFILE" ; then
echo "Invalid tag"
print_usage
exit
fi
if [ ! -e $EFU_RIP_PATH ] && ! rip_create_entry $RIP_ID_EFU ; then
echo "Error: create EFU RIP entry failed"
exit 1
fi
echo "Writing tag to RIP ($TAGLENGTH bytes).."
if ! rip_write_tag "$TAGFILE" ; then
echo "Error: writing to RIP failed"
exit 1
fi
echo "Verifying.."
if ! rip_verify_tag "$TAGFILE" ; then
echo "Error: verification failed"
exit 1
fi
echo "Success"
/proc/efu
Proc File: /proc/efu/allowed
- Empty File
Proc File: /proc/efu/allowed_bootloader
- Empty File
Proc File: /proc/efu/
Serial: CP<serial>
ChipID: 0x<hex_id>
Key : <key>...
Permanent tag: not present
Temporal tag: not present
Proc File: /proc/efu/temporal_tag
cat: read error: Input/output error
Configuration File: /etc/shadow
root@TeliaLXC:/etc# cat group
root:x:0:root
nogroup:x:65534:
root@TeliaLXC:/etc# cat shadow
root:Fgubi6ylv5or.:19708:0:99999:7:::
daemon:*:0:0:99999:7:::
ftp:*:0:0:99999:7:::
network:*:0:0:99999:7:::
nobody:*:0:0:99999:7:::
dnsmasq:x:0:0:99999:7:::
mosquitto:x:0:0:99999:7:::
tchroot:!$6$1S3fNYXaTMDwOHJF$JTnIozpr8Ux/TvTfuFasi9YZFrKGWI/2oSHWgogXPoQMlNoRpnbuDBSZMl7.gf4ME/SOq4KNl7F/IxMZ7Lx.M.:19708:0:99999:7:::
lxc_telia:x:0:0:99999:7:::
trafficmon-ubus:x:0:0:99999:7:::
Configuration File: /etc/config/dropbear
config dropbear 'mgmt'
option PasswordAuth 'off'
option RootPasswordAuth 'off'
option Port '22'
option Interface 'mgmt'
option AllowedClientIPs '131.116.22.242/32 10.0.98.251/32 194.255.56.128/26 2001:2011:c001::/48 80.235.8.160/27 2001:7d0:d000:0003::/64 81.227.117.202/32 81.227.117.198/32 81.227.117.87/32 81.236.57.82/32'
option enable '1'
option IdleTimeout '3600'
option RootLogin '1'
option AllowLocalForwarding '0'
config dropbear 'wan'
option PasswordAuth 'off'
option RootPasswordAuth 'off'
option Port '60022'
option Interface 'wan'
option AllowedClientIPs '131.116.22.242/32 213.190.32.43/26 194.255.56.128/26 80.235.8.160/27 81.227.117.202/32 81.227.117.198/32 81.227.117.87/32 81.236.57.82/32'
option IdleTimeout '3600'
option RootLogin '1'
option AllowLocalForwarding '0'
option enable '0'
config dropbear 'wan6'
option PasswordAuth 'off'
option RootPasswordAuth 'off'
option Port '60022'
option Interface 'wan6'
option AllowedClientIPs '2001:2011:c001::/48 2001:7d0:d000:0003::/64'
option IdleTimeout '3600'
option RootLogin '1'
option AllowLocalForwarding '0'
option enable '0'
config dropbear 'lan'
option PasswordAuth 'on'
option RootPasswordAuth 'on'
option Port '60022'
option Interface 'lan'
option enable '0'
option IdleTimeout '3600'
option AllowLocalForwarding '0'
config dropbear 'afg'
option enable '1'
option Interface 'lan'
option Port '22'
option IdleTimeout '600'
option PasswordAuth 'on'
option RootPasswordAuth 'on'
option RootLogin '1'
Restriced Shell
This script seems to be designed for handling user access on our router, differentiating between SSH, telnet, and serial connections. It performs various checks to determine the connection type and whether the user is authorized to access certain features, like a shell or specific applications.
Here’s a breakdown of the key parts of the script:
-
Function Definitions:
__log: A helper function for logging messages using theloggercommand.__check_parent_process: Checks if the current process was forked by a specific parent process (liketelnetdordropbearfor SSH)._is_telnet,_is_ssh,_is_serial: These functions check if the current session is established via telnet, SSH, or a serial connection, respectively._is_clash_user_allowed_on_serial: Checks if a clash user is allowed on the serial connection._is_any_clash_serial_user: Returns true if there is at least one clash user allowed on serial._verify_clash_access: Verifies if the user has access to the clash application over the specified interface._verify_shell_access: Checks if the user is allowed shell access._is_scp: Determines if the current session is established by an SCP command.
-
Connection Type Determination:
- The script first determines the type of connection (serial, SSH, or telnet) using the
_is_serial,_is_ssh, and_is_telnetfunctions.
- The script first determines the type of connection (serial, SSH, or telnet) using the
-
Access Verification:
- For each connection type, it verifies if the user is allowed to access specific features (like the clash application or the shell) using
_verify_clash_accessand_verify_shell_access.
- For each connection type, it verifies if the user is allowed to access specific features (like the clash application or the shell) using
-
Executing the Appropriate Action:
- Depending on the verification results and the connection type, the script either starts the clash application, grants shell access, or initiates a login prompt. For instance, if the user is connecting via serial and is allowed shell access, the script executes
/bin/login.
- Depending on the verification results and the connection type, the script either starts the clash application, grants shell access, or initiates a login prompt. For instance, if the user is connecting via serial and is allowed shell access, the script executes
-
Handling Special Cases:
- The script has specific conditions for SCP commands and SSH connections, ensuring that only authorized actions are allowed.
-
Exit if No Conditions are Met:
- If none of the conditions for granting access are met, the script logs a message and exits.
To bypass this behavior you can simply change askconsole to respawn in /etc/inittab
cat << "EOF" > /etc/inittab
::sysinit:/etc/init.d/rcS S boot
::shutdown:/etc/init.d/rcS K shutdown
# ::askconsole:/bin/ash
::respawn:/bin/restricted_shell
EOF
Verify that the file was written properly
cat /etc/inittab
Script: /bin/restricted_shell
#!/bin/sh
. /lib/functions.sh
[[ -f /lib/functions/efu_handler.sh ]] && . /lib/functions/efu_handler.sh
# Helper function for logging
__log() {
logger -t "$(basename "$0")" "$*"
}
__check_parent_process() { # parent_name protocol_name
local parent_name="${1}"
local protocol_name="${2}"
local curr="self"
local Name=""
local PPid=""
# Test if I'm forked by the expected parent process
until [ "$Name" = "${parent_name}" ] || [ "$PPid" = "1" ]
do
Name=$(awk '/Name:/{print $2}' /proc/$curr/status)
PPid=$(awk '/PPid:/{print $2}' /proc/$curr/status)
curr="$PPid"
done
if [ "$Name" = "${parent_name}" ]; then
__log "User $USER is connecting through ${protocol_name}..."
return 0
fi
return 1
}
# Check if the current session is established by a Telnet connection
_is_telnet() {
# Test if user is connecting through telnet
readlink -f /proc/self/fd/0 | grep -q pts
if [ "$?" -ne 0 ]; then
return 1
fi
__check_parent_process "telnetd" "Telnet"
return $?
}
# Check if the current session is established by a SSH connection
_is_ssh() {
__check_parent_process "dropbear" "SSH"
return $?
}
# Check if the current session is established over a serial connection
_is_serial() {
# Test if user is connecting through serial
readlink -f /proc/self/fd/0 | grep -q tty
if [ "$?" -eq 0 ]; then
__log "User $USER is connecting through tty..."
return 0
fi
return 1
}
# UCI function used for returning the value of clash.<user>.serial
_is_clash_user_allowed_on_serial() {
[ "$serial_clash_user_found" -eq 1 ] && return
config_get serial "$1" serial
serial_clash_user_found="$serial"
}
# Return 0 if there is at least 1 clash user allowed on serial
_is_any_clash_serial_user(){
config_load clash
serial_clash_user_found=0
config_foreach _is_clash_user_allowed_on_serial user
return $((! serial_clash_user_found))
}
# Verify if specified user has access to clash over the specified interface.
# * SSH: on any interface `uci.clash.user.ssh` or list of interfaces `uci.clash.user.ssh_interface`
# * Serial: `uci.clash.user.serial`
# * Telnet: `uci.clash.user.telnet`
# 1: the connection type; should be `serial`, `ssh` or `telnet`
_verify_clash_access() {
local access
access=$(lua - "$1" <<EOF
local acc
local lib_loaded, lib = pcall(require, 'clash-access-control')
if lib_loaded then
acc = lib.check(...)
end
print(acc and "1" or "")
EOF
)
if [ ! -z "$access" ]; then
return 0
fi
return 1
}
# Verify if the user has shell access.
_verify_shell_access() {
if [[ "$USER" == "root" ]]; then
if type efu_handler_is_unlocked | grep -q "is a shell function"; then
efu_handler_is_unlocked "root_shell_access" && return 0
fi
fi
return 1
}
# Check if the current session is established by a SCP command
_is_scp() {
if [ $# -gt 0 -a "${1}" = "-c" ]; then
# Drop the argument added by SSH
shift 1
fi
if [ $# -gt 0 ]; then
# There are still arguments, check that the first one doesn't start with scp
first_word=$(echo "${1}" | cut -d " " -f 1)
if [ "${first_word}" = "scp" ]; then
return 0
fi
fi
return 1
}
# Check all pre-conditions before starting the shell:
# (1) Connection must be through serial or SSH or telnet, nothing else.
# (2) User must have access over that respective connection.
# Anything else is not allowed or supported.
local interface
_is_serial && interface="serial"
[[ -z "$interface" ]] && _is_ssh && interface="ssh"
[[ -z "$interface" ]] && _is_telnet && interface="telnet"
[[ -z "$interface" ]] && exit 1
if _verify_clash_access "$interface"; then
__log "User $USER is allowed to run clash on $interface"
[[ "$interface" == "ssh" ]] && { _is_scp "$@" && exit 1; } # clash doesn't support scp
[[ $# -gt 0 && "${1}" = "-c" ]] && shift 1; # Drop the argument added by SSH
exec /usr/bin/clash "$@"
fi
if _verify_shell_access && [[ -n "$USER" ]]; then
if _is_scp "$@"; then
__log "User $USER is allowed to run scp on $interface"
exec /bin/ash "$@"
elif [[ "$interface" == "ssh" && $# -gt 1 ]]; then
__log "User $USER is allowed to run a specific command on ssh"
exec /bin/ash "$@"
else
__log "User $USER is allowed to get a shell on $interface"
exec /bin/ash --login "$@"
fi
fi
if [[ "$interface" == "serial" ]]; then
local show_login="0"
# Show login on serial if root shell access is allowed OR any clash user is allowed
_is_any_clash_serial_user && show_login="1"
[[ "$show_login" == "0" ]] && [[ -z "$USER" ]] && USER="root" && _verify_shell_access && show_login="1"
if [[ "$show_login" == "1" ]]; then
__log "Connection on serial, start login"
exec /bin/login
fi
fi
__log "No suitable login found for $USER on $interface"
exit 1
Router Normal Behavior
Full process list after a full factory reset to default configuration and this happens when it booted and before it just suddenly reboots first time
Process List First Reboot
1 root 2836 S /sbin/procd
2 root 0 SW [kthreadd]
3 root 0 SW [ksoftirqd/0]
4 root 0 SW [kworker/0:0]
5 root 0 SW< [kworker/0:0H]
6 root 0 SW [kworker/u4:0]
7 root 0 SW [rcu_preempt]
8 root 0 SW [rcu_sched]
9 root 0 SW [rcu_bh]
10 root 0 SW [migration/0]
11 root 0 SW [migration/1]
12 root 0 SW [ksoftirqd/1]
13 root 0 SW [kworker/1:0]
14 root 0 SW< [kworker/1:0H]
15 root 0 SW< [khelper]
16 root 0 SW< [netns]
17 root 0 SW< [writeback]
18 root 0 SW [kworker/0:1]
19 root 0 SW< [crypto]
20 root 0 SW< [bioset]
21 root 0 SW< [kblockd]
22 root 0 SW [skb_free_task]
23 root 0 SW [bcmFapDrv]
24 root 0 SWN [kswapd0]
25 root 0 SW [fsnotify_mark]
38 root 0 SW< [kthrotld]
39 root 0 SW [cfinteractive]
40 root 0 SW [kworker/1:1]
41 root 0 SW< [linkwatch]
42 root 0 SW< [ipv6_addrconf]
43 root 0 SW< [deferwq]
44 root 0 SW [kworker/u4:1]
47 root 0 SW< [kworker/1:1H]
48 root 0 SW< [kworker/0:1H]
60 root 0 SWN [jffs2_gcd_mtd2]
189 root 2396 S /sbin/ubusd
190 root 2232 S /sbin/askfirst /bin/restricted_shell
236 root 5492 S /usr/sbin/cgrulesengd -n -Q -u root
321 root 0 SW [kbdmf_shell]
361 root 0 SW [spdsvc_timer_th]
373 root 0 SW [spu_rx]
380 root 0 SW [bcmxtm_rx]
403 root 0 SW [bcmFlwStatsTask]
416 root 0 SW [bcmsw_rx]
445 root 0 SW [bcmsw]
670 root 0 SW [wl0-kthrd]
711 root 0 SW [wfd0-thrd]
2945 root 0 SW [kworker/0:2]
3368 root 2024 S /usr/sbin/watchdog-tch -c /var/etc/watchdog.conf --foreground
3443 root 0 SW [kworker/0:3]
3550 root 0 SW [scsi_eh_0]
3552 root 0 SW< [scsi_tmf_0]
3554 root 0 SW [usb-storage]
3625 root 3724 S {status-led-even} /usr/bin/lua /sbin/status-led-eventing.lua
3631 root 5600 S {ledfw.lua} /usr/bin/lua /sbin/ledfw.lua
3691 root 2568 S /sbin/logd -S 64
3692 root 2604 S /sbin/logread -f -F /etc/log/messages -p /var/run/logread.1.pid -S 1024
3710 root 0 SW [kworker/u4:2]
3790 root 20836 S /usr/bin/swmdk
3914 root 2516 S /usr/bin/bcmubusbridge
3969 root 2408 S /usr/bin/dhcpopassthrud
4016 root 5856 S lua /usr/bin/hostmanager.lua
4032 root 0 SW [kworker/1:2]
4508 root 0 SW [kworker/1:3]
4595 root 49120 S hostapd -bund -p /var/run/hostapd.pid -e /tmp/hostapd.env
4728 root 0 SW [dsl0]
5135 root 2872 S /sbin/netifd
5191 root 2824 S < /usr/sbin/conntrackd -C /etc/conntrackd/conntrackd.conf
5429 root 5300 S {mobiled.lua} /usr/bin/lua /lib/netifd/mobiled.lua -s 0 -p 1 -i wwan
6946 root 8544 S {wansensing.lua} /usr/bin/lua /sbin/wansensing.lua
6991 root 2564 S /usr/sbin/odhcpd
7044 root 3452 S /usr/sbin/crond -f -c /etc/crontabs -l 5
7138 root 5576 S lua /usr/bin/lcmd
7176 root 28300 S lua /usr/bin/transformer
7282 root 2524 S /usr/bin/dhcpsnooper -q 0
7395 root 2368 S /usr/bin/mcsnooper
7452 root 2528 S /usr/bin/neighmd -m 0x7
7470 root 2268 S odhcpc -p /var/run/odhcpc-eth4.pid -s /lib/netifd/dhcp.script -f -o -t 0 -i eth4 -x hostname Telia WiFi-router Plus v3-CP1803RA8AM-18.3.0757-1441017 -V LongLeaseTime -C -R -O 1 -O 3 -O 6 -O 15 -O 33 -O 42 -O 43 -O 51 -O 121 -O 125 -O 249 -x 0x7c 000008ba48010e5247572d77616e2d636f6e666967020656424e542d48031131382e332e303735372d31343431303137040b435031383033524138414d0503455448060377616e070465746834 -O 212 -O 121
7595 root 6828 S {mobiled} /usr/bin/lua /usr/bin/mobiled
8226 root 3324 S {S70cwmpd} /bin/sh /etc/rc.common /etc/rc.d/S70cwmpd boot
8229 root 3448 S {cwmpd-boot-dela} /bin/sh /usr/bin/cwmpd-boot-delay
8447 root 2840 S /usr/bin/mldproxy
9293 dnsmasq 2912 S /usr/sbin/dnsmasq -C /var/etc/dnsmasq.conf.dnsmasq -k -x /var/run/dnsmasq/dnsmasq.dnsmasq.pid
9297 root 2912 S /usr/sbin/dnsmasq -C /var/etc/dnsmasq.conf.dnsmasq -k -x /var/run/dnsmasq/dnsmasq.dnsmasq.pid
9837 root 12256 S /usr/sbin/urlfilterd
10035 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
10091 root 3804 S /usr/lib/ipsec/starter --daemon charon --nofork
10238 root 136m S /usr/lib/ipsec/charon
10446 root 2572 S /usr/sbin/dropbear -F -P /var/run/dropbear.2.pid -p 192.168.1.1:22 -p 2001:2002:d543:f07b::1:22 -I 600 -K 300 -T 3
10473 root 2440 S /usr/bin/fseventd -d
10514 root 3356 S {time_change_mon} /usr/bin/lua /sbin/time_change_monitor.lua
10541 root 14188 S /usr/bin/mvfs -o config=/tmp/.mvfs/mvfs.ini /var/mvfs -o l=2
10589 root 38436 S N /usr/bin/mud -d -t /etc/mud/mud_file_type_config.ini -l 2
10649 root 3068 S mmpbxfwctl
10807 root 3324 S < /usr/sbin/ntpd -n -N -l -S /usr/sbin/ntpd-hotplug
11063 root 5096 S lua /usr/sbin/lxc_monitor.lua
11064 root 2880 S socat -d -ly -lplxc_ee_ubp UNIX-LISTEN://var/run/lcm_ipc_lxc_ee/ubus.sock,unlink-early,fork,su=lxc_telia UNIX-CONNECT:/var/run/ubus.sock
11065 root 3044 S lxc-start -F -n lxc_ee
11168 root 2444 S /usr/sbin/dropbear -F -P /var/run/dropbear.1.pid -p 192.168.1.1:22 -p 2001:2002:d543:f07b::1:22 -I 600 -K 300 -T 3
11192 root 2200 S /sbin/mountd -f
11245 root 3156 S {init} /bin/sh /sbin/init
11354 root 5248 S lua /usr/bin/pinholehelper.lua
11389 root 3192 S sleep 10
11392 root 0 SW [jbd2/sda2-8]
11393 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
11394 root 0 SW< [ext4-rsv-conver]
11425 root 3156 S {rcS} /bin/sh /etc/init.d/rcS S boot
11427 root 3024 S sleep 10
11428 root 3156 S {S05installer} /bin/sh /etc/rc.common /etc/rc.d/S05installer boot
11448 root 5252 S lua /usr/bin/redirecthelper.lua
11453 root 4872 S fw3 -q reload
11473 root 0 Z [hotplug-call]
11474 root 0 Z [hotplug-call]
11475 root 0 Z [hotplug-call]
11477 root 0 Z [hotplug-call]
11479 root 0 Z [hotplug-call]
11480 root 0 Z [hotplug-call]
11481 root 0 Z [hotplug-call]
11482 root 0 Z [hotplug-call]
11483 root 0 Z [hotplug-call]
11666 root 5052 S lua /usr/sbin/vpn.lua
11776 root 5356 S nginx: master process /usr/sbin/nginx -c /etc/nginx/nginx.conf -g daemon off;
11821 nobody 6412 S nginx: worker process
11832 root 3192 S sleep 10
11960 root 2840 S /usr/bin/igmpproxy
11972 root 3324 S N {dlnad.sh} /bin/sh /etc/rc.common /lib/functions/dlnad.sh insert_partition_section sda2
11973 root 0 SW [jbd2/sda1-8]
11974 root 0 SW< [ext4-rsv-conver]
12065 root 3916 R {mmpbxd} /bin/sh /etc/rc.common /etc/init.d/mmpbxd restart
12069 root 3652 S lock /tmp/.execute.lock
12076 root 3652 S {mwan} /bin/sh /etc/rc.common /etc/init.d/mwan reload
12087 root 3324 S {firewall} /bin/sh /etc/rc.common /etc/init.d/firewall reload
12090 root 0 SW [kworker/0:4]
12123 root 3816 S fw3 reload
12223 root 2188 R N uci commit
12326 root 3780 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
12337 root 3688 S fw3 -q network voip
12339 root 3652 S lock /var/lock/LCK.mwan
12345 root 9024 S /usr/bin/core-lcm
12348 root 18580 R opkg install /etc/ipks/core_watchdog-2.1.9+uci-arm_cortex-a9.ipk
12352 root 3156 R gzip -d -c
12443 root 2516 S uci -P /var/state set mmpbx state NA
12446 root 0 Z [gzip]
12451 root 3156 R gzip -d -c
12474 root 3492 R iptables -t filter -I zone_mgmt_input -p tcp -m tcp --src 81.227.117.198/32 --dport 22 -m comment --comment Allow_Dropbear_Conn -j ACCEPT
12480 root 3492 S iptables -t filter -I zone_mgmt_input -p tcp -m tcp --src 81.227.117.87/32 --dport 22 -m comment --comment Allow_Dropbear_Conn -j ACCEPT
12490 root 3156 S gzip -d -c
12492 root 3156 R gzip -d -c
12496 root 2056 R N /sbin/uci -P /var/state -S -n export dlnad
12520 root 3156 R gzip -d -c
12544 root 3156 S gzip -d -c
12546 root 3156 S gzip -d -c
12556 root 3696 R iptables -t mangle --append OUTPUT --jump mwan_output
12619 root 0 Z [hotplug-call]
12620 root 0 Z [hotplug-call]
12621 root 0 Z [hotplug-call]
12622 root 0 Z [hotplug-call]
12623 root 0 Z [hotplug-call]
12624 root 0 Z [hotplug-call]
12625 root 0 Z [hotplug-call]
12626 root 0 Z [hotplug-call]
12627 root 0 Z [hotplug-call]
12628 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call iface
12653 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
12654 root 3192 S sleep 10
12663 root 3024 S sleep 10
12690 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
12710 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
12716 root 3324 S {dynamic_dns_upd} /bin/sh /usr/lib/ddns/dynamic_dns_updater.sh -n Guest1 -- start
12750 root 3156 S gzip -d -c
12754 root 3156 R gzip -d -c
12762 root 3324 S {dynamic_dns_upd} /bin/sh /usr/lib/ddns/dynamic_dns_updater.sh -n Guest1 -- start
12763 root 3324 S find /lib /usr/lib -name libcurl.so* -exec strings {} ;
12764 root 3324 S grep -im1 all_proxy
12767 root 3492 S iptables -t nat -A fullcone_wan -p udp --dport 3074:3658 -j MASQUERADE --mode fullcone
12789 root 3156 S {core-watchdog.p} /bin/sh //usr/lib/opkg/info/core-watchdog.postinst configure
12822 root 12348 S /usr/bin/core-watchdog
12832 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
12840 root 3156 R {rcS} /bin/sh /etc/init.d/rcS S boot
12841 root 3828 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 194.236.188.136 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x20000000/0xf0000000
12867 root 2100 S odhcpc -i eth0 -s /usr/lib/dhcp.sh -h TeliaLXC -V TeliaLXC -r 192.168.1.2 -p /var/dhcp-eth0
12869 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call iface
12906 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
12909 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
12930 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
12937 root 3324 R {generate.sh} /bin/sh /usr/lib/qos/generate.sh firewall start
12938 root 3324 S sh
12949 root 3492 R iptables -t raw -A helper_binds -p udp --dport 69 -j CT --helper tftp
12976 root 3828 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 81.236.58.45 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x20000000/0xf0000000
12991 root 3192 S lock /var/lock/qos-generate-l2classify
13025 root 3192 S sleep 10
13036 root 3324 R N {dlnad.sh} /bin/sh /etc/rc.common /lib/functions/dlnad.sh insert_partition_section sda1
13048 root 3872 S /usr/bin/qos -q reload
13056 root 3232 S iptables -F timeofday_fw
13103 root 2188 R N uci commit
13141 root 0 SW [kworker/u4:0]
13142 root 2552 R /sbin/modprobe -q -- atm_wan_ee
13175 root 0 SW [kworker/u4:0]
13176 root 2476 R /sbin/modprobe -q -- netdev-atm_voip
13179 root 3828 S iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 10.54.3.210/32 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x40000000/ 0xf0000000
13211 root 0 SW [kworker/u4:0]
13212 root 2488 R /sbin/modprobe -q -- netdev-wl1
13225 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
13231 root 3324 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh ifup wan eth4
13232 root 3192 S lock /var/lock/LCK.mwan
13339 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call dhcp
13424 root 3568 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 81.236.63.12 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x20000000/0xf0000000
13451 root 4004 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 81.236.63.100 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x20000000/0xf0000000
13538 root 3780 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
13539 root 3656 S grep CONNMARK restore mask
13696 root 832 R N /usr/sbin/fileprofiler /tmp/run/mountd/sda1/technicolor/techinicolor-16.2.7732-2221002-20170502175933/mmpbx/confirmation.au
13733 root 2444 R /usr/sbin/dropbear -F -P /var/run/dropbear.1.pid -p 192.168.1.1:22 -p 2001:2002:d543:f07b::1:22 -I 600 -K 300 -T 3
13763 root 3192 S sleep 10
13770 root 3024 S sleep 10
13900 root 3564 R iptables -t mangle --delete mwan_rules_hook --jump mwan_rules
14037 root 3828 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 194.236.188.109 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x20000000/0xf0000000
14057 root 3192 S sleep 10
14082 root 4020 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 194.236.188.135 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x20000000/0xf0000000
14128 root 3700 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 195.67.199.0/24 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x20000000/0xf0000000
14200 root 3828 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 81.236.58.25 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x20000000/0xf0000000
14251 root 4752 D N /usr/sbin/fileprofiler /tmp/run/mountd/sda1/technicolor/techinicolor-16.2.7732-2221002-20170502175933/mmpbx/message.au
14347 root 3828 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 81.236.63.100 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x20000000/0xf0000000
14415 root 3696 R iptables -t mangle --numeric --verbose --list mwan_rules_hook
14580 root 3568 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 81.236.58.43 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x20000000/0xf0000000
14644 root 3700 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 81.236.63.33 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x20000000/0xf0000000
14665 root 3960 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 10.54.3.204/32 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x40000000/ 0xf0000000
14686 root 3568 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 10.54.3.230/32 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x40000000/ 0xf0000000
14780 root 3192 S sleep 10
14784 root 3024 S sleep 10
14817 root 3192 S lock /var/lock/LCK.mwan
14846 root 3784 S {dnsmasq} /bin/sh /etc/rc.common /etc/init.d/dnsmasq restart
14867 root 4752 R N /usr/sbin/fileprofiler /tmp/run/mountd/sda1/technicolor/etc/mmpbx/confirmation.au
14952 root 3652 S {odhcpd} /bin/sh /etc/rc.common /etc/init.d/odhcpd enabled
15063 root 3240 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 194.236.188.136 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x20000000/0xf0000000
15182 root 3192 S sleep 10
15300 root 3504 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 81.236.63.33 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x20000000/0xf0000000
15351 root 3500 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 10.54.3.231/32 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x40000000/ 0xf0000000
15370 dnsmasq 2912 S /usr/sbin/dnsmasq -C /var/etc/dnsmasq.conf.dnsmasq -k -x /var/run/dnsmasq/dnsmasq.dnsmasq.pid
15371 root 3456 S {dnsmasq} /bin/sh /etc/rc.common /etc/init.d/dnsmasq running
15374 root 2912 S /usr/sbin/dnsmasq -C /var/etc/dnsmasq.conf.dnsmasq -k -x /var/run/dnsmasq/dnsmasq.dnsmasq.pid
15375 root 3324 S {dhcp-script.sh} /bin/sh /usr/lib/dnsmasq/dhcp-script.sh old 40:aa:56:14:5f:cc 192.168.1.205
15379 root 3240 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 192.168.8.0/25 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x40000000/ 0xf0000000
15406 root 3652 S {xtm} /bin/sh /etc/rc.common /etc/init.d/xtm reload
15418 root 3632 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 131.116.22.224/27 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x40000000/ 0xf0000000
15448 root 3652 S lock /var/lock/xtm.lock
15459 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call dhcp
15494 root 3652 S {network} /bin/sh /etc/rc.common /etc/init.d/network reload
15511 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call dhcp
15597 root 2588 S bcmswconfig reset
15609 root 3324 D {hotplug-call} /bin/sh /sbin/hotplug-call neigh
15656 root 3324 S {dhcp-script.sh} /bin/sh /usr/lib/dnsmasq/dhcp-script.sh add 9e:c9:e7:9f:7e:95 192.168.1.154 s21
15662 root 2588 S bcmswconfig load network
15687 root 4752 R N /usr/sbin/fileprofiler /tmp/run/mountd/sda1/technicolor/etc/mmpbx/message.au
15737 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
15754 root 0 RW [fw3]
15762 root 4868 R fw3 -q reload
15773 root 0 Z [hotplug-call]
15774 root 0 Z [hotplug-call]
15775 root 0 Z [hotplug-call]
15776 root 0 Z [hotplug-call]
15777 root 0 Z [hotplug-call]
15778 root 0 Z [hotplug-call]
15779 root 0 Z [hotplug-call]
15780 root 0 Z [hotplug-call]
15781 root 0 Z [hotplug-call]
15784 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
15788 root 3324 S {dhcp.sh} /bin/sh ./dhcp.sh dhcp setup iptv {"proto":"dhcp","ip4table":"iptv","dnsset":"iptv","ifname":"vlan_iptv","auto":true,"reqopts":"1 3 6 15 33 42 43 51 121 249","release":true ,"iface6rd":"0","vendorid":"IPTV_RGW_PRIV","igmpversion":2,"acceptlocal":true} vlan_iptv
15790 root 3324 D {dhcp.sh} /bin/sh ./dhcp.sh dhcp setup mgmt {"proto":"dhcp","ip4table":"mgmt","dnsset":"mgmt","ifname":"vlan_mgmt","auto":true,"initboot":true,"reqopts":"1 3 6 15 33 42 43 51 121 249 ","release":true,"iface6rd":"0"} vlan_mgmt
15814 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
15815 root 3324 S {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event vlan_iptv
15822 root 2268 S odhcpc -p /var/run/odhcpc-vlan_mgmt.pid -s /lib/netifd/dhcp.script -f -o -t 0 -i vlan_mgmt -x hostname OpenWrt -C -R -O 1 -O 3 -O 6 -O 15 -O 33 -O 42 -O 43 -O 51 -O 121 -O 249 -O 121 -I /etc/udhcpc-vlan_mgmt.ip
15824 root 2268 S odhcpc -p /var/run/odhcpc-vlan_iptv.pid -s /lib/netifd/dhcp.script -f -o -t 0 -i vlan_iptv -x hostname OpenWrt -V IPTV_RGW_PRIV -C -R -O 1 -O 3 -O 6 -O 15 -O 33 -O 42 -O 43 -O 51 -O 121 -O 249 -O 121
15825 root 3324 S {dhcp.script} /bin/sh /lib/netifd/dhcp.script deconfig
15829 root 3324 R {dhcp.script} /bin/sh /lib/netifd/dhcp.script deconfig
15853 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
15855 root 3192 S lock /var/lock/pppoe-relay-tch.lock
15856 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
15865 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
15898 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
15923 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
15925 root 3324 R {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event vlan_mgmt
15952 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
15955 root 3192 S lock /var/lock/pppoe-relay-tch.lock
15978 root 3324 S {dhcp.script} /bin/sh /lib/netifd/dhcp.script bound
16015 root 3324 S {processlease} /bin/sh /usr/bin/processlease mgmt 3600
16115 root 3452 S {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear reload
16128 root 10556 S opkg install /tmp/run/mountd/sda1/ipkg//libopenssl_1.0.2t-1_arm_cortex-a9_neon.ipk
16132 root 3324 R gzip -d -c
16154 root 3024 S sleep 10
16168 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call iface
16170 root 3192 S sleep 10
16178 root 3452 S {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear reload
16198 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
16231 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
16244 root 3324 S gzip -d -c
16248 root 3324 R gzip -d -c
16276 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
16279 root 3324 S {dynamic_dns_upd} /bin/sh /usr/lib/ddns/dynamic_dns_updater.sh -n wan -- start
16282 root 2444 S /usr/sbin/dropbear -F -P /var/run/dropbear.2.pid -p 192.168.1.1:22 -p 2001:2002:d543:f07b::1:22 -I 600 -K 300 -T 3
16284 root 2444 S /usr/sbin/dropbear -F -P /var/run/dropbear.1.pid -s -g -j -p 10.138.37.154:22 -I 3600 -K 300 -T 3
16311 root 3324 S gzip -d -c
16316 root 3324 R gzip -d -c
16319 root 3324 S {dynamic_dns_upd} /bin/sh /usr/lib/ddns/dynamic_dns_updater.sh -n wan -- start
16321 root 3324 R find /lib /usr/lib -name libcurl.so* -exec strings {} ;
16323 root 3324 S grep -im1 all_proxy
16346 root 3324 R gzip -d -c
16348 root 3324 R gzip -d -c
16351 root 3324 S {dynamic_dns_upd} /bin/sh /usr/lib/ddns/dynamic_dns_updater.sh -v 0 -S myddns_ipv4 -- start
16353 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
16357 root 3324 R sh /sbin/kernel-panic-handler
16383 root 3324 S {dynamic_dns_upd} /bin/sh /usr/lib/ddns/dynamic_dns_updater.sh -v 0 -S myddns_ipv4 -- start
16384 root 3324 R find /lib /usr/lib -name libcurl.so* -exec strings {} ;
16385 root 3324 S grep -im1 all_proxy
16390 root 3652 S {sysntpd} /bin/sh /etc/rc.common /etc/init.d/sysntpd restart
16394 root 3324 R gzip -d -c
16437 root 3324 S gzip -d -c
16440 root 3324 S gzip -d -c
16451 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call iface
16490 root 3324 S {dhcp.script} /bin/sh /lib/netifd/dhcp.script bound
16528 root 3192 S sleep 10
16533 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
16543 root 3324 R {dhcp.script} /bin/sh /lib/netifd/dhcp.script bound
16552 root 3552 S < /usr/sbin/ntpd -n -N -l -S /usr/sbin/ntpd-hotplug -p ntp-cust1.telia.com -p ntp-cust2.telia.com
16570 root 3324 R {core-handler} /bin/sh /sbin/core-handler lua.16543.7.1702980350.core 16543
16592 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call iface
16625 root 3460 R gzip -c
16670 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
16677 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
16706 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
16711 root 3324 R {generate.sh} /bin/sh /usr/lib/qos/generate.sh firewall start
16712 root 3324 S sh
16765 root 3192 S lock /var/lock/qos-generate-l2classify
16768 root 3844 R ebtables -t nat -F QoS_l2classify
16809 root 3876 S /usr/bin/qos -q reload
16835 root 3324 R gzip -d -c
16838 root 3324 R gzip -d -c
16901 root 0 SW [kworker/u4:0]
16960 root 0 SW [kworker/u4:0]
16961 root 2352 R /sbin/modprobe -q -- atm_mgmt
16997 root 3192 D /sbin/reboot
17099 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
17115 root 3452 R {setup.sh} /bin/sh /usr/lib/mwan/setup.sh ifup 6rd 6rd-6rd
17129 root 3192 S lock /var/lock/LCK.mwan
17318 root 10556 S opkg install /tmp/run/mountd/sda1/ipkg//openssl-util_1.0.2t-1_arm_cortex-a9_neon.ipk
17325 root 3192 S gzip -d -c
17420 root 3324 S {processlease} /bin/sh /usr/bin/processlease iptv 21600
17427 root 3324 S {K00lxc} /bin/sh /etc/rc.common /etc/rc.d/K00lxc shutdown
17486 root 3324 R {dnsmasq.sh} /bin/sh /lib/dhcpopassthrud/dnsmasq.sh lan v4 update 43
17487 root 3324 S {K00watchdog-tch} /bin/sh /etc/rc.common /etc/rc.d/K00watchdog-tch shutdown
17533 root 0 Z [gzip]
17541 root 3324 R gzip -d -c
17553 root 3324 S {dnsmasq.sh} /bin/sh /lib/dhcpopassthrud/dnsmasq.sh lan v4 update 43
17556 root 3324 R {dnsmasq.sh} /bin/sh /lib/dhcpopassthrud/dnsmasq.sh lan v4 update 43
17559 root 3240 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 194.23.0.76 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x20000000/0xf0000000
17609 root 3324 S {K02mmpbxd} /bin/sh /etc/rc.common /etc/rc.d/K02mmpbxd shutdown
17610 root 3324 S {K04mvfs} /bin/sh /etc/rc.common /etc/rc.d/K04mvfs shutdown
17614 root 3192 S lock /tmp/.execute.lock
17643 root 3324 S gzip -d -c
17653 root 3324 S gzip -d -c
17657 root 3024 S sleep 10
17701 root 3192 S sleep 1
17708 root 3324 S {dhcp-script.sh} /bin/sh /usr/lib/dnsmasq/dhcp-script.sh old 28:ee:52:60:39:f6 192.168.1.137 C100_6039F6
17712 root 3192 S sleep 10
17765 root 3324 S {K02mmpbxd} /bin/sh /etc/rc.common /etc/rc.d/K02mmpbxd shutdown
17767 root 3456 R ps
17768 root 3324 S grep /usr/bin/mmpbxd
17769 root 3324 S grep -v grep
17796 root 3500 S iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 81.236.58.45 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x20000000/0xf0000000
17802 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call dhcp
17874 root 3324 S {K05fseventd} /bin/sh /etc/rc.common /etc/rc.d/K05fseventd shutdown
17928 root 3324 S {K06miniupnpd-tc} /bin/sh /etc/rc.common /etc/rc.d/K06miniupnpd-tch shutdown
17950 root 3324 S {K10cwmpd} /bin/sh /etc/rc.common /etc/rc.d/K10cwmpd shutdown
18001 root 3324 S {K10ddns} /bin/sh /etc/rc.common /etc/rc.d/K10ddns shutdown
18003 root 3324 S {dynamic_dns_upd} /bin/sh /usr/lib/ddns/dynamic_dns_updater.sh -- stop
18068 root 3324 S {dynamic_dns_upd} /bin/sh /usr/lib/ddns/dynamic_dns_updater.sh -- stop
18069 root 3324 D find /lib /usr/lib -name libcurl.so* -exec strings {} ;
18070 root 3324 S grep -im1 all_proxy
18131 root 3192 S sleep 10
18139 root 3324 D {K10fhcd} /bin/sh /etc/rc.common /etc/rc.d/K10fhcd shutdown
18165 root 3324 S {firewall} /bin/sh /etc/rc.common /etc/init.d/firewall reload
18190 root 3324 S {K10iperf} /bin/sh /etc/rc.common /etc/rc.d/K10iperf shutdown
18211 root 5052 S fw3 reload
18222 root 0 Z [hotplug-call]
18223 root 0 Z [hotplug-call]
18225 root 0 Z [hotplug-call]
18226 root 0 Z [hotplug-call]
18228 root 0 Z [hotplug-call]
18232 root 0 Z [hotplug-call]
18233 root 0 Z [hotplug-call]
18234 root 0 Z [hotplug-call]
18235 root 0 Z [hotplug-call]
18268 root 5104 S {assistance-help} /usr/bin/lua /sbin/assistance-helper.lua
18269 root 3456 S {K10ipsec} /bin/sh /etc/rc.common /etc/rc.d/K10ipsec shutdown
18290 root 3456 S wget http://127.0.0.1:55555/ra?remote=on_permanent_srpuci_ -O -
18330 root 3324 S {K10lcmd} /bin/sh /etc/rc.common /etc/rc.d/K10lcmd shutdown
18338 root 3456 S /usr/bin/wget http://127.0.0.1:55555/reloadWebUsers -O /dev/null
18340 root 28948 S lua /usr/bin/transformer
18348 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
18351 root 3324 S {fwdassist.sh} /bin/sh /etc/fwdassist.sh
18379 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
18387 root 3192 S lock /var/lock/pppoe-relay-tch.lock
18388 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
18412 root 3324 S {K10weburl} /bin/sh /etc/rc.common /etc/rc.d/K10weburl shutdown
18422 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
18424 root 3232 S iptables -t nat -F fullcone_voip
18484 root 3452 S {K10weburl} /bin/sh /etc/rc.common /etc/rc.d/K10weburl shutdown
18487 root 5104 S lua -e dm=require'datamodel';r=dm.get('rpc.network.interface.@mgmt.ipaddr'); if r and r[1] then print(r[1].value) end
18501 root 3500 S iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 192.168.8.0/25 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x40000000/ 0xf0000000
18550 root 3324 S {ra_forward.sh} /bin/sh /etc/ra_forward.sh
18565 root 3452 S {K10weburl} /bin/sh /etc/rc.common /etc/rc.d/K10weburl shutdown
18585 root 3232 S ip6tables -t mangle -F urlfilter-clnt
18643 root 3360 R find /sys/bus/usb/devices/3-1/ -name net
18687 root 3232 S iptables -t raw -F helper_binds
18719 root 3492 S iptables -t filter -D input_rule -p tcp --src 80.235.8.160/27 --dst 213.67.240.123 --dport 443 -j ACCEPT
18783 root 3232 S ip6tables -t mangle -F urlfilter-skip
18906 root 3324 S {ra_forward.sh} /bin/sh /etc/ra_forward.sh
18987 root 3232 S ip6tables -t mangle -X urlfilter
19010 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
19011 root 3324 S {firewall} /bin/sh /etc/rc.common /etc/init.d/firewall enabled
19035 root 1980 S flock 1000
19213 root 3324 S {K10wifi-conduct} /bin/sh /etc/rc.common /etc/rc.d/K10wifi-conductor shutdown
19239 root 3568 R iptables -t mangle -I PREROUTING 1 -p tcp --dport 80 -m addrtype --dst-type LOCAL -j timeofday_fw
19263 root 3324 S {K10wifi-doctor-} /bin/sh /etc/rc.common /etc/rc.d/K10wifi-doctor-agent shutdown
19292 root 3324 S < {ntpd-hotplug} /bin/sh /usr/sbin/ntpd-hotplug step
19301 root 3324 S < {hotplug-call} /bin/sh /sbin/hotplug-call ntp
19323 root 3324 S {K12redirecthelp} /bin/sh /etc/rc.common /etc/rc.d/K12redirecthelper shutdown
19336 root 3324 S < {hotplug-call} /bin/sh /sbin/hotplug-call ntp
19338 root 0 RW< [bulkdata]
19377 root 3324 S {K12vpn} /bin/sh /etc/rc.common /etc/rc.d/K12vpn shutdown
19423 root 3324 S {K19pinholehelpe} /bin/sh /etc/rc.common /etc/rc.d/K19pinholehelper shutdown
19474 root 3324 S {K20transformer} /bin/sh /etc/rc.common /etc/rc.d/K20transformer shutdown
19533 root 3456 R {K35nqe} /bin/sh /etc/rc.common /etc/rc.d/K35nqe shutdown
19618 root 3324 S {K36igmpproxy} /bin/sh /etc/rc.common /etc/rc.d/K36igmpproxy shutdown
19651 root 572 R /usr/bin/cwmpd
19652 root 5052 R lua /usr/bin/cwmpevents
19687 root 3836 R iptables -t filter -I zone_mgmt_input -p tcp -m tcp --src 10.0.98.251/32 --dport 22 -m comment --comment Allow_Dropbear_Conn -j ACCEPT
19715 root 3324 S {K36mldproxy} /bin/sh /etc/rc.common /etc/rc.d/K36mldproxy shutdown
19763 root 3324 R {K44mcsnooper} /bin/sh /etc/rc.common /etc/rc.d/K44mcsnooper shutdown
19764 root 3324 R {firewall} /bin/sh /etc/rc.common /etc/init.d/firewall reload
19792 root 4180 R fw3 -q reload
19803 root 3688 R fw3 reload
19808 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call firewall
19809 root 0 Z [hotplug-call]
19810 root 0 Z [hotplug-call]
19811 root 0 Z [hotplug-call]
19812 root 0 Z [hotplug-call]
19813 root 0 Z [hotplug-call]
19814 root 0 Z [hotplug-call]
19815 root 0 Z [hotplug-call]
19816 root 0 Z [hotplug-call]
19817 root 0 Z [hotplug-call]
19818 root 0 Z [hotplug-call]
19819 root 0 Z [hotplug-call]
19847 root 3324 R {K50dropbear} /bin/sh /etc/rc.common /etc/rc.d/K50dropbear shutdown
19869 root 3324 S {K70hostmanager} /bin/sh /etc/rc.common /etc/rc.d/K70hostmanager shutdown
19896 root 3324 S {K74dhcpsnooper} /bin/sh /etc/rc.common /etc/rc.d/K74dhcpsnooper shutdown
19902 root 3192 S sleep 10
19922 root 3232 S iptables -t mangle -F dhcpsnooping
19956 root 3232 R iptables -t raw -A helper_binds -p tcp --dport 5055 -j CT --helper rtsp
20017 root 3364 R [iptables]
20021 root 3364 S ip6tables -I zone_vpn_forward -m comment --comment Time-of-Day -j timeofday_fw
20073 root 3324 S {K89conntrackd} /bin/sh /etc/rc.common /etc/rc.d/K89conntrackd shutdown
20098 root 3324 S {K89log} /bin/sh /etc/rc.common /etc/rc.d/K89log shutdown
20117 root 3324 S {K89mwan} /bin/sh /etc/rc.common /etc/rc.d/K89mwan shutdown
20123 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh stop
20126 root 3192 S lock /var/lock/LCK.mwan
20157 root 3364 R iptables -t mangle --flush mwan_rules
20174 root 3324 R {load_balancer.s} /bin/sh /etc/rc.common /usr/lib/mwan/load_balancer.sh stop
20204 root 3324 S {K90network} /bin/sh /etc/rc.common /etc/rc.d/K90network shutdown
20214 root 3324 S {ifdown} /bin/sh /sbin/ifdown -a
20224 root 2348 R ubus -S list network.interface.*
20243 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
20252 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
20254 root 3192 S lock /var/lock/pppoe-relay-tch.lock
20255 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
20267 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
Process List After First Reboot
Troubleshooting
Full VBNT-H bootlog with exec commands (2024-08-05)
1 root 2840 S /sbin/procd
2 root 0 SW [kthreadd]
3 root 0 SW [ksoftirqd/0]
4 root 0 SW [kworker/0:0]
5 root 0 SW< [kworker/0:0H]
6 root 0 SW [kworker/u4:0]
7 root 0 SW [rcu_preempt]
8 root 0 SW [rcu_sched]
9 root 0 SW [rcu_bh]
10 root 0 SW [migration/0]
11 root 0 SW [migration/1]
12 root 0 SW [ksoftirqd/1]
13 root 0 SW [kworker/1:0]
14 root 0 SW< [kworker/1:0H]
15 root 0 SW< [khelper]
16 root 0 SW< [netns]
17 root 0 SW< [writeback]
18 root 0 SW [kworker/0:1]
19 root 0 SW< [crypto]
20 root 0 SW< [bioset]
21 root 0 SW< [kblockd]
22 root 0 SW [skb_free_task]
23 root 0 SW [bcmFapDrv]
24 root 0 SWN [kswapd0]
25 root 0 SW [fsnotify_mark]
38 root 0 SW< [kthrotld]
39 root 0 SW [cfinteractive]
40 root 0 SW [kworker/1:1]
41 root 0 SW< [linkwatch]
42 root 0 SW< [ipv6_addrconf]
43 root 0 SW< [deferwq]
44 root 0 SW [kworker/u4:1]
47 root 0 SW< [kworker/1:1H]
48 root 0 SW< [kworker/0:1H]
60 root 0 SWN [jffs2_gcd_mtd2]
172 root 2396 S /sbin/ubusd
173 root 3452 S /bin/ash
219 root 5492 S /usr/sbin/cgrulesengd -n -Q -u root
299 root 3192 D cat /dev/rgs_logger
304 root 0 SW [kbdmf_shell]
306 root 3324 S {S10boot} /bin/sh /etc/rc.common /etc/rc.d/S10boot boot
310 root 0 SW [kworker/u4:1]
313 root 2476 R /sbin/modprobe -q -- char-major-3022
351 root 2492 R /sbin/kmodloader
389 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
393 root 656 R ls /etc/hotplug.d/net/00-sysctl /etc/hotplug.d/net/01-qos /etc/hotplug.d/net/10_ethoam /etc/hotplug.d/net/20-smp-tune /etc/hotplug.d/net/50-pppoe-relay-tch /etc/hotplug.d/net/70-broadcom_wds
410 root 0 RW [hotplug-call]
411 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
416 root 3324 R {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event tunl0
425 root 0 SW [spdsvc_timer_th]
451 root 0 SW [spu_rx]
452 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
454 root 3192 S lock /var/lock/pppoe-relay-tch.lock
455 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
456 root 0 SW [bcmxtm_rx]
480 root 3324 D {hotplug-call} /bin/sh /sbin/hotplug-call net
505 root 0 SW [bcmFlwStatsTask]
506 root 0 SW [kworker/u4:1]
507 root 0 DW [kworker/u4:1]
515 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
530 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
531 root 3324 S {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event gre0
552 root 0 SW [bcmsw_rx]
563 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call net
589 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
595 root 0 SW [bcmsw]
607 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
610 root 3324 R {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event gretap0
643 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
646 root 3192 S lock /var/lock/pppoe-relay-tch.lock
647 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
649 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
651 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
669 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call net
688 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
691 root 3324 S {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event ip6gre0
721 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
724 root 3192 R lock /var/lock/pppoe-relay-tch.lock
759 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
778 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
779 root 3324 S {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event bcmsw
807 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
811 root 2188 R uci get network @globals[0] default_ps
813 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
834 root 3324 R lock -u /var/lock/pppoe-relay-tch.lock
840 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
851 root 0 SW [kworker/0:2]
856 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
857 root 3324 S {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event eth0
885 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
890 root 3192 S lock /var/lock/pppoe-relay-tch.lock
907 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
930 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
931 root 3324 S {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event eth1
965 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
968 root 3192 S lock /var/lock/pppoe-relay-tch.lock
969 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
970 root 0 RW [hotplug-call]
986 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
991 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
994 root 3192 R logger -t sysctl
1002 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1003 root 3324 R {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event eth2
1042 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1047 root 3192 S lock /var/lock/pppoe-relay-tch.lock
1048 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1067 root 0 SW [wl0-kthrd]
1076 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1090 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1091 root 3324 S {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event eth3
1123 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1137 root 0 SW [wfd0-thrd]
1149 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1166 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1167 root 3324 R {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event eth4
1188 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1202 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1209 root 3192 S lock /var/lock/pppoe-relay-tch.lock
1211 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1 root 2840 S /sbin/procd
2 root 0 SW [kthreadd]
3 root 0 SW [ksoftirqd/0]
4 root 0 SW [kworker/0:0]
5 root 0 SW< [kworker/0:0H]
6 root 0 SW [kworker/u4:0]
7 root 0 SW [rcu_preempt]
8 root 0 SW [rcu_sched]
9 root 0 SW [rcu_bh]
10 root 0 SW [migration/0]
11 root 0 SW [migration/1]
12 root 0 SW [ksoftirqd/1]
13 root 0 SW [kworker/1:0]
14 root 0 SW< [kworker/1:0H]
15 root 0 SW< [khelper]
16 root 0 SW< [netns]
17 root 0 SW< [writeback]
18 root 0 SW [kworker/0:1]
19 root 0 SW< [crypto]
20 root 0 SW< [bioset]
21 root 0 SW< [kblockd]
22 root 0 SW [skb_free_task]
23 root 0 SW [bcmFapDrv]
24 root 0 SWN [kswapd0]
25 root 0 SW [fsnotify_mark]
38 root 0 SW< [kthrotld]
39 root 0 SW [cfinteractive]
40 root 0 RW [kworker/1:1]
41 root 0 SW< [linkwatch]
42 root 0 SW< [ipv6_addrconf]
43 root 0 SW< [deferwq]
44 root 0 SW [kworker/u4:1]
47 root 0 SW< [kworker/1:1H]
48 root 0 SW< [kworker/0:1H]
60 root 0 SWN [jffs2_gcd_mtd2]
172 root 2396 S /sbin/ubusd
173 root 3452 S /bin/ash
219 root 5492 S /usr/sbin/cgrulesengd -n -Q -u root
304 root 0 SW [kbdmf_shell]
306 root 3324 S {S10boot} /bin/sh /etc/rc.common /etc/rc.d/S10boot boot
351 root 3976 D /sbin/kmodloader
425 root 0 SW [spdsvc_timer_th]
451 root 0 SW [spu_rx]
456 root 0 SW [bcmxtm_rx]
505 root 0 SW [bcmFlwStatsTask]
552 root 0 SW [bcmsw_rx]
595 root 0 SW [bcmsw]
851 root 0 SW [kworker/0:2]
1067 root 0 SW [wl0-kthrd]
1137 root 0 SW [wfd0-thrd]
1149 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1202 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1209 root 3192 S lock /var/lock/pppoe-relay-tch.lock
1211 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1215 root 0 RW [hotplug-call]
1237 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call net
1243 root 3324 R tail -n 1
1246 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1246 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1275 root 3192 R sort -n
1276 root 3192 R tail -n 1
1277 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1277 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1278 root 3324 S {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event eth5
1278 root 3324 S {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event eth5
1304 root 3328 R sort -n
1314 root 1836 R readlink /etc/init.d/ethoam
1325 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1334 root 0 SW [kworker/u4:0]
1335 root 2344 R /sbin/modprobe -q -- ts_kmp
1334 root 0 SW [kworker/u4:0]
1335 root 2436 R /sbin/modprobe -q -- ts_kmp
1341 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1352 root 3192 S lock /var/lock/pppoe-relay-tch.lock
1353 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1361 root 3324 R [hotplug-call]
1380 root 0 SW [kworker/u4:0]
1381 root 2492 R /sbin/modprobe -q -- nf_conntrack-2
1391 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1400 root 0 RW [ls]
1380 root 0 SW [kworker/u4:0]
1381 root 2476 R /sbin/modprobe -q -- nf_conntrack-2
1391 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1404 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1422 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1423 root 3324 R {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event wl0
1430 root 3328 S sort -n
1422 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1423 root 3324 S {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event wl0
1474 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1483 root 3192 R tee -a /tmp/bootlog.log
1484 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1492 root 3192 S lock /var/lock/pppoe-relay-tch.lock
1495 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1499 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1509 root 2188 R /sbin/uci -P /var/state -q get network pppoerelay
1515 root 3324 R [grep]
1517 root 3324 R tee -a /tmp/bootlog.log
1528 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1530 root 3192 S sleep 1
1528 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1530 root 3192 S sleep 1
1542 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1544 root 3324 R sysctl -e -p -
1560 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1561 root 3324 S {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event dsl0
1571 root 3192 R readlink /etc/init.d/ethoam
1560 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1561 root 3324 S {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event dsl0
1574 root 3192 R basename /etc/init.d/ethoam
1597 root 0 XW [ps]
1603 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1624 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1630 root 3192 S lock /var/lock/pppoe-relay-tch.lock
1631 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1634 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1624 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1630 root 3192 S lock /var/lock/pppoe-relay-tch.lock
1631 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
1716 root 3324 S tee -a /tmp/bootlog.log
1786 root 520 R [grep]
1788 root 3324 S tee -a /tmp/bootlog.log
1813 root 3324 R {S10boot} /bin/sh /etc/rc.common /etc/rc.d/S10boot boot
1813 root 3324 R {S10boot} /bin/sh /etc/rc.common /etc/rc.d/S10boot boot
1829 root 0 Z [ps]
1853 root 3324 R {S10boot} /bin/sh /etc/rc.common /etc/rc.d/S10boot boot
1853 root 3324 R {S10boot} /bin/sh /etc/rc.common /etc/rc.d/S10boot boot
1884 root 0 RW [ls]
1893 root 3324 S {reload_config} /bin/sh /sbin/reload_config
1893 root 3324 S {reload_config} /bin/sh /sbin/reload_config
2005 root 3324 S tee -a /tmp/bootlog.log
2023 root 0 RW [ps]
2057 root 2188 R uci show ipping
2086 root 2056 R uci show lcmd
2133 root 2188 R uci show mmpbx
2256 root 2056 R uci show portmirror
2285 root 2056 R uci show ra
2341 root 3192 R sort -n
2423 root 3324 R [realtime-monito]
2462 root 2840 R /sbin/procd
2462 root 3324 R {S10cgevent} /bin/sh /etc/rc.common /etc/rc.d/S10cgevent boot
2493 root 3192 R readlink /etc/rc.d/S10cgevent
2502 root 3324 S tee -a /tmp/bootlog.log
2503 root 3192 R basename
2532 root 680 R /sbin/validate_data cgevent cgevent generic enable:bool:1
2532 root 680 R /sbin/validate_data cgevent cgevent generic enable:bool:1
2571 root 3324 R tail -n 1
2574 root 3324 S {S10cgevent} /bin/sh /etc/rc.common /etc/rc.d/S10cgevent boot
2575 root 3324 R {S10cgevent} /bin/sh /etc/rc.common /etc/rc.d/S10cgevent boot
2589 root 3324 S {cgevent} /bin/sh /etc/rc.common /etc/init.d/cgevent running
2590 root 2840 R /sbin/procd
2601 root 3192 R sort -n
2589 root 3324 S {cgevent} /bin/sh /etc/rc.common /etc/init.d/cgevent running
2590 root 3108 R {S10phypower} /bin/sh /etc/rc.common /etc/rc.d/S10phypower boot
2630 root 3328 R sort -n
2631 root 3324 S tail -n 1
2654 root 3324 D {S10phypower} /bin/sh /etc/rc.common /etc/rc.d/S10phypower boot
2654 root 3324 R {S10phypower} /bin/sh /etc/rc.common /etc/rc.d/S10phypower boot
2700 root 3324 S tee -a /tmp/bootlog.log
2751 root 1920 R ethctl eth0 media-type 100FD
2755 root 3324 S tee -a /tmp/bootlog.log
2777 root 3324 S {S10phypower} /bin/sh /etc/rc.common /etc/rc.d/S10phypower boot
2777 root 3324 S {S10phypower} /bin/sh /etc/rc.common /etc/rc.d/S10phypower boot
2780 root 3324 S {S10phypower} /bin/sh /etc/rc.common /etc/rc.d/S10phypower boot
2781 root 3324 R {S10phypower} /bin/sh /etc/rc.common /etc/rc.d/S10phypower boot
2806 root 3324 S [realtime-monito]
2851 root 3324 R {S10phypower} /bin/sh /etc/rc.common /etc/rc.d/S10phypower boot
2876 root 3324 S {S10phypower} /bin/sh /etc/rc.common /etc/rc.d/S10phypower boot
2880 root 3324 S {S10phypower} /bin/sh /etc/rc.common /etc/rc.d/S10phypower boot
2876 root 3324 S {S10phypower} /bin/sh /etc/rc.common /etc/rc.d/S10phypower boot
2918 root 2840 R /sbin/procd
2918 root 8 R [procd]
3018 root 0 XW [ps]
3034 root 3324 R date -k
3034 root 3324 R date -k
3103 root 3324 R {system} /bin/sh /etc/rc.common /etc/init.d/system running
3106 root 3324 R {S10watchdog-tch} /bin/sh /etc/rc.common /etc/rc.d/S10watchdog-tch boot
3103 root 3324 S {system} /bin/sh /etc/rc.common /etc/init.d/system running
3106 root 3324 S {S10watchdog-tch} /bin/sh /etc/rc.common /etc/rc.d/S10watchdog-tch boot
3158 root 3324 R ls /lib/network/config.sh /lib/network/switch.sh /lib/network/system.sh
3162 root 3192 R sort -n
3163 root 3324 S tail -n 1
3170 root 660 R tee -a /tmp/bootlog.log
3194 root 2188 R /sbin/uci -P /var/state -S -n export network
3225 root 3324 R tail -n 1
3252 root 0 Z [sort]
3253 root 3324 R tail -n 1
3291 root 2348 R ubus -S call network.interface.adsl_dk status
3314 root 2216 R ubus -S call network.interface.vdsl_se status
3318 root 3324 S tee -a /tmp/bootlog.log
3341 root 2056 R /sbin/uci -P /var/state -S -n export watchdog
3369 root 3452 S {S10watchdog-tch} /bin/sh /etc/rc.common /etc/rc.d/S10watchdog-tch boot
3369 root 3452 S {S10watchdog-tch} /bin/sh /etc/rc.common /etc/rc.d/S10watchdog-tch boot
3425 root 2840 D /sbin/procd
3427 root 3324 R {watchdog-tch} /bin/sh /etc/rc.common /etc/init.d/watchdog-tch running
3429 root 2840 R /sbin/procd
3425 root 2840 D /sbin/procd
3427 root 3324 R {watchdog-tch} /bin/sh /etc/rc.common /etc/init.d/watchdog-tch running
3429 root 2840 R /sbin/procd
3486 root 2344 R insmod bcm_usb usb3_enable=1
3486 root 2344 R insmod bcm_usb usb3_enable=1
3542 root 3192 R tee -a /tmp/bootlog.log
3617 root 0 RW [realtime-monito]
3648 root 0 RW [grep]
3650 root 3324 S tee -a /tmp/bootlog.log
3671 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call platform
3672 root 2344 R insmod xhci-hcd
3671 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call platform
3672 root 2344 R insmod xhci-hcd
3695 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
3695 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
3721 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
3734 root 2344 R insmod ohci-hcd
3745 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
3746 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call usb
3745 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
3746 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call usb
3767 root 2344 R insmod ohci-pci
3796 root 3324 R {S11platform-gpl} /bin/sh /etc/rc.common /etc/rc.d/S11platform-gpl boot
3788 root 0 Z [realtime-monito]
3796 root 3324 R {S11platform-gpl} /bin/sh /etc/rc.common /etc/rc.d/S11platform-gpl boot
3829 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode start
3849 root 2840 R /sbin/procd
3850 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode running
3852 root 3324 D {hotplug-call} /bin/sh /sbin/hotplug-call usb
3849 root 2840 R /sbin/procd
3850 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode running
3852 root 3324 D {hotplug-call} /bin/sh /sbin/hotplug-call usb
3876 root 3324 S {S11platform-gpl} /bin/sh /etc/rc.common /etc/rc.d/S11platform-gpl boot
3915 root 3324 R {S11platform-gpl} /bin/sh /etc/rc.common /etc/rc.d/S11platform-gpl boot
3948 root 3324 S [S11platform-gpl]
3977 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
3978 root 3324 S {S11platform-gpl} /bin/sh /etc/rc.common /etc/rc.d/S11platform-gpl boot
3992 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
3992 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4003 root 3324 D {hotplug-call} /bin/sh /sbin/hotplug-call usb
4034 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4038 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode start
4059 root 0 SW [scsi_eh_0]
4063 root 0 SW< [scsi_tmf_0]
4034 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4038 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode start
4059 root 0 SW [scsi_eh_0]
4063 root 0 SW< [scsi_tmf_0]
4065 root 0 SW [usb-storage]
4065 root 0 SW [usb-storage]
4132 root 2936 R /sbin/usbmode -s
4133 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode running
4138 root 2840 R /sbin/procd
4132 root 3068 R /sbin/usbmode -s
4133 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode running
4138 root 2840 R /sbin/procd
4150 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call usb
4150 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4183 root 3324 S {S11restore} /bin/sh /etc/rc.common /etc/rc.d/S11restore boot
4183 root 3324 S {S11restore} /bin/sh /etc/rc.common /etc/rc.d/S11restore boot
4185 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4188 root 3324 R {S11restore} /bin/sh /etc/rc.common /etc/rc.d/S11restore boot
4206 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4208 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode start
4188 root 3324 R {S11restore} /bin/sh /etc/rc.common /etc/rc.d/S11restore boot
4206 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4208 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode start
4232 root 3324 S {S11sysctl} /bin/sh /etc/rc.common /etc/rc.d/S11sysctl boot
4244 root 3324 R sysctl -p -e
4251 root 3324 R {S11warmboot} /bin/sh /etc/rc.common /etc/rc.d/S11warmboot boot
4251 root 3324 R {S11warmboot} /bin/sh /etc/rc.common /etc/rc.d/S11warmboot boot
4279 root 2408 R /sbin/usbmode -s
4280 root 3324 R {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode running
4281 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call usb
4279 root 10880 S /sbin/usbmode -s
4280 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode running
4305 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4309 root 0 SW [kworker/u4:2]
4305 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4309 root 0 SW [kworker/u4:2]
4330 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4332 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode start
4348 root 3324 S {S11warmboot} /bin/sh /etc/rc.common /etc/rc.d/S11warmboot boot
4350 root 2188 R /sbin/uci -q get system @system[0] hw_reboot_count
4330 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4332 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode start
4387 root 3324 R {S11warmboot} /bin/sh /etc/rc.common /etc/rc.d/S11warmboot boot
4389 root 3324 S {S12ledfw} /bin/sh /etc/rc.common /etc/rc.d/S12ledfw boot
4413 root 2804 R /sbin/usbmode -s
4414 root 3324 R {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode running
4415 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4421 root 660 R expr substr 9/0/0 1 2
4389 root 3324 S {S12ledfw} /bin/sh /etc/rc.common /etc/rc.d/S12ledfw boot
4413 root 2804 R /sbin/usbmode -s
4414 root 3324 R {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode running
4415 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4421 root 660 R expr substr 9/0/0 1 2
4435 root 3324 R start-stop-daemon -S -x status-led-eventing.lua -p /var/run/status-led-eventing.lua.pid -m -b
4436 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4439 root 2840 D /sbin/procd
4443 root 3324 D start-stop-daemon -S -x ledfw.lua -p /var/run/ledfw.lua.pid -m -b
4452 root 3324 D {hotplug-call} /bin/sh /sbin/hotplug-call usb
4435 root 3324 R start-stop-daemon -S -x status-led-eventing.lua -p /var/run/status-led-eventing.lua.pid -m -b
4436 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4439 root 2840 D /sbin/procd
4443 root 3324 D start-stop-daemon -S -x ledfw.lua -p /var/run/ledfw.lua.pid -m -b
4452 root 3324 D {hotplug-call} /bin/sh /sbin/hotplug-call usb
4456 root 0 Z [ps]
4541 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4541 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4570 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4579 root 0 RW [seq]
4608 root 2392 R /sbin/validate_data system system cfg01e48a log_file:string log_size:uinteger log_hostname:string log_ip:ipaddr log_remote:bool:1 log_port:port:514 log_proto:or("tcp", "udp"):udp log_trailer_null:bool:0 log_prefix:string
4619 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4620 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode start
4640 root 0 RW [sort]
4641 root 3324 R tail -n 1
4619 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4620 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode start
4676 root 2840 D /sbin/procd
4677 root 2840 D /sbin/procd
4678 root 2840 D /sbin/procd
4679 root 3324 R {log} /bin/sh /etc/rc.common /etc/init.d/log running
4676 root 2840 D /sbin/procd
4677 root 2840 D /sbin/procd
4678 root 2840 D /sbin/procd
4679 root 3324 S {log} /bin/sh /etc/rc.common /etc/init.d/log running
4680 root 2840 D /sbin/procd
4689 root 2672 R /sbin/usbmode -s
4690 root 3324 R {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode running
4680 root 2840 R /sbin/procd
4689 root 3068 R /sbin/usbmode -s
4690 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode running
4710 root 3324 R [realtime-monito]
4715 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call usb
4715 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4742 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4743 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode start
4746 root 3324 D sysctl -p /etc/sysctl-tch.conf -e
4742 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4743 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode start
4746 root 3324 R sysctl -p /etc/sysctl-tch.conf -e
4786 root 3324 S {S12syslog_fwd} /bin/sh /etc/rc.common /etc/rc.d/S12syslog_fwd boot
4786 root 3324 R {S12syslog_fwd} /bin/sh /etc/rc.common /etc/rc.d/S12syslog_fwd boot
4795 root 2936 R /sbin/usbmode -s
4796 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode running
4795 root 10880 S /sbin/usbmode -s
4796 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode running
4820 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4831 root 3324 R ls /etc/hotplug.d/usb/00_wwan.sh /etc/hotplug.d/usb/12-tch_usb /etc/hotplug.d/usb/20-usb_mode /etc/hotplug.d/usb/21-samba-printer /etc/hotplug.d/usb/50-mobiled
4832 root 2056 R [uci]
4820 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4851 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4863 root 2604 S logread -f
4865 root 3324 S {S15swmdk} /bin/sh /etc/rc.common /etc/rc.d/S15swmdk boot
4851 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4863 root 2604 S logread -f
4865 root 3324 D {S15swmdk} /bin/sh /etc/rc.common /etc/rc.d/S15swmdk boot
4895 root 3324 S {S15swmdk} /bin/sh /etc/rc.common /etc/rc.d/S15swmdk boot
4895 root 3324 S {S15swmdk} /bin/sh /etc/rc.common /etc/rc.d/S15swmdk boot
4913 root 3324 R {S15swmdk} /bin/sh /etc/rc.common /etc/rc.d/S15swmdk boot
4914 root 3324 S grep AN
4913 root 444 D ethswctl -c lanwan -p 1
4914 root 3324 S grep AN
4937 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4938 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode start
4937 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
4938 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode start
4981 root 2188 R uci get env rip eth_mac
4985 root 3324 R start-stop-daemon -q -S -x /usr/bin/swmdk
4985 root 3324 D start-stop-daemon -q -S -x /usr/bin/swmdk
5013 root 3068 R /sbin/usbmode -s
5014 root 3324 R {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode running
5013 root 3068 R /sbin/usbmode -s
5014 root 3324 R {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode running
5022 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
5037 root 3324 D {hotplug-call} /bin/sh /sbin/hotplug-call usb
5022 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
5037 root 3324 D {hotplug-call} /bin/sh /sbin/hotplug-call usb
5063 root 18788 S /usr/bin/swmdk
5067 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
5075 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode start
5084 root 3324 S {S15swmdk} /bin/sh /etc/rc.common /etc/rc.d/S15swmdk boot
5063 root 18788 S /usr/bin/swmdk
5067 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
5075 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode start
5155 root 2936 R /sbin/usbmode -s
5156 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode running
5155 root 3068 R /sbin/usbmode -s
5156 root 3324 D {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode running
5179 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
5184 root 3324 S {S15swmdk} /bin/sh /etc/rc.common /etc/rc.d/S15swmdk boot
5179 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
5215 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
5233 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
5235 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode start
5233 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
5235 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode start
5282 root 3324 R {S17bcmubusbridg} /bin/sh /etc/rc.common /etc/rc.d/S17bcmubusbridge boot
5282 root 3324 R {S17bcmubusbridg} /bin/sh /etc/rc.common /etc/rc.d/S17bcmubusbridge boot
5303 root 2408 R /sbin/usbmode -s
5304 root 3324 R {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode running
5305 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call usb
5309 root 3324 S tee -a /tmp/bootlog.log
5304 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode running
5323 root 3324 S {S18dhcpopassthr} /bin/sh /etc/rc.common /etc/rc.d/S18dhcpopassthrud boot
5326 root 3324 R start-stop-daemon -q -S -b -m -p /var/run/bcmubusbridge.pid -x /usr/bin/bcmubusbridge
5331 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
5323 root 3324 S {S18dhcpopassthr} /bin/sh /etc/rc.common /etc/rc.d/S18dhcpopassthrud boot
5326 root 3324 R start-stop-daemon -q -S -b -m -p /var/run/bcmubusbridge.pid -x /usr/bin/bcmubusbridge
5331 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
5341 root 3192 R readlink /etc/rc.d/S18dhcpopassthrud
5342 root 1848 R flock 1000
5346 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
5354 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode start
5346 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call usb
5354 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode start
5380 root 3452 R logger -t dhcpopassthrud Starting DHCP option transfer daemon
5387 root 3324 D ls /lib/dhcpopassthrud/init/dnsmasq.sh
5409 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode start
5387 root 3324 D ls /lib/dhcpopassthrud/init/dnsmasq.sh
5409 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode start
5425 root 2804 R /sbin/usbmode -s
5428 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode running
5425 root 2936 R /sbin/usbmode -s
5428 root 3324 S {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode running
5436 root 0 RW [ps]
5444 root 3192 R readlink /etc/init.d/usbmode
5506 root 2840 D /sbin/procd
5508 root 3324 R {dhcpopassthrud} /bin/sh /etc/rc.common /etc/init.d/dhcpopassthrud running
5510 root 2840 R /sbin/procd
5506 root 2840 D /sbin/procd
5508 root 3324 R {dhcpopassthrud} /bin/sh /etc/rc.common /etc/init.d/dhcpopassthrud running
5510 root 2840 R /sbin/procd
5573 root 3324 S {S18hostmanager} /bin/sh /etc/rc.common /etc/rc.d/S18hostmanager boot
5631 root 2348 R ubus call service set { "name": "hostmanager", "script": "\/etc\/rc.d\/S18hostmanager", "instances": { "instance1": { "command": [ "\/usr\/bin\/hostmanager.lua" ], "respawn": [ "3600", "5", "5" ] } }, "triggers": [ [ "config.change", [ "if", [ "eq", "package", "hostmanager" ], [ "run_script", "\/etc\/init.d\/hostmanager", "reload" ] ], 1000 ] ], "data": { } }
5635 root 3324 S tee -a /tmp/bootlog.log
5636 root 2840 R /sbin/procd
5637 root 3324 S {hostmanager} /bin/sh /etc/rc.common /etc/init.d/hostmanager running
5639 root 3324 S {S18ipset} /bin/sh /etc/rc.common /etc/rc.d/S18ipset boot
5636 root 2840 R /sbin/procd
5637 root 3324 S {hostmanager} /bin/sh /etc/rc.common /etc/init.d/hostmanager running
5639 root 3324 S {S18ipset} /bin/sh /etc/rc.common /etc/rc.d/S18ipset boot
5685 root 3324 D {S18ipset} /bin/sh /etc/rc.common /etc/rc.d/S18ipset boot
5690 root 3328 R sort -n
5685 root 3324 R {S18ipset} /bin/sh /etc/rc.common /etc/rc.d/S18ipset boot
5714 root 3192 R sort -n
5738 root 3192 R sort -n
5791 root 508 D /usr/sbin/ipset -exist -
5791 root 508 D /usr/sbin/ipset -exist -
5846 root 2196 S /usr/sbin/ipset -exist -
5848 root 3328 R sort -n
5849 root 3324 S tail -n 1
5846 root 2196 S /usr/sbin/ipset -exist -
5897 root 2216 R ubus call service set { "name": "ipset", "script": "\/etc\/rc.d\/S18ipset", "instances": { }, "triggers": [ [ "config.change", [ "if", [ "eq", "package", "ipset" ], [ "run_script", "\/etc\/init.d\/ipset", "reload" ] ], 1000 ] ], "data": { } }
5907 root 3324 S {ipset} /bin/sh /etc/rc.common /etc/init.d/ipset running
5908 root 2840 R /sbin/procd
5917 root 3192 R readlink /etc/init.d/ipset
5907 root 3324 S {ipset} /bin/sh /etc/rc.common /etc/init.d/ipset running
5908 root 3192 R {S18quantenna} /bin/sh /etc/rc.common /etc/rc.d/S18quantenna boot
5976 root 3324 S {S18xtm} /bin/sh /etc/rc.common /etc/rc.d/S18xtm boot
5987 root 3324 S {S18xtm} /bin/sh /etc/rc.common /etc/rc.d/S18xtm boot
5976 root 3324 S {S18xtm} /bin/sh /etc/rc.common /etc/rc.d/S18xtm boot
5987 root 3324 S {S18xtm} /bin/sh /etc/rc.common /etc/rc.d/S18xtm boot
5992 root 3324 D {S18xtm} /bin/sh /etc/rc.common /etc/rc.d/S18xtm boot
5993 root 3324 S grep addq
5994 root 3324 S grep wred
5992 root 3324 R {S18xtm} /bin/sh /etc/rc.common /etc/rc.d/S18xtm boot
5993 root 3324 S grep addq
5994 root 3324 S grep wred
6025 root 0 RW [tee]
6067 root 2896 R lua -e require('setuptm')
6067 root 2896 D lua -e require('setuptm')
6090 root 3192 R sort -n
6091 root 3192 R tail -n 1
6114 root 3328 R sort -n
6115 root 3324 S tail -n 1
6134 root 3192 S lock /var/lock/xtm.lock
6144 root 3324 S {S18xtm} /bin/sh /etc/rc.common /etc/rc.d/S18xtm boot
6134 root 3192 S lock /var/lock/xtm.lock
6144 root 3324 S {S18xtm} /bin/sh /etc/rc.common /etc/rc.d/S18xtm boot
6145 root 3324 R {S18xtm} /bin/sh /etc/rc.common /etc/rc.d/S18xtm boot
6146 root 3324 S grep -q Showtime
6145 root 576 D xdslctl info
6146 root 3324 S grep -q Showtime
6199 root 1944 R xtmctl start
6244 root 2840 R /sbin/procd
6244 root 3324 R {S19brcm_kthrd_p} /bin/sh /etc/rc.common /etc/rc.d/S19brcm_kthrd_prios boot
6301 root 3324 R pidof khubd
6423 root 3324 R {S19brcm_kthrd_p} /bin/sh /etc/rc.common /etc/rc.d/S19brcm_kthrd_prios boot
6423 root 3324 R pidof bcmsw_rx
6473 root 3324 R pidof spu_rx
6474 root 0 RW [ps]
6536 root 3324 R pidof wfd0-thrd
6563 root 3324 S {S19brcm_kthrd_p} /bin/sh /etc/rc.common /etc/rc.d/S19brcm_kthrd_prios boot
6564 root 3456 R ps
6565 root 3324 S grep wfd1-thrd
6588 root 3324 R pidof wl0-kthrd
6614 root 3324 S {S19brcm_kthrd_p} /bin/sh /etc/rc.common /etc/rc.d/S19brcm_kthrd_prios boot
6615 root 3456 R ps
6616 root 3324 S grep wl1-kthrd
6617 root 3328 S head -1
6618 root 3324 S cut -d -f3
6649 root 3324 S {S19brcm_kthrd_p} /bin/sh /etc/rc.common /etc/rc.d/S19brcm_kthrd_prios boot
6652 root 3456 R ps
6653 root 3324 R grep dhd0_dpc
6654 root 3328 S head -1
6655 root 3324 S cut -d -f3
6680 root 3324 S {S19brcm_kthrd_p} /bin/sh /etc/rc.common /etc/rc.d/S19brcm_kthrd_prios boot
6681 root 3456 R ps
6682 root 3324 S grep dhd1_dpc
6683 root 3328 S head -1
6680 root 3324 S {S19brcm_kthrd_p} /bin/sh /etc/rc.common /etc/rc.d/S19brcm_kthrd_prios boot
6681 root 0 RW [ps]
6707 root 3324 S {S19brcm_kthrd_p} /bin/sh /etc/rc.common /etc/rc.d/S19brcm_kthrd_prios boot
6708 root 3324 R pidof wl1-kthrd
6740 root 3324 R pidof dhd0_dpc
6772 root 3456 S {S19dnsmasq} /bin/sh /etc/rc.common /etc/rc.d/S19dnsmasq boot
6772 root 3456 S {S19dnsmasq} /bin/sh /etc/rc.common /etc/rc.d/S19dnsmasq boot
6827 root 2188 R /sbin/uci -P /var/state -S -n export dhcp
6904 root 3456 S {S19dnsmasq} /bin/sh /etc/rc.common /etc/rc.d/S19dnsmasq boot
6904 root 3456 S {S19dnsmasq} /bin/sh /etc/rc.common /etc/rc.d/S19dnsmasq boot
6905 root 3456 D {S19dnsmasq} /bin/sh /etc/rc.common /etc/rc.d/S19dnsmasq boot
6906 root 3324 S grep -m1 Compile time options:
6907 root 3324 S cut -d: -f2
6905 root 3456 R {S19dnsmasq} /bin/sh /etc/rc.common /etc/rc.d/S19dnsmasq boot
6906 root 3324 S grep -m1 Compile time options:
6907 root 3324 S cut -d: -f2
7018 root 3456 R {S19dnsmasq} /bin/sh /etc/rc.common /etc/rc.d/S19dnsmasq boot
7018 root 3456 R {S19dnsmasq} /bin/sh /etc/rc.common /etc/rc.d/S19dnsmasq boot
7047 root 3192 R basename
7071 root 3324 R tail -n 1
7082 root 3192 R sort -n
7084 root 3324 S tail -n 1
7106 root 3324 R pidof dnsmasq
7266 root 3456 S {S19dnsmasq} /bin/sh /etc/rc.common /etc/rc.d/S19dnsmasq boot
7269 root 2192 R /sbin/uci -q get system @service[0] respawn_threshold
7266 root 3456 S {S19dnsmasq} /bin/sh /etc/rc.common /etc/rc.d/S19dnsmasq boot
7269 root 2192 R /sbin/uci -q get system @service[0] respawn_threshold
7429 root 2676 R /usr/sbin/dnsmasq -C /var/etc/dnsmasq.conf.dnsmasq -k -x /var/run/dnsmasq/dnsmasq.dnsmasq.pid
7432 root 3456 R {dnsmasq} /bin/sh /etc/rc.common /etc/init.d/dnsmasq running
7436 root 3324 R {S19dropbear} /bin/sh /etc/rc.common /etc/rc.d/S19dropbear boot
7429 root 2676 R /usr/sbin/dnsmasq -C /var/etc/dnsmasq.conf.dnsmasq -k -x /var/run/dnsmasq/dnsmasq.dnsmasq.pid
7432 root 3456 R {dnsmasq} /bin/sh /etc/rc.common /etc/init.d/dnsmasq running
7436 root 3324 R {S19dropbear} /bin/sh /etc/rc.common /etc/rc.d/S19dropbear boot
7499 root 2392 R /sbin/validate_data dropbear dropbear mgmt PasswordAuth:bool:1 enable:bool:1 Interface:string GatewayPorts:bool:0 RootPasswordAuth:bool:1 RootLogin:bool:1 rsakeyfile:file BannerFile:file Port:list(port):22 SSHKeepAlive:uinteger:300 IdleTimeout:uinteger:0 MaxAuthTries:uinteger:3 RecvWindowSize:uinteger:0 AllowLocalForwarding:bool:1 AllowRemoteForwarding:bool:1 mdns:bool:1
7500 root 2912 S /usr/sbin/dnsmasq -C /var/etc/dnsmasq.conf.dnsmasq -k -x /var/run/dnsmasq/dnsmasq.dnsmasq.pid
7500 root 2912 S /usr/sbin/dnsmasq -C /var/etc/dnsmasq.conf.dnsmasq -k -x /var/run/dnsmasq/dnsmasq.dnsmasq.pid
7574 root 0 RW [validate_data]
7606 root 3324 R {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear running
7600 root 0 RW [ps]
7607 root 3324 S {S19firewall} /bin/sh /etc/rc.common /etc/rc.d/S19firewall boot
7606 root 3324 S {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear running
7607 root 3324 S {S19firewall} /bin/sh /etc/rc.common /etc/rc.d/S19firewall boot
7667 root 3324 R {S19firewall} /bin/sh /etc/rc.common /etc/rc.d/S19firewall boot
7667 root 3324 R {S19firewall} /bin/sh /etc/rc.common /etc/rc.d/S19firewall boot
7867 root 3232 R ip6tables -t raw -N helper_binds
7873 root 3324 S tee -a /tmp/bootlog.log
7874 root 3232 R ip6tables -t raw -A PREROUTING -j helper_binds
7919 root 3328 S sort -n
7920 root 3324 S tail -n 1
7999 root 3192 R tee -a /tmp/bootlog.log
8045 root 3232 R iptables -t nat -N fullcone_iptv
8070 root 3232 R iptables -t nat -I postrouting_voip_rule -m comment --comment Fullcone -j fullcone_voip
8141 root 0 RW [tee]
8181 root 0 Z [sort]
8182 root 0 RW [tail]
8291 root 3232 R iptables -t nat -A fullcone_wan -p udp --dport 88 -j MASQUERADE --mode fullcone
8317 root 3232 R iptables -t raw -F helper_binds
8348 root 1836 R sort -n
8349 root 3324 S tail -n 1
8391 root 0 RW [iptables]
8397 root 3192 R tee -a /tmp/bootlog.log
8445 root 3232 R iptables -t raw -A helper_binds -p tcp --dport 554 -j CT --helper rtsp
8500 root 0 RW [uci]
8550 root 3328 R sort -n
8551 root 3324 S tail -n 1
8582 root 3324 S tee -a /tmp/bootlog.log
8647 root 3324 R [realtime-monito]
8648 root 0 RW [ip6tables]
8675 root 3232 R iptables -t mangle -D PREROUTING -p tcp --dport 80 -m addrtype ! --dst-type LOCAL -j timeofday_fw
8678 root 3192 R sort -n
8679 root 3324 S tail -n 1
8675 root 3492 R iptables -t mangle -D PREROUTING -p tcp --dport 80 -m addrtype ! --dst-type LOCAL -j timeofday_fw
8731 root 2188 R /sbin/uci -P /var/state -S -n export firewall
8823 root 0 Z [realtime-monito]
8835 root 3496 R iptables -I zone_lan_forward -m comment --comment Time-of-Day -j timeofday_fw
8850 root 3232 R iptables -I zone_Guest1_forward -m comment --comment Time-of-Day -j timeofday_fw
8862 root 3232 R ip6tables -I zone_Guest1_forward -m comment --comment Time-of-Day -j timeofday_fw
8873 root 3496 R iptables -I zone_Guest1_5GHz_forward -m comment --comment Time-of-Day -j timeofday_fw
8890 root 3192 R sort -n
8891 root 3324 S tail -n 1
8893 root 8 R [realtime-monito]
8901 root 3232 R iptables -I zone_vpn_forward -m comment --comment Time-of-Day -j timeofday_fw
9033 root 2188 R uci get firewall fwdassist reload
9081 root 3364 R iptables -t mangle -A FORWARD -p udp --dport 67 -j dhcpsnooping
9146 root 3324 R tail -n 1
9147 root 3232 R iptables -t nat -N MINIUPNPD
9157 root 3816 R fw3 -q network wan
9188 root 3364 R iptables -t nat -S zone_wan_prerouting
9215 root 3324 R tail -n 1
9248 root 3232 R iptables -t nat -N MMPBX
9294 root 3688 R fw3 -q network wan
9320 root 3324 R tail -n 1
9348 root 3232 R iptables -t filter -I zone_wan_input -j MMPBX
9356 root 3364 R ip6tables -t filter -C zone_wan_input -j MMPBX
9402 root 0 RW [sort]
9403 root 2188 R /sbin/uci -P /var/state set system mmpbx_udp ports 5060
9448 root 3688 R fw3 -q network mgmt
9486 root 0 RW [iptables]
9507 root 3784 R ip6tables -t filter -I zone_mgmt_input -p tcp -m tcp --src 2001:2011:c001::/48 --dport 22 -m comment --comment Allow_Dropbear_Conn -j ACCEPT
9537 root 3232 R iptables -t filter -I zone_mgmt_input -p tcp -m tcp --src 81.227.117.202/32 --dport 22 -m comment --comment Allow_Dropbear_Conn -j ACCEPT
9566 root 3756 R iptables -t filter -I zone_mgmt_input -p tcp -m tcp --src 81.236.57.82/32 --dport 22 -m comment --comment Allow_Dropbear_Conn -j ACCEPT
9592 root 3232 R iptables -t nat -I zone_wan_prerouting -p tcp -m tcp --dport 60022 -m comment --comment DMZ_Exception_Dropbear -j ACCEPT
9588 root 0 RW [ps]
9592 root 3232 R iptables -t nat -I zone_wan_prerouting -p tcp -m tcp --dport 60022 -m comment --comment DMZ_Exception_Dropbear -j ACCEPT
9612 root 0 RW [ip6tables]
9669 root 3324 R tail -n 1
9696 root 3328 S sort -n
9697 root 3324 S tail -n 1
9717 root 3324 S {firewall} /bin/sh /etc/rc.common /etc/init.d/firewall running
9718 root 2840 R /sbin/procd
9717 root 3324 S {firewall} /bin/sh /etc/rc.common /etc/init.d/firewall running
9718 root 2840 R /sbin/procd
9772 root 3324 R {S19hostapd} /bin/sh /etc/rc.common /etc/rc.d/S19hostapd boot
9770 root 0 RW [ps]
9772 root 3324 R {S19hostapd} /bin/sh /etc/rc.common /etc/rc.d/S19hostapd boot
9884 root 2188 R uci get wireless wl2_3
9908 root 3324 R {fix_uci_config.} /bin/sh /lib/wireless/fix_uci_config.sh
9908 root 3324 R {fix_uci_config.} /bin/sh /lib/wireless/fix_uci_config.sh
9957 root 3324 S {init_broadcom.s} /bin/sh /lib/wireless/init_broadcom.sh
9968 root 3324 R {init_broadcom.s} /bin/sh /lib/wireless/init_broadcom.sh
9957 root 3324 S {init_broadcom.s} /bin/sh /lib/wireless/init_broadcom.sh
9968 root 3324 S {init_broadcom.s} /bin/sh /lib/wireless/init_broadcom.sh
9972 root 3324 R {init_broadcom.s} /bin/sh /lib/wireless/init_broadcom.sh
9973 root 3324 S cut -d -f 2
9978 root 3332 S tr (
9979 root 3332 S tr )
9972 root 3324 R {init_broadcom.s} /bin/sh /lib/wireless/init_broadcom.sh
9973 root 3324 S cut -d -f 2
9978 root 3332 S tr (
9979 root 3332 S tr )
10039 root 3192 R tee -a /tmp/bootlog.log
10061 root 0 RW [grep]
10062 root 3324 R [grep]
10063 root 3324 S tee -a /tmp/bootlog.log
10127 root 0 RW [ps]
10170 root 2592 R wl -i wl0 country E0/41
10171 root 0 SW [kworker/1:2]
10171 root 0 SW [kworker/1:2]
10201 root 3324 S {init_broadcom.s} /bin/sh /lib/wireless/init_broadcom.sh
10243 root 3324 D {init_broadcom.s} /bin/sh /lib/wireless/init_broadcom.sh
10243 root 3324 R {init_broadcom.s} /bin/sh /lib/wireless/init_broadcom.sh
10315 root 2592 D wl -i wl1 nar 0
10321 root 0 SW [kworker/u4:2]
10322 root 2352 R /sbin/modprobe -q -- netdev-wl1
10315 root 2592 D wl -i wl1 nar 0
10321 root 0 SW [kworker/u4:2]
10322 root 2644 R /sbin/modprobe -q -- netdev-wl1
10347 root 0 SW [kworker/u4:2]
10349 root 2372 R /sbin/modprobe -q -- wl1
10347 root 0 SW [kworker/u4:2]
10349 root 2436 R /sbin/modprobe -q -- wl1
10370 root 2592 D wl -i wl2 nar 0
10377 root 0 SW [kworker/u4:2]
10370 root 2592 D wl -i wl2 nar 0
10377 root 0 SW [kworker/u4:2]
10381 root 2348 R /sbin/modprobe -q -- netdev-wl2
10400 root 0 SW [kworker/u4:2]
10402 root 2344 R /sbin/modprobe -q -- wl2
10400 root 0 SW [kworker/u4:2]
10402 root 2436 R /sbin/modprobe -q -- wl2
10430 root 488 R wl -i wl0 phylist
10430 root 488 R wl -i wl0 phylist
10433 root 2592 D wl -i wl1 phylist
10442 root 0 SW [kworker/u4:2]
10443 root 2508 R /sbin/modprobe -q -- netdev-wl1
10433 root 2592 D wl -i wl1 phylist
10442 root 0 SW [kworker/u4:2]
10443 root 2476 R /sbin/modprobe -q -- netdev-wl1
10468 root 0 SW [kworker/u4:2]
10471 root 2480 R /sbin/modprobe -q -- wl1
10468 root 0 SW [kworker/u4:2]
10471 root 2476 R /sbin/modprobe -q -- wl1
10484 root 3452 R [ps]
10516 root 3324 S {hostapd_env.sh} /bin/sh /usr/sbin/hostapd_env.sh /tmp/hostapd.env
10539 root 3324 S {hostapd_env.sh} /bin/sh /usr/sbin/hostapd_env.sh /tmp/hostapd.env
10516 root 3324 S {hostapd_env.sh} /bin/sh /usr/sbin/hostapd_env.sh /tmp/hostapd.env
10572 root 3324 S {hostapd_env.sh} /bin/sh /usr/sbin/hostapd_env.sh /tmp/hostapd.env
10570 root 0 RW [ps]
10572 root 3324 S {hostapd_env.sh} /bin/sh /usr/sbin/hostapd_env.sh /tmp/hostapd.env
10576 root 3324 R {hostapd_env.sh} uci get env.var.prod_friendly_name
10604 root 2056 R uci get env.var.ssid_prefix
10598 root 0 RW [realtime-monito]
10604 root 0 RW [uci]
10652 root 3324 D {S19hostapd} /bin/sh /etc/rc.common /etc/rc.d/S19hostapd boot
10652 root 3324 D {S19hostapd} /bin/sh /etc/rc.common /etc/rc.d/S19hostapd boot
10682 root 3192 R sort -n
10776 root 5088 D hostapd -bund -p /var/run/hostapd.pid -e /tmp/hostapd.env
10777 root 3192 S sleep 1
10776 root 5088 D hostapd -bund -p /var/run/hostapd.pid -e /tmp/hostapd.env
10777 root 3192 S sleep 1
10796 root 0 SW [kworker/u4:2]
10799 root 2352 R /sbin/modprobe -q -- netdev-wl1
10824 root 0 SW [kworker/u4:2]
10824 root 0 SW [kworker/u4:2]
10825 root 2476 R /sbin/modprobe -q -- wl1
10854 root 0 SW [kworker/u4:2]
10855 root 2344 R /sbin/modprobe -q -- netdev-wl2
10854 root 0 SW [kworker/u4:2]
10855 root 2484 R /sbin/modprobe -q -- netdev-wl2
10876 root 0 SW [kworker/u4:2]
10877 root 0 RW [modprobe]
10950 root 3328 S sort -n
10951 root 3324 S tail -n 1
10967 root 0 SW [kworker/u4:2]
10968 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
10969 root 2352 R /sbin/modprobe -q -- netdev-wl0_1
10967 root 0 SW [kworker/u4:2]
10968 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
10969 root 2568 R /sbin/modprobe -q -- netdev-wl0_1
10982 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
10984 root 3324 S {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event wl0_1
10991 root 3192 S sleep 1
10991 root 3192 S sleep 1
11019 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
11023 root 0 SW [kworker/u4:2]
11028 root 2436 R /sbin/modprobe -q -- wl0_1
11039 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
11046 root 3192 S lock /var/lock/pppoe-relay-tch.lock
11047 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
11049 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
11053 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
11023 root 0 SW [kworker/u4:2]
11028 root 2568 R /sbin/modprobe -q -- wl0_1
11039 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
11046 root 3192 S lock /var/lock/pppoe-relay-tch.lock
11047 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
11049 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
11167 root 3192 S sleep 1
11167 root 3192 S sleep 1
11176 root 3324 S [realtime-monito]
11257 root 3192 R tee -a /tmp/bootlog.log
11306 root 3328 S sort -n
11308 root 0 RW [tail]
11332 root 0 RW [realtime-monito]
11346 root 3192 S sleep 1
11346 root 3192 S sleep 1
11426 root 3324 S tee -a /tmp/bootlog.log
11467 root 0 RW [tail]
11523 root 3324 S {S19pre-mwan} /bin/sh /etc/rc.common /etc/rc.d/S19pre-mwan boot
11523 root 3324 S {S19pre-mwan} /bin/sh /etc/rc.common /etc/rc.d/S19pre-mwan boot
11542 root 3324 R {S19pre-mwan} /bin/sh /etc/rc.common /etc/rc.d/S19pre-mwan boot
11542 root 3324 R {setup.sh} /bin/sh /usr/lib/mwan/setup.sh boot
11574 root 3192 S lock /var/lock/LCK.mwan
11574 root 3192 S lock /var/lock/LCK.mwan
11663 root 0 SW [kworker/1:3]
11663 root 0 SW [kworker/1:3]
11706 root 2188 R /sbin/uci -P /var/state set mwan mgmt_only id 4
11726 root 2056 R /sbin/uci -P /var/state set mwan.mgmt_only.nfmark=0x40000000
11759 root 2188 R uci get network iptv ip4table
11790 root 2056 R uci get network.mgmt.ip4table
11816 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh boot
11819 root 2188 R /sbin/uci -P /var/state -q get mwan iptv_only nfmark
11816 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh boot
11844 root 0 RW [ps]
11879 root 3324 S {S19spu} /bin/sh /etc/rc.common /etc/rc.d/S19spu boot
11900 root 3324 D {S19spu} /bin/sh /etc/rc.common /etc/rc.d/S19spu boot
11879 root 3324 S {S19spu} /bin/sh /etc/rc.common /etc/rc.d/S19spu boot
11900 root 3324 R {S19spu} /bin/sh /etc/rc.common /etc/rc.d/S19spu boot
11926 root 3328 S [sort]
11927 root 0 RW [tail]
11964 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
11976 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
11982 root 3324 R logger -t sysctl
11964 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
11991 root 2840 R /sbin/procd
11998 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
12001 root 3324 R {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event spu_us_dummy
12002 root 3324 R [realtime-monito]
11991 root 3324 S {S19xdsl} /bin/sh /etc/rc.common /etc/rc.d/S19xdsl boot
11998 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
12001 root 3324 S {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event spu_us_dummy
12051 root 2940 R xdslctl start --up --mod dlt2empv --profile 8a 8b 8c 8d 12a 12b 17a --phycfg 0x90447a 0x90447a 0 0x390000 0x390000 0x19060003 0x19060003 0x01200800 0x01200600 0x0 0x0
12051 root 2940 R xdslctl start --up --mod dlt2empv --profile 8a 8b 8c 8d 12a 12b 17a --phycfg 0x90447a 0x90447a 0 0x390000 0x390000 0x19060003 0x19060003 0x01200800 0x01200600 0x0 0x0
12057 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
12058 root 3192 R lock /var/lock/pppoe-relay-tch.lock
12062 root 0 Z [realtime-monito]
12092 root 0 SW [dsl0]
12092 root 0 SW [dsl0]
12096 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
12121 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
12122 root 3324 S {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event spu_ds_dummy
12096 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
12121 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
12122 root 3324 S {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event spu_ds_dummy
12162 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
12172 root 3192 S lock /var/lock/pppoe-relay-tch.lock
12173 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
12181 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
12162 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
12172 root 3192 S lock /var/lock/pppoe-relay-tch.lock
12362 root 0 SW [kworker/u4:2]
12363 root 3004 R /sbin/modprobe -q -- netdev-br-lan
12383 root 0 SW [kworker/u4:2]
12384 root 2436 R /sbin/modprobe -q -- br-lan
12383 root 0 SW [kworker/u4:2]
12384 root 2476 R /sbin/modprobe -q -- br-lan
12418 root 0 SW [kworker/u4:2]
12419 root 2436 R /sbin/modprobe -q -- netdev-vlan_eth5
12418 root 0 SW [kworker/u4:2]
12419 root 2484 R /sbin/modprobe -q -- netdev-vlan_eth5
12449 root 0 SW [kworker/u4:2]
12450 root 2372 R /sbin/modprobe -q -- vlan_eth5
12449 root 0 SW [kworker/u4:2]
12450 root 2344 R /sbin/modprobe -q -- vlan_eth5
12478 root 3324 R {S19xdsl} /bin/sh /etc/rc.common /etc/rc.d/S19xdsl boot
12478 root 3324 R {S19xdsl} /bin/sh /etc/rc.common /etc/rc.d/S19xdsl boot
12525 root 3192 R sort -n
12554 root 2840 R /sbin/procd
12595 root 2840 R /sbin/procd
12595 root 3324 S {S20ethernet} /bin/sh /etc/rc.common /etc/rc.d/S20ethernet boot
12613 root 3080 R lua -e require('setuptm')
12645 root 3324 S {S20ethernet} /bin/sh /etc/rc.common /etc/rc.d/S20ethernet boot
12646 root 2024 R ethswctl getifname 0 1
12695 root 3324 R {S20ethernet} /bin/sh /etc/rc.common /etc/rc.d/S20ethernet boot
12783 root 3324 R {S20ethernet} /bin/sh /etc/rc.common /etc/rc.d/S20ethernet boot
12783 root 3324 R {S20ethernet} /bin/sh /etc/rc.common /etc/rc.d/S20ethernet boot
12828 root 404 R /usr/bin/tmctl porttmuninit --devtype 0 --if eth0
12922 root 2572 R /usr/bin/tmctl porttminit --devtype 0 --if eth0 --flag 0x0001
12952 root 2440 R /usr/bin/tmctl porttmuninit --devtype 0 --if eth2
12976 root 3184 R sort -n
12977 root 3324 S tail -n 1
12983 root 2572 R /usr/bin/tmctl porttminit --devtype 0 --if eth3 --flag 0x0001
13012 root 2572 R /usr/bin/tmctl porttminit --devtype 0 --if eth4 --flag 0x0001
13042 root 3192 R sort -n
13043 root 3324 S tail -n 1
13053 root 2572 R /usr/bin/tmctl porttminit --devtype 0 --if eth5 --flag 0x0001
13076 root 3324 S [sh]
13138 root 3100 R lua /usr/bin/setuprunner lan
13150 root 2896 R lua -e local setuptm = require('setuptm') setuptm.enable_logging(false) setuptm.enable_tmctl_logging(false) ; setuptm.reload('ethernet')
13150 root 3184 R lua -e local setuptm = require('setuptm') setuptm.enable_logging(false) setuptm.enable_tmctl_logging(false) ; setuptm.reload('ethernet')
13244 root 0 RW [tmctl]
13244 root 0 RW [tmctl]
13272 root 3324 R {S20ethernet} /bin/sh /etc/rc.common /etc/rc.d/S20ethernet boot
13291 root 3192 R tail -n 1
13272 root 3324 R {S20ethernet} /bin/sh /etc/rc.common /etc/rc.d/S20ethernet boot
13342 root 3324 S {S20ethernet} /bin/sh /etc/rc.common /etc/rc.d/S20ethernet boot
13346 root 3324 S {S20ethernet} /bin/sh /etc/rc.common /etc/rc.d/S20ethernet boot
13349 root 3324 S {S20ethernet} /bin/sh /etc/rc.common /etc/rc.d/S20ethernet boot
13351 root 3324 S {S20ethernet} /bin/sh /etc/rc.common /etc/rc.d/S20ethernet boot
13352 root 3324 S {S20ethernet} /bin/sh /etc/rc.common /etc/rc.d/S20ethernet boot
13355 root 3324 S {S20ethernet} /bin/sh /etc/rc.common /etc/rc.d/S20ethernet boot
13342 root 3324 S {S20ethernet} /bin/sh /etc/rc.common /etc/rc.d/S20ethernet boot
13346 root 3324 D {S20ethernet} /bin/sh /etc/rc.common /etc/rc.d/S20ethernet boot
13349 root 3324 S {S20ethernet} /bin/sh /etc/rc.common /etc/rc.d/S20ethernet boot
13352 root 3324 R {S20ethernet} /bin/sh /etc/rc.common /etc/rc.d/S20ethernet boot
13355 root 3324 S {S20ethernet} /bin/sh /etc/rc.common /etc/rc.d/S20ethernet boot
13481 root 0 SW [kworker/u4:2]
13483 root 0 RW [modprobe]
13481 root 0 SW [kworker/u4:2]
13483 root 0 RW [modprobe]
13510 root 2840 R /sbin/procd
13535 root 0 SW [kworker/u4:2]
13536 root 2760 R /sbin/modprobe -q -- netdev-vlan_eth5
13510 root 3324 R {S20network} /bin/sh /etc/rc.common /etc/rc.d/S20network boot
13535 root 0 SW [kworker/u4:2]
13536 root 2476 R /sbin/modprobe -q -- netdev-vlan_eth5
13651 root 0 RW [tee]
13673 root 3452 D {S20network} /bin/sh /etc/rc.common /etc/rc.d/S20network boot
13673 root 3452 R {S20network} /bin/sh /etc/rc.common /etc/rc.d/S20network boot
13726 root 3192 R sort -n
13727 root 3192 R tail -n 1
13742 root 3452 R {S20network} /bin/sh /etc/rc.common /etc/rc.d/S20network boot
13742 root 3452 R {S20network} /bin/sh /etc/rc.common /etc/rc.d/S20network boot
13774 root 3324 R [grep]
13775 root 3324 S tee -a /tmp/bootlog.log
13867 root 2260 S bcmswconfig load network
13867 root 2260 S bcmswconfig load network
13968 root 0 RW [mdkshell]
14053 root 3452 R {S20network} /bin/sh /etc/rc.common /etc/rc.d/S20network boot
14053 root 2524 R /sbin/validate_data network atm-bridge unit:uinteger:0 vci:range(32, 65535):35 vpi:range(0, 255):8 atmdev:uinteger:0 encaps:or("llc", "vc"):llc payload:or("bridged", "routed"):bridged
14111 root 2840 R /sbin/procd
14112 root 3324 S {network} /bin/sh /etc/rc.common /etc/init.d/network running
14121 root 2840 D /sbin/procd
14111 root 2840 R /sbin/procd
14112 root 3324 S {network} /bin/sh /etc/rc.common /etc/init.d/network running
14121 root 2840 D /sbin/procd
14175 root 3324 D {S20power} /bin/sh /etc/rc.common /etc/rc.d/S20power boot
14179 root 3324 R {464xlat.sh} /bin/sh ./464xlat.sh dump
14175 root 3324 R {S20power} /bin/sh /etc/rc.common /etc/rc.d/S20power boot
14179 root 3324 R {464xlat.sh} /bin/sh ./464xlat.sh dump
14220 root 3324 R {6in4.sh} /bin/sh ./6in4.sh dump
14220 root 3324 R {6in4.sh} /bin/sh ./6in4.sh dump
14238 root 3324 S {S20usbmode} /bin/sh /etc/rc.common /etc/rc.d/S20usbmode boot
14238 root 3324 S {S20usbmode} /bin/sh /etc/rc.common /etc/rc.d/S20usbmode boot
14253 root 3324 S {6rd.sh} /bin/sh ./6rd.sh dump
14261 root 3192 R tee -a /tmp/bootlog.log
14288 root 2540 R /sbin/usbmode -s
14289 root 3324 R {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode running
14290 root 2840 R /sbin/procd
14288 root 2936 R /sbin/usbmode -s
14289 root 3324 R {usbmode} /bin/sh /etc/rc.common /etc/init.d/usbmode running
14290 root 2840 R /sbin/procd
14292 root 3324 R {6to4.sh} /bin/sh ./6to4.sh dump
14343 root 3324 R {dhcp.sh} /bin/sh ./dhcp.sh dump
14374 root 3324 R {S21conntrackd} /bin/sh /etc/rc.common /etc/rc.d/S21conntrackd boot
14343 root 3324 R {dhcp.sh} /bin/sh ./dhcp.sh dump
14373 root 3324 S [realtime-monito]
14389 root 2840 D /sbin/procd
14390 root 3324 S {conntrackd} /bin/sh /etc/rc.common /etc/init.d/conntrackd running
14394 root 2840 R /sbin/procd
14389 root 2840 D /sbin/procd
14390 root 3324 S {conntrackd} /bin/sh /etc/rc.common /etc/init.d/conntrackd running
14394 root 2840 R /sbin/procd
14438 root 3324 R {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
14442 root 3324 S tee -a /tmp/bootlog.log
14438 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
14453 root 3192 S lock /var/lock/LCK.mwan
14458 root 2188 R /sbin/uci -P /var/state -S -n export mwan
14453 root 3192 S lock /var/lock/LCK.mwan
14464 root 0 SW [kworker/u4:2]
14466 root 2344 D /sbin/modprobe -q -- netdev-br-lan
14464 root 0 SW [kworker/u4:2]
14466 root 2368 R /sbin/modprobe -q -- netdev-br-lan
14523 root 0 SW [kworker/u4:2]
14524 root 2436 R /sbin/modprobe -q -- br-lan
14547 root 2056 R /sbin/uci -P /var/state set mwan.iptv_only.nfmark=0x20000000
14551 root 0 SW [kworker/u4:2]
14554 root 2552 R /sbin/modprobe -q -- netdev-vlan_eth5
14578 root 0 SW [kworker/u4:2]
14580 root 2436 R /sbin/modprobe -q -- vlan_eth5
14592 root 0 SW [kworker/u4:2]
14593 root 2476 R /sbin/modprobe -q -- nfnetlink-subsys-1
14601 root 3324 R {dslite.sh} /bin/sh ./dslite.sh dump
14617 root 0 SW [kworker/u4:2]
14601 root 3324 R {dslite.sh} /bin/sh ./dslite.sh dump
14617 root 0 SW [kworker/u4:2]
14621 root 2352 R /sbin/modprobe -q -- nfnetlink-subsys-1
14622 root 2348 S ubus call network.interface dump
14621 root 2476 R /sbin/modprobe -q -- nfnetlink-subsys-1
14622 root 2348 S ubus call network.interface dump
14645 root 3328 S sort -n
14646 root 3324 S tail -n 1
14648 root 3192 R {gre.sh} /bin/sh ./gre.sh dump
14663 root 0 SW [kworker/u4:2]
14664 root 2344 R /sbin/modprobe -q -- nfnetlink-subsys-1
14648 root 3324 S {gre.sh} /bin/sh ./gre.sh dump
14663 root 0 SW [kworker/u4:2]
14664 root 2420 R /sbin/modprobe -q -- nfnetlink-subsys-1
14725 root 3192 R tail -n 1
14818 root 0 RW [realtime-monito]
14833 root 3324 S {ipip.sh} /bin/sh ./ipip.sh dump
14885 root 3460 R {map.sh} /bin/sh ./map.sh dump
14885 root 3460 R {map.sh} /bin/sh ./map.sh dump
14910 root 3192 R tee -a /tmp/bootlog.log
14931 root 2128 R jshn -w
14937 root 3324 R {mobiled.sh} /bin/sh ./mobiled.sh dump
14970 root 3324 R {ppp.sh} /bin/sh ./ppp.sh dump
14970 root 3452 S {ppp.sh} /bin/sh ./ppp.sh dump
15031 root 3324 R {pppoa-brcm.sh} /bin/sh ./pppoa-brcm.sh dump
15031 root 3324 R {pppoa-brcm.sh} /bin/sh ./pppoa-brcm.sh dump
15130 root 0 RW [tee]
15148 root 3192 R sort -n
15149 root 3324 S tail -n 1
15211 root 3324 R {qmi.sh} /bin/sh ./qmi.sh dump
15263 root 3324 R {atheros.sh} /bin/sh ./atheros.sh dump
15263 root 3324 S {atheros.sh} /bin/sh ./atheros.sh dump
15317 root 3324 R {broadcom.sh} /bin/sh ./broadcom.sh dump
15317 root 3324 R {broadcom.sh} /bin/sh ./broadcom.sh dump
15362 root 3324 R {lantiq.sh} /bin/sh ./lantiq.sh dump
15369 root 3192 R sort -n
15370 root 3192 R tail -n 1
15381 root 3324 R {qcacld.sh} /bin/sh ./qcacld.sh dump
15399 root 0 SW [kworker/u4:2]
15400 root 2476 R /sbin/modprobe -q -- netdev-vlan_eth0
15418 root 0 SW [kworker/u4:2]
15419 root 2476 R /sbin/modprobe -q -- vlan_eth0
15434 root 0 SW [kworker/u4:2]
15436 root 2360 R /sbin/modprobe -q -- netdev-vlan_eth1
15434 root 0 SW [kworker/u4:2]
15436 root 2508 R /sbin/modprobe -q -- netdev-vlan_eth1
15476 root 0 SW [kworker/u4:2]
15477 root 2568 R /sbin/modprobe -q -- vlan_eth1
15476 root 0 SW [kworker/u4:2]
15477 root 2492 R /sbin/modprobe -q -- vlan_eth1
15492 root 0 RW [ps]
15496 root 0 SW [kworker/u4:2]
15497 root 2360 R /sbin/modprobe -q -- br-lan
15522 root 0 SW [kworker/u4:2]
15523 root 2212 R /sbin/modprobe -q -- netdev-vlan_eth2
15496 root 0 SW [kworker/u4:2]
15497 root 2552 R /sbin/modprobe -q -- br-lan
15522 root 0 SW [kworker/u4:2]
15523 root 2352 R /sbin/modprobe -q -- netdev-vlan_eth2
15563 root 0 SW [kworker/u4:2]
15565 root 2492 R /sbin/modprobe -q -- vlan_eth2
15563 root 0 SW [kworker/u4:2]
15565 root 2552 R /sbin/modprobe -q -- vlan_eth2
15593 root 3192 R tee -a /tmp/bootlog.log
15604 root 0 SW [kworker/u4:2]
15612 root 2372 R /sbin/modprobe -q -- netdev-vlan_eth3
15640 root 0 SW [kworker/u4:2]
15641 root 2508 R /sbin/modprobe -q -- netdev-vlan_eth5
15661 root 0 SW [kworker/u4:2]
15662 root 2436 R /sbin/modprobe -q -- vlan_eth5
15679 root 0 SW [kworker/u4:2]
15680 root 2344 R /sbin/modprobe -q -- netdev-ptm0
15679 root 0 SW [kworker/u4:2]
15680 root 2508 R /sbin/modprobe -q -- netdev-ptm0
15703 root 3192 R sort -n
15717 root 0 SW [kworker/u4:2]
15718 root 2360 R /sbin/modprobe -q -- ptm0
15717 root 0 SW [kworker/u4:2]
15718 root 2436 R /sbin/modprobe -q -- ptm0
15752 root 0 SW [kworker/u4:2]
15754 root 2352 R /sbin/modprobe -q -- netdev-phy_eth4
15752 root 0 SW [kworker/u4:2]
15754 root 2552 R /sbin/modprobe -q -- netdev-phy_eth4
15769 root 0 SW [kworker/u4:2]
15771 root 2476 R /sbin/modprobe -q -- phy_eth4
15840 root 0 SW [kworker/u4:2]
15841 root 2484 R /sbin/modprobe -q -- vlane_data_dk
15840 root 0 SW [kworker/u4:2]
15841 root 2476 R /sbin/modprobe -q -- vlane_data_dk
15868 root 0 SW [kworker/u4:2]
15869 root 2348 R /sbin/modprobe -q -- atm_wan
15889 root 3192 R sort -n
15890 root 3324 S tail -n 1
15868 root 0 SW [kworker/u4:2]
15869 root 2552 R /sbin/modprobe -q -- atm_wan
15907 root 0 SW [kworker/u4:2]
15908 root 2476 R /sbin/modprobe -q -- netdev-vlan_iptv
15924 root 0 SW [kworker/u4:2]
15925 root 2508 R /sbin/modprobe -q -- vlan_iptv
15939 root 0 SW [kworker/u4:2]
15944 root 2368 R /sbin/modprobe -q -- netdev-vlan_voip
15939 root 0 SW [kworker/u4:2]
15944 root 2552 R /sbin/modprobe -q -- netdev-vlan_voip
15974 root 0 SW [kworker/u4:2]
15975 root 2352 R /sbin/modprobe -q -- netdev-vlan_mgmt
15996 root 0 SW [kworker/u4:2]
15998 root 2476 R /sbin/modprobe -q -- vlan_mgmt
16025 root 0 SW [kworker/u4:2]
16026 root 2212 R /sbin/modprobe -q -- br-lan
16025 root 0 SW [kworker/u4:2]
16026 root 2372 R /sbin/modprobe -q -- br-lan
16032 root 0 RW [grep]
16033 root 3324 S tee -a /tmp/bootlog.log
16064 root 0 SW [kworker/u4:2]
16067 root 2344 R /sbin/modprobe -q -- netdev-wl1_1
16064 root 0 SW [kworker/u4:2]
16067 root 2352 R /sbin/modprobe -q -- netdev-wl1_1
16108 root 0 SW [kworker/u4:2]
16109 root 2436 R /sbin/modprobe -q -- wl1_1
16108 root 0 SW [kworker/u4:2]
16109 root 2476 R /sbin/modprobe -q -- wl1_1
16146 root 0 SW [kworker/u4:2]
16147 root 2352 R /sbin/modprobe -q -- netdev-atm_wan_dk
16146 root 0 SW [kworker/u4:2]
16147 root 2552 R /sbin/modprobe -q -- netdev-atm_wan_dk
16183 root 0 SW [kworker/u4:2]
16184 root 2492 R /sbin/modprobe -q -- atm_wan_dk
16198 root 0 SW [kworker/u4:2]
16199 root 2476 R /sbin/modprobe -q -- netdev-atm_wan_fi
16224 root 0 SW [kworker/u4:2]
16225 root 2344 R /sbin/modprobe -q -- atm_wan_fi
16224 root 0 SW [kworker/u4:2]
16225 root 2476 R /sbin/modprobe -q -- atm_wan_fi
16262 root 0 SW [kworker/u4:2]
16282 root 0 SW [kworker/u4:2]
16283 root 2344 R /sbin/modprobe -q -- atm_wan_ee
16282 root 0 SW [kworker/u4:2]
16283 root 2476 R /sbin/modprobe -q -- atm_wan_ee
16310 root 0 RW [grep]
16312 root 3192 R tee -a /tmp/bootlog.log
16327 root 0 SW [kworker/u4:2]
16329 root 2508 R /sbin/modprobe -q -- netdev-vlan_data
16359 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16359 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16391 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
16392 root 3324 R {mobiled.sh} /bin/sh ./mobiled.sh mobiled setup wwan {"auto":true,"metric":10,"proto":"mobiled","session_id":0,"profile":"1"}
16393 root 3324 S {broadcom.sh} /bin/sh ./broadcom.sh broadcom setup radio_2G {"config":{"channel":"auto"},"interfaces":{"0":{"bridge":"br-lan","config":{"mode":"ap","state":1,"ssid":"Telia-EC7351","mode":"ap","network":["lan"]}},"1":{"config":{"mode":"ap","state":1,"ssid":"Guest-EC7351","mode":"ap","network":["Guest1"]}}}}
16394 root 3452 R {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
16395 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16398 root 3324 R {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event br-lan
16391 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
16392 root 3324 R {mobiled.sh} /bin/sh ./mobiled.sh mobiled setup wwan {"auto":true,"metric":10,"proto":"mobiled","session_id":0,"profile":"1"}
16393 root 3324 R {broadcom.sh} /bin/sh ./broadcom.sh broadcom setup radio_2G {"config":{"channel":"auto"},"interfaces":{"0":{"bridge":"br-lan","config":{"mode":"ap","state":1,"ssid":"Telia-EC7351","mode":"ap","network":["lan"]}},"1":{"config":{"mode":"ap","state":1,"ssid":"Guest-EC7351","mode":"ap","network":["Guest1"]}}}}
16394 root 3452 R {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
16395 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16398 root 3324 R {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event br-lan
16400 root 3324 R {dhcp.sh} /bin/sh ./dhcp.sh dhcp setup wan {"proto":"dhcp","ip4table":"main","dns_metric":0,"ifname":"eth4","auto":true,"reqopts":"1 3 6 15 33 42 43 51 121 125 249","release":true,"iface6rd":"6rd","mtu6rd":"1480","vendorid":"LongLeaseTime","hostname":"Telia WiFi-router Plus v3-CP1724SA9TG-18.3.0757-1441017","sendopts":["0x7c:000008ba48010e5247572d77616e2d636f6e666967020656424e542d48031131382e332e303735372d31343431303137040b43503137323453413954470503455448060377616e070465746834"],"igmpversion":2} eth4
16406 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
16431 root 2188 R /sbin/uci -P /var/state set network loopback up 1
16400 root 3324 R {dhcp.sh} /bin/sh ./dhcp.sh dhcp setup wan {"proto":"dhcp","ip4table":"main","dns_metric":0,"ifname":"eth4","auto":true,"reqopts":"1 3 6 15 33 42 43 51 121 125 249","release":true,"iface6rd":"6rd","mtu6rd":"1480","vendorid":"LongLeaseTime","hostname":"Telia WiFi-router Plus v3-CP1724SA9TG-18.3.0757-1441017","sendopts":["0x7c:000008ba48010e5247572d77616e2d636f6e666967020656424e542d48031131382e332e303735372d31343431303137040b43503137323453413954470503455448060377616e070465746834"],"igmpversion":2} eth4
16406 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
16458 root 3252 D {mobiled.lua} /usr/bin/lua /lib/netifd/mobiled.lua -s 0 -p 1 -i wwan
16459 root 3236 D iptables -t mangle --new-chain mwan_rules_hook
16464 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call iface
16458 root 3252 R {mobiled.lua} /usr/bin/lua /lib/netifd/mobiled.lua -s 0 -p 1 -i wwan
16482 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16483 root 2752 D /sbin/netifd
16493 root 3192 S lock /var/lock/pppoe-relay-tch.lock
16494 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16483 root 2752 D /sbin/netifd
16506 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call iface
16506 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
16532 root 0 RW [hotplug-call]
16537 root 3324 R {mwan} /bin/sh /etc/rc.common /etc/init.d/mwan enabled
16538 root 3324 R {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear reload
16538 root 3324 S {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear reload
16541 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16541 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16567 root 3324 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh ifup loopback lo
16571 root 3236 D iptables -t mangle --new-chain mwan_output
16567 root 3324 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh ifup loopback lo
16583 root 3192 S lock /var/lock/LCK.mwan
16595 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16596 root 3324 S {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event vlan_eth0
16603 root 2268 R odhcpc -p /var/run/odhcpc-eth4.pid -s /lib/netifd/dhcp.script -f -o -t 0 -i eth4 -x hostname Telia WiFi-router Plus v3-CP1724SA9TG-18.3.0757-1441017 -V LongLeaseTime -C -R -O 1 -O 3 -O 6 -O 15 -O 33 -O 42 -O 43 -O 51 -O 121 -O 125 -O 249 -x 0x7c 000008ba48010e5247572d77616e2d636f6e666967020656424e542d48031131382e332e303735372d31343431303137040b43503137323453413954470503455448060377616e070465746834 -O 212 -O 121
16583 root 3192 S lock /var/lock/LCK.mwan
16595 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16596 root 3324 S {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event vlan_eth0
16603 root 2268 R odhcpc -p /var/run/odhcpc-eth4.pid -s /lib/netifd/dhcp.script -f -o -t 0 -i eth4 -x hostname Telia WiFi-router Plus v3-CP1724SA9TG-18.3.0757-1441017 -V LongLeaseTime -C -R -O 1 -O 3 -O 6 -O 15 -O 33 -O 42 -O 43 -O 51 -O 121 -O 125 -O 249 -x 0x7c 000008ba48010e5247572d77616e2d636f6e666967020656424e542d48031131382e332e303735372d31343431303137040b43503137323453413954470503455448060377616e070465746834 -O 212 -O 121
16611 root 3236 R iptables -t mangle --new-chain mwan_post
16662 root 3236 D iptables -t mangle --append mwan_pre --jump CONNMARK --restore-mark --nfmask 0xf0000000 --ctmask 0xf0000000
16668 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16678 root 3192 S lock /var/lock/pppoe-relay-tch.lock
16679 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16662 root 3368 R iptables -t mangle --append mwan_pre --jump CONNMARK --restore-mark --nfmask 0xf0000000 --ctmask 0xf0000000
16668 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16678 root 3192 S lock /var/lock/pppoe-relay-tch.lock
16679 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16686 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16714 root 0 RW [ps]
16729 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16729 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16764 root 3236 R iptables -t mangle --append mwan_post --jump CONNMARK -m mark ! --mark 0x0/0xf0000000 --save-mark --nfmask 0xf0000000 --ctmask 0xf0000000
16769 root 2528 R /sbin/validate_data dropbear dropbear afg PasswordAuth:bool:1 enable:bool:1 Interface:string GatewayPorts:bool:0 RootPasswordAuth:bool:1 RootLogin:bool:1 rsakeyfile:file BannerFile:file Port:list(port):22 SSHKeepAlive:uinteger:300 IdleTimeout:uinteger:0 MaxAuthTries:uinteger:3 RecvWindowSize:uinteger:0 AllowLocalForwarding:bool:1 AllowRemoteForwarding:bool:1 mdns:bool:1
16774 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16775 root 3324 R {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event vlan_eth1
16774 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16775 root 3324 S {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event vlan_eth1
16845 root 3452 S {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear reload
16851 root 3236 R iptables -t mangle --append mwan_output --jump mwan_rules_hook -m conntrack --ctdir ORIGINAL -m mark --mark 0x0/0xf0000000
16852 root 2060 R /sbin/uci -q get system.@service[0].respawn_threshold
16853 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16864 root 3192 S lock /var/lock/pppoe-relay-tch.lock
16866 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16877 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
16878 root 3328 S grep mwan_post
16880 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16881 root 3368 R iptables -t mangle --numeric --verbose --list INPUT
16853 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16864 root 3192 S lock /var/lock/pppoe-relay-tch.lock
16888 root 3236 R iptables -t mangle --append INPUT --jump mwan_post
16906 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
16907 root 3328 S grep mwan_post
16909 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16911 root 3236 R iptables -t mangle --numeric --verbose --list POSTROUTING
16922 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16909 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16940 root 3324 S {dhcp.script} /bin/sh /lib/netifd/dhcp.script bound
16946 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16948 root 3324 S {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event vlan_eth2
16955 root 3324 R {dhcp.script} /bin/sh /lib/netifd/dhcp.script bound
16940 root 3324 S {dhcp.script} /bin/sh /lib/netifd/dhcp.script bound
16946 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
16948 root 3324 S {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event vlan_eth2
16955 root 3324 R {dhcp.script} /bin/sh /lib/netifd/dhcp.script bound
16999 root 3452 S {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear reload
17000 root 2136 R jshn -p procd -w
17014 root 3236 D iptables -t mangle --new-chain new_mwan_rules
17018 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
17021 root 2840 R /sbin/procd
17022 root 3324 S {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear running
17029 root 3192 S lock /var/lock/pppoe-relay-tch.lock
17034 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
17035 root 3456 R {dnsmasq} /bin/sh /etc/rc.common /etc/init.d/dnsmasq reload
17040 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
17049 root 3324 S {dhcpv6.sh} /bin/sh ./dhcpv6.sh dhcpv6 setup wan6 {"ifname":"@wan","proto":"dhcpv6","dns_metric":1,"auto":true,"reqopts":"23 25","noslaaconly":"1","iface_464xlat":"0"} eth4
17021 root 520 D /usr/sbin/dropbear -F -P /var/run/dropbear.1.pid -p 192.168.1.1:22 -I 600 -K 300 -T 3
17022 root 3324 S {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear running
17035 root 3456 R {dnsmasq} /bin/sh /etc/rc.common /etc/init.d/dnsmasq reload
17049 root 3324 S {dhcpv6.sh} /bin/sh ./dhcpv6.sh dhcpv6 setup wan6 {"ifname":"@wan","proto":"dhcpv6","dns_metric":1,"auto":true,"reqopts":"23 25","noslaaconly":"1","iface_464xlat":"0"} eth4
17057 root 3324 R {dhcp.script} /bin/sh /lib/netifd/dhcp.script bound
17083 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
17057 root 3324 S {processlease} /bin/sh /usr/bin/processlease wan 1200
17083 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
17092 root 3324 D {hotplug-call} /bin/sh /sbin/hotplug-call net
17105 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 213.64.59.0/24 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
17125 root 2876 R /sbin/netifd
17125 root 2876 R /sbin/netifd
17144 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
17152 root 2188 R /sbin/uci -q -p /var/state get qos state
17164 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
17165 root 3324 R {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event vlan_eth3
17164 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
17165 root 3324 S {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event vlan_eth3
17176 root 3324 R {dhcpv6.script} /bin/sh /lib/netifd/dhcpv6.script eth4 started
17177 root 3324 S {processpassthro} /bin/sh /usr/bin/processpassthrough wan 0104ffffff0003044e47c301060802f8f80202f8f8f83304000004b03604c21000007c4d000008ba48010e5247572d77616e2d636f6e666967020656424e542d48031131382e332e303735372d31343431303137040b43503137323453413954470503455448060377616e070465746834
17176 root 3324 R {dhcpv6.script} /bin/sh /lib/netifd/dhcpv6.script eth4 started
17246 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
17277 root 2544 R /usr/sbin/dnsmasq --version
17278 root 3324 S grep -osqE ^Compile time options:.* DHCPv6( |$)
17281 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
17294 root 3324 R {odhcpd} /bin/sh /etc/rc.common /etc/init.d/odhcpd enabled
17300 root 2068 R jsonfilter -s { "interface": [ { "interface": "Guest1", "up": false, "pending": false, "available": true, "autostart": true, "dynamic": false, "proto": "static", "device": "wl0_1", "data": { } }, { "interface": "Guest1_5GHz", "up": false, "pending": false, "available": false, "autostart": true, "dynamic": false, "proto": "static", "device": "wl1_1", "data": { }, "errors": [ { "subsystem": "interface", "code": "NO_DEVICE" } ] }, { "interface": "adsl_dk", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_dk", "data": { } }, { "interface": "adsl_ee", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_ee", "data": { } }, { "interface": "adsl_fi", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_fi", "data": { } }, { "interface": "eth_dk", "up": false, "pending": false, "available": true, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "vlane_data_dk", "data": { } }, { "interface": "iptv", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "data": { } }, { "interface": "lan", "up": false, "pending": false, "available": true, "autostart": true, "dynamic": false, "proto": "static", "device": "br-lan", "data": { } }, { "interface": "loopback", "up": true, "pending": false, "available": true, "autostart": true, "dynamic": false, "uptime": 0, "l3_device": "lo", "proto": "static", "device": "lo", "updated": [ "addresses" ], "metric":
17294 root 3324 S {odhcpd} /bin/sh /etc/rc.common /etc/init.d/odhcpd enabled
17304 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
17304 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
17349 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
17350 root 3324 S {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam ifadd_event vlan_eth5
17378 root 2204 R jsonfilter -s { "interface": [ { "interface": "Guest1", "up": true, "pending": false, "available": true, "autostart": true, "dynamic": false, "uptime": 6, "l3_device": "wl0_1", "proto": "static", "device": "wl0_1", "updated": [ "addresses" ], "metric": 0, "dns_metric": 0, "delegation": true, "ipv4-address": [ { "address": "192.168.168.126", "mask": 25 } ], "ipv6-address": [ ], "ipv6-prefix": [ ], "ipv6-prefix-assignment": [ ], "route": [ ], "dns-server": [ ], "dns-search": [ ], "inactive": { "ipv4-address": [ ], "ipv6-address": [ ], "route": [ ], "dns-server": [ ], "dns-search": [ ] }, "data": { } }, { "interface": "Guest1_5GHz", "up": false, "pending": false, "available": false, "autostart": true, "dynamic": false, "proto": "static", "device": "wl1_1", "data": { }, "errors": [ { "subsystem": "interface", "code": "NO_DEVICE" } ] }, { "interface": "adsl_dk", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_dk", "data": { } }, { "interface": "adsl_ee", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_ee", "data": { } }, { "interface": "adsl_fi", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_fi", "data": { } }, { "interface": "eth_dk", "up": false, "pending": false, "available": true, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "vlane_data_dk", "data": { } }, { "interface": "iptv", "up": false
17382 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
17416 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
17418 root 3368 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.236.188.131 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
17416 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call net
17422 root 3192 S lock /var/lock/pppoe-relay-tch.lock
17424 root 3328 R pidof dnsmasq
17476 root 2260 S odhcp6c -R -s /lib/netifd/dhcpv6.script -P0 -S -r23 -r25 -t120 eth4
17476 root 2260 S odhcp6c -R -s /lib/netifd/dhcpv6.script -P0 -S -r23 -r25 -t120 eth4
17556 root 3324 S tee -a /tmp/bootlog.log
17580 root 2204 R jsonfilter -s { "interface": [ { "interface": "Guest1", "up": true, "pending": false, "available": true, "autostart": true, "dynamic": false, "uptime": 6, "l3_device": "wl0_1", "proto": "static", "device": "wl0_1", "updated": [ "addresses" ], "metric": 0, "dns_metric": 0, "delegation": true, "ipv4-address": [ { "address": "192.168.168.126", "mask": 25 } ], "ipv6-address": [ ], "ipv6-prefix": [ ], "ipv6-prefix-assignment": [ ], "route": [ ], "dns-server": [ ], "dns-search": [ ], "inactive": { "ipv4-address": [ ], "ipv6-address": [ ], "route": [ ], "dns-server": [ ], "dns-search": [ ] }, "data": { } }, { "interface": "Guest1_5GHz", "up": false, "pending": false, "available": false, "autostart": true, "dynamic": false, "proto": "static", "device": "wl1_1", "data": { }, "errors": [ { "subsystem": "interface", "code": "NO_DEVICE" } ] }, { "interface": "adsl_dk", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_dk", "data": { } }, { "interface": "adsl_ee", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_ee", "data": { } }, { "interface": "adsl_fi", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_fi", "data": { } }, { "interface": "eth_dk", "up": false, "pending": false, "available": true, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "vlane_data_dk", "data": { } }, { "interface": "iptv", "up": false
17668 root 3328 S {ipcalc.sh} /bin/sh /bin/ipcalc.sh 192.168.1.1 24 2 59
17668 root 3328 S {ipcalc.sh} /bin/sh /bin/ipcalc.sh 192.168.1.1 24 2 59
17797 root 3452 R [ps]
17826 root 3368 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.58.19 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
17930 root 3572 S {dnsmasq} /bin/sh /etc/rc.common /etc/init.d/dnsmasq reload
17931 root 2064 R /sbin/uci -q get system.@service[0].respawn_threshold
17932 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
17987 root 0 RW [iptables]
18020 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.58.25 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
18068 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.63.33 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
18102 root 3324 R {dnsmasq} /bin/sh /etc/rc.common /etc/init.d/dnsmasq running
18103 dnsmasq 2912 S /usr/sbin/dnsmasq -C /var/etc/dnsmasq.conf.dnsmasq -k -x /var/run/dnsmasq/dnsmasq.dnsmasq.pid
18095 root 0 RW [ps]
18102 root 3324 R {dnsmasq} /bin/sh /etc/rc.common /etc/init.d/dnsmasq running
18103 dnsmasq 2912 S /usr/sbin/dnsmasq -C /var/etc/dnsmasq.conf.dnsmasq -k -x /var/run/dnsmasq/dnsmasq.dnsmasq.pid
18106 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.63.57 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
18108 root 3572 S {dnsmasq} /bin/sh /etc/rc.common /etc/init.d/dnsmasq reload
18109 root 2912 S /usr/sbin/dnsmasq -C /var/etc/dnsmasq.conf.dnsmasq -k -x /var/run/dnsmasq/dnsmasq.dnsmasq.pid
18110 root 3572 R {dnsmasq} /bin/sh /etc/rc.common /etc/init.d/dnsmasq reload
18109 root 2912 S /usr/sbin/dnsmasq -C /var/etc/dnsmasq.conf.dnsmasq -k -x /var/run/dnsmasq/dnsmasq.dnsmasq.pid
18111 root 3324 R {dhcp-script.sh} /bin/sh /usr/lib/dnsmasq/dhcp-script.sh arp-add f4:39:09:3f:88:c9 192.168.1.10
18111 root 3324 R {dhcp-script.sh} /bin/sh /usr/lib/dnsmasq/dhcp-script.sh arp-add f4:39:09:3f:88:c9 192.168.1.10
18240 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 10.54.3.231/32 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
18326 root 0 RW [iptables]
18326 root 0 RW [iptables]
18348 root 3452 R {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
18378 root 0 RW [ps]
18492 root 2200 R jsonfilter -s { "interface": [ { "interface": "Guest1", "up": false, "pending": false, "available": true, "autostart": true, "dynamic": false, "proto": "static", "device": "wl0_1", "data": { } }, { "interface": "Guest1_5GHz", "up": false, "pending": false, "available": false, "autostart": true, "dynamic": false, "proto": "static", "device": "wl1_1", "data": { }, "errors": [ { "subsystem": "interface", "code": "NO_DEVICE" } ] }, { "interface": "adsl_dk", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_dk", "data": { } }, { "interface": "adsl_ee", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_ee", "data": { } }, { "interface": "adsl_fi", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_fi", "data": { } }, { "interface": "eth_dk", "up": false, "pending": false, "available": true, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "vlane_data_dk", "data": { } }, { "interface": "iptv", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "data": { } }, { "interface": "lan", "up": false, "pending": false, "available": true, "autostart": true, "dynamic": false, "proto": "static", "device": "br-lan", "data": { } }, { "interface": "loopback", "up": true, "pending": false, "available": true, "autostart": true, "dynamic": false, "uptime": 0, "l3_device": "lo", "proto": "static", "device": "lo", "updated": [ "addresses" ], "metric":
18494 root 0 RW [grep]
18496 root 3324 S tee -a /tmp/bootlog.log
18515 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.63.98 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
18515 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.63.98 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
18546 root 3368 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.63.100 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
18546 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.63.100 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
18574 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 192.168.8.74/32 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x40000000/0xf0000000
18574 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 192.168.8.74/32 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x40000000/0xf0000000
18600 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
18629 root 0 RW [iptables]
18655 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
18656 root 2192 R /sbin/uci -P /var/state -q get mwan mgmt_only nfmark
18695 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
18863 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
18864 root 3328 S grep CONNMARK restore mask
18868 root 3444 R iptables -t mangle --numeric --verbose --list mwan_output
18913 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
18915 root 2192 R /sbin/uci -P /var/state -q get mwan iptv_only nfmark
18944 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
18968 root 3192 R sort -n
18969 root 3324 S tail -n 1
18970 root 3236 R iptables -t mangle --new-chain new_mwan_rules
19020 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
19023 root 3324 S {dhcpv6.script} /bin/sh /lib/netifd/dhcpv6.script eth4 bound
19024 root 2192 R /sbin/uci -P /var/state -q get mwan main_only nfmark
19051 root 3368 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.22.194.0/24 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
19051 root 3368 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.22.194.0/24 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
19083 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.197.185.0/24 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
19102 root 3368 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.197.185.0/24 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
19187 root 3368 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.236.188.129 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
19223 root 3324 S {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear reload
19241 root 2200 R jsonfilter -s { "interface": [ { "interface": "Guest1", "up": false, "pending": false, "available": true, "autostart": true, "dynamic": false, "proto": "static", "device": "wl0_1", "data": { } }, { "interface": "Guest1_5GHz", "up": false, "pending": false, "available": false, "autostart": true, "dynamic": false, "proto": "static", "device": "wl1_1", "data": { }, "errors": [ { "subsystem": "interface", "code": "NO_DEVICE" } ] }, { "interface": "adsl_dk", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_dk", "data": { } }, { "interface": "adsl_ee", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_ee", "data": { } }, { "interface": "adsl_fi", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_fi", "data": { } }, { "interface": "eth_dk", "up": false, "pending": false, "available": true, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "vlane_data_dk", "data": { } }, { "interface": "iptv", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "data": { } }, { "interface": "lan", "up": false, "pending": false, "available": true, "autostart": true, "dynamic": false, "proto": "static", "device": "br-lan", "data": { } }, { "interface": "loopback", "up": true, "pending": false, "available": true, "autostart": true, "dynamic": false, "uptime": 0, "l3_device": "lo", "proto": "static", "device": "lo", "updated": [ "addresses" ], "metric":
19223 root 3324 S {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear reload
19259 root 1048 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.236.188.131 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
19263 root 3328 R sort -n
19264 root 3324 S tail -n 1
19273 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
19292 root 3328 S sort -n
19293 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.236.188.135 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
19294 root 2216 R ubus call network.interface dump
19295 root 3324 S tail -n 1
19293 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.236.188.135 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
19303 root 3192 R tee -a /tmp/bootlog.log
19353 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.236.188.136 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
19354 root 2208 R jsonfilter -s { "interface": [ { "interface": "Guest1", "up": true, "pending": false, "available": true, "autostart": true, "dynamic": false, "uptime": 19, "l3_device": "wl0_1", "proto": "static", "device": "wl0_1", "updated": [ "addresses" ], "metric": 0, "dns_metric": 0, "delegation": true, "ipv4-address": [ { "address": "192.168.168.126", "mask": 25 } ], "ipv6-address": [ ], "ipv6-prefix": [ ], "ipv6-prefix-assignment": [ { "address": "2001:2042:6802:f101::", "mask": 64, "preferred": 1188, "valid": 1188, "local-address": { } } ], "route": [ ], "dns-server": [ ], "dns-search": [ ], "inactive": { "ipv4-address": [ ], "ipv6-address": [ ], "route": [ ], "dns-server": [ ], "dns-search": [ ] }, "data": { } }, { "interface": "Guest1_5GHz", "up": false, "pending": false, "available": false, "autostart": true, "dynamic": false, "proto": "static", "device": "wl1_1", "data": { }, "errors": [ { "subsystem": "interface", "code": "NO_DEVICE" } ] }, { "interface": "adsl_dk", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_dk", "data": { } }, { "interface": "adsl_ee", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_ee", "data": { } }, { "interface": "adsl_fi", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_fi", "data": { } }, { "interface": "eth_dk", "up": false, "pending": false, "available": true, "autostart":
19367 root 2208 R jsonfilter -s { "interface": [ { "interface": "Guest1", "up": true, "pending": false, "available": true, "autostart": true, "dynamic": false, "uptime": 19, "l3_device": "wl0_1", "proto": "static", "device": "wl0_1", "updated": [ "addresses" ], "metric": 0, "dns_metric": 0, "delegation": true, "ipv4-address": [ { "address": "192.168.168.126", "mask": 25 } ], "ipv6-address": [ ], "ipv6-prefix": [ ], "ipv6-prefix-assignment": [ { "address": "2001:2042:6802:f101::", "mask": 64, "preferred": 1188, "valid": 1188, "local-address": { } } ], "route": [ ], "dns-server": [ ], "dns-search": [ ], "inactive": { "ipv4-address": [ ], "ipv6-address": [ ], "route": [ ], "dns-server": [ ], "dns-search": [ ] }, "data": { } }, { "interface": "Guest1_5GHz", "up": false, "pending": false, "available": false, "autostart": true, "dynamic": false, "proto": "static", "device": "wl1_1", "data": { }, "errors": [ { "subsystem": "interface", "code": "NO_DEVICE" } ] }, { "interface": "adsl_dk", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_dk", "data": { } }, { "interface": "adsl_ee", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_ee", "data": { } }, { "interface": "adsl_fi", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_fi", "data": { } }, { "interface": "eth_dk", "up": false, "pending": false, "available": true, "autostart":
19371 root 2068 R jsonfilter -s { "interface": [ { "interface": "Guest1", "up": false, "pending": false, "available": true, "autostart": true, "dynamic": false, "proto": "static", "device": "wl0_1", "data": { } }, { "interface": "Guest1_5GHz", "up": false, "pending": false, "available": false, "autostart": true, "dynamic": false, "proto": "static", "device": "wl1_1", "data": { }, "errors": [ { "subsystem": "interface", "code": "NO_DEVICE" } ] }, { "interface": "adsl_dk", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_dk", "data": { } }, { "interface": "adsl_ee", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_ee", "data": { } }, { "interface": "adsl_fi", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_fi", "data": { } }, { "interface": "eth_dk", "up": false, "pending": false, "available": true, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "vlane_data_dk", "data": { } }, { "interface": "iptv", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "data": { } }, { "interface": "lan", "up": false, "pending": false, "available": true, "autostart": true, "dynamic": false, "proto": "static", "device": "br-lan", "data": { } }, { "interface": "loopback", "up": true, "pending": false, "available": true, "autostart": true, "dynamic": false, "uptime": 0, "l3_device": "lo", "proto": "static", "device": "lo", "updated": [ "addresses" ], "metric":
19389 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.23.0.76 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
19393 root 3452 S {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear reload
19463 root 2208 R jsonfilter -s { "interface": [ { "interface": "Guest1", "up": true, "pending": false, "available": true, "autostart": true, "dynamic": false, "uptime": 19, "l3_device": "wl0_1", "proto": "static", "device": "wl0_1", "updated": [ "addresses" ], "metric": 0, "dns_metric": 0, "delegation": true, "ipv4-address": [ { "address": "192.168.168.126", "mask": 25 } ], "ipv6-address": [ ], "ipv6-prefix": [ ], "ipv6-prefix-assignment": [ { "address": "2001:2042:6802:f101::", "mask": 64, "preferred": 1188, "valid": 1188, "local-address": { } } ], "route": [ ], "dns-server": [ ], "dns-search": [ ], "inactive": { "ipv4-address": [ ], "ipv6-address": [ ], "route": [ ], "dns-server": [ ], "dns-search": [ ] }, "data": { } }, { "interface": "Guest1_5GHz", "up": false, "pending": false, "available": false, "autostart": true, "dynamic": false, "proto": "static", "device": "wl1_1", "data": { }, "errors": [ { "subsystem": "interface", "code": "NO_DEVICE" } ] }, { "interface": "adsl_dk", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_dk", "data": { } }, { "interface": "adsl_ee", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_ee", "data": { } }, { "interface": "adsl_fi", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_fi", "data": { } }, { "interface": "eth_dk", "up": false, "pending": false, "available": true, "autostart":
19533 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
19534 root 2060 R /sbin/uci -P /var/state -q get mwan.main_only.nfmark
19535 root 316 R /sbin/uci -P /var/state -S -n export dropbear
19567 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
19568 root 2192 R /sbin/uci -P /var/state -q get mwan main_only nfmark
19571 root 0 RW [grep]
19572 root 3324 S tee -a /tmp/bootlog.log
19597 root 2444 S /usr/sbin/dropbear -F -P /var/run/dropbear.2.pid -p 192.168.1.1:22 -p 2001:2042:6802:f180::1:22 -I 600 -K 300 -T 3
19599 root 3324 R {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear running
19600 root 2444 S /usr/sbin/dropbear -F -P /var/run/dropbear.1.pid -s -g -j -p 2001:2040:c00f:68::343a:60022 -I 3600 -K 300 -T 3
19591 root 0 RW [ps]
19597 root 2444 S /usr/sbin/dropbear -F -P /var/run/dropbear.2.pid -p 192.168.1.1:22 -p 2001:2042:6802:f180::1:22 -I 600 -K 300 -T 3
19599 root 3324 R {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear running
19600 root 2444 S /usr/sbin/dropbear -F -P /var/run/dropbear.1.pid -s -g -j -p 2001:2040:c00f:68::343a:60022 -I 3600 -K 300 -T 3
19633 root 0 RW [iptables]
19664 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.58.19 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
19741 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.63.36 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
19751 root 3368 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.63.36 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
19814 root 0 RW [iptables]
19895 root 3452 R [ps]
19928 root 3496 D iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.63.57 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
19981 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 10.54.3.210/32 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
20009 root 0 RW [ps]
20030 root 0 RW [iptables]
20064 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 10.54.3.231/32 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
20090 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 192.168.21.0/24 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
20165 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
20166 root 2192 R /sbin/uci -P /var/state -q get mwan main_only nfmark
20236 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.63.87 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
20282 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.63.12 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
20282 root 3636 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.63.12 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
20334 root 3640 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.63.98 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
20362 root 3640 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.63.100 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
20368 root 0 XW [iptables]
20403 root 0 RW [iptables]
20434 root 0 RW [ps]
20436 root 3368 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 192.168.8.78/32 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x40000000/0xf0000000
20436 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 192.168.8.78/32 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x40000000/0xf0000000
20463 root 3368 R iptables -t mangle --delete-chain mwan_rules
20515 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
20516 root 1976 R /sbin/uci -P /var/state -q get mwan.mgmt_only.nfmark
20637 root 2068 R jsonfilter -s { "interface": [ { "interface": "Guest1", "up": false, "pending": false, "available": true, "autostart": true, "dynamic": false, "proto": "static", "device": "wl0_1", "data": { } }, { "interface": "Guest1_5GHz", "up": false, "pending": false, "available": false, "autostart": true, "dynamic": false, "proto": "static", "device": "wl1_1", "data": { }, "errors": [ { "subsystem": "interface", "code": "NO_DEVICE" } ] }, { "interface": "adsl_dk", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_dk", "data": { } }, { "interface": "adsl_ee", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_ee", "data": { } }, { "interface": "adsl_fi", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_fi", "data": { } }, { "interface": "eth_dk", "up": false, "pending": false, "available": true, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "vlane_data_dk", "data": { } }, { "interface": "iptv", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "data": { } }, { "interface": "lan", "up": false, "pending": false, "available": true, "autostart": true, "dynamic": false, "proto": "static", "device": "br-lan", "data": { } }, { "interface": "loopback", "up": true, "pending": false, "available": true, "autostart": true, "dynamic": false, "uptime": 0, "l3_device": "lo", "proto": "static", "device": "lo", "updated": [ "addresses" ], "metric":
20722 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
20723 root 3196 R grep mwan_pre
20752 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
20753 root 3328 S grep CONNMARK restore mask
20752 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
20753 root 3328 S grep CONNMARK restore mask
20777 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
20778 root 3328 S grep mwan_post
20781 root 3236 R iptables -t mangle --numeric --verbose --list POSTROUTING
20978 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.197.185.0/24 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
21012 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.236.188.109 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
21040 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.236.188.129 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
21040 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.236.188.129 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
21091 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.236.188.130 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
21091 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.236.188.130 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
21122 root 0 RW [iptables]
21122 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.236.188.131 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
21239 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.23.0.76 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
21373 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.58.43 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
21422 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.58.45 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
21422 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.58.45 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
21423 root 0 RW [ps]
21455 root 3228 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.58.18 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
21455 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.58.18 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
21619 root 0 RW [ps]
21677 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.58.25 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
21761 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
21761 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
21813 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 10.54.3.210/32 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
21869 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 10.54.3.231/32 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
21896 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 192.168.21.0/24 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
21896 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 192.168.21.0/24 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
21927 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 192.168.8.0/25 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
21925 root 0 RW [ps]
21927 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 192.168.8.0/25 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
21951 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
21954 root 2192 R /sbin/uci -P /var/state -q get mwan main_only nfmark
21951 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
21981 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
21981 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
22008 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 131.116.22.224/27 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
22115 root 0 RW [iptables]
22115 root 0 RW [iptables]
22280 root 3368 R iptables -t mangle --delete-chain mwan_rules
22308 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
22311 root 2192 R /sbin/uci -P /var/state -q get mwan main_only nfmark
22398 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
22399 root 2192 R /sbin/uci -P /var/state -q get mwan voip_only nfmark
22403 root 0 RW [grep]
22405 root 3324 S tee -a /tmp/bootlog.log
22428 root 2192 R uci get network wan ip4table
22485 root 3444 R iptables -t mangle --numeric --verbose --list mwan_pre
22481 root 0 RW [ps]
22485 root 0 Z [iptables]
22512 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
22513 root 3328 S grep CONNMARK restore mask
22537 root 0 RW [ps]
22680 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
22682 root 2192 R /sbin/uci -P /var/state -q get mwan main_only nfmark
22680 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
22709 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 213.64.59.0/24 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
22709 root 3496 D iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 213.64.59.0/24 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
22733 root 0 RW [ps]
22737 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.22.194.0/24 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
22737 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.22.194.0/24 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
22761 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
22785 root 0 Z [realtime-monito]
22817 root 3368 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.236.188.109 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
22817 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.236.188.109 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
22870 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.236.188.129 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23013 root 3496 D iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.236.188.136 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23041 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.23.0.76 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23092 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.23.0.77 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23120 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.23.1.64/26 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23128 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.23.1.64/26 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23163 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 195.67.199.0/24 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23210 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.58.43 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23256 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.58.45 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23316 root 3452 R {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
23316 root 3228 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.58.19 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23342 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
23365 root 0 RW [ps]
23370 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.63.56 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23370 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.63.56 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23398 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.63.36 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23421 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
23449 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 194.22.195.0/24 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23481 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.58.24 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23592 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.63.57 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23616 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 10.54.3.204/32 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23679 root 3628 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 10.54.3.230/32 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23703 root 3368 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 10.54.3.231/32 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23733 root 3324 S [grep]
23734 root 0 RW [tee]
23751 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 192.168.21.0/24 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23782 root 3496 D iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 192.168.8.0/25 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23805 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 131.116.21.0/25 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23805 root 3628 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 131.116.21.0/25 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23839 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 131.116.22.224/27 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23853 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 131.116.22.224/27 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23921 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.63.87 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
23977 root 2068 R jsonfilter -s { "interface": [ { "interface": "Guest1", "up": false, "pending": false, "available": true, "autostart": true, "dynamic": false, "proto": "static", "device": "wl0_1", "data": { } }, { "interface": "Guest1_5GHz", "up": false, "pending": false, "available": false, "autostart": true, "dynamic": false, "proto": "static", "device": "wl1_1", "data": { }, "errors": [ { "subsystem": "interface", "code": "NO_DEVICE" } ] }, { "interface": "adsl_dk", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_dk", "data": { } }, { "interface": "adsl_ee", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_ee", "data": { } }, { "interface": "adsl_fi", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_fi", "data": { } }, { "interface": "eth_dk", "up": false, "pending": false, "available": true, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "vlane_data_dk", "data": { } }, { "interface": "iptv", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "data": { } }, { "interface": "lan", "up": false, "pending": false, "available": true, "autostart": true, "dynamic": false, "proto": "static", "device": "br-lan", "data": { } }, { "interface": "loopback", "up": true, "pending": false, "available": true, "autostart": true, "dynamic": false, "uptime": 0, "l3_device": "lo", "proto": "static", "device": "lo", "updated": [ "addresses" ], "metric":
24004 root 0 Z [setup.sh]
24032 root 3368 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 81.236.63.100 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
24056 root 3368 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 192.168.8.74/32 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x40000000/0xf0000000
24064 root 3236 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 192.168.8.74/32 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x40000000/0xf0000000
24084 root 3500 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 192.168.8.78/32 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x40000000/0xf0000000
24088 root 3496 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 192.168.8.78/32 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x40000000/0xf0000000
24142 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
24197 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
24200 root 2192 R /sbin/uci -P /var/state -q get mwan voip_only nfmark
24197 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh start
24198 root 0 RW [ps]
24200 root 2192 R /sbin/uci -P /var/state -q get mwan voip_only nfmark
24225 root 2192 R uci get network iptv ip4table
24303 root 3192 S lock /var/lock/LCK.mwan
24305 root 3324 R {load_balancer.s} /bin/sh /etc/rc.common /usr/lib/mwan/load_balancer.sh start
24303 root 3192 S lock /var/lock/LCK.mwan
24305 root 3324 S {load_balancer.s} /bin/sh /etc/rc.common /usr/lib/mwan/load_balancer.sh start
24347 root 2188 R /sbin/uci -P /var/state revert mwan main_only id
24354 root 2056 R /sbin/uci -P /var/state -S -n export mwan
24415 root 2840 R /sbin/procd
24415 root 2840 R /sbin/procd
24450 root 3324 S {ethernet} /bin/sh /etc/rc.common /etc/init.d/ethernet softswitch
24450 root 3324 S {ethernet} /bin/sh /etc/rc.common /etc/init.d/ethernet softswitch
24455 root 3184 R lua -e require('setuptm')
24481 root 0 RW [uci]
24514 root 2840 R /sbin/procd
24514 root 2840 R /sbin/procd
24537 root 3440 R iptables -t mangle --numeric --verbose --list mwan_output
24577 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh ifup loopback lo
24578 root 3324 S grep CONNMARK save mask
24580 root 3232 R iptables -t mangle --numeric --verbose --list mwan_post
24609 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh ifup loopback lo
24610 root 3324 S grep mwan_output
24613 root 3232 R iptables -t mangle --numeric --verbose --list OUTPUT
24614 root 3232 R iptables -t raw -X dosprotect
24609 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh ifup loopback lo
24610 root 3324 S grep mwan_output
24613 root 3232 S iptables -t mangle --numeric --verbose --list OUTPUT
24638 root 0 RW [ip6tables]
24670 root 2056 R /sbin/uci -P /var/state -S -n export dosprotect
24667 root 0 RW [realtime-monito]
24725 root 3324 R {dosprotect} /bin/sh /etc/rc.common /etc/init.d/dosprotect running
24726 root 3324 R {S30wansensing} /bin/sh /etc/rc.common /etc/rc.d/S30wansensing boot
24725 root 3324 R {dosprotect} /bin/sh /etc/rc.common /etc/init.d/dosprotect running
24726 root 3324 S {S30wansensing} /bin/sh /etc/rc.common /etc/rc.d/S30wansensing boot
24841 root 2840 R /sbin/procd
24842 root 3324 R {wansensing} /bin/sh /etc/rc.common /etc/init.d/wansensing running
24845 root 3324 R {S35odhcpd} /bin/sh /etc/rc.common /etc/rc.d/S35odhcpd boot
24841 root 2840 R /sbin/procd
24842 root 3324 R {wansensing} /bin/sh /etc/rc.common /etc/init.d/wansensing running
24845 root 3324 R {S35odhcpd} /bin/sh /etc/rc.common /etc/rc.d/S35odhcpd boot
24880 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh ifup loopback lo
24881 root 3324 S grep mwan_post
24925 root 3364 R iptables -t mangle --append mwan_rules_hook --jump new_mwan_rules
24958 root 2208 R jsonfilter -s { "interface": [ { "interface": "Guest1", "up": true, "pending": false, "available": true, "autostart": true, "dynamic": false, "uptime": 44, "l3_device": "wl0_1", "proto": "static", "device": "wl0_1", "updated": [ "addresses" ], "metric": 0, "dns_metric": 0, "delegation": true, "ipv4-address": [ { "address": "192.168.168.126", "mask": 25 } ], "ipv6-address": [ ], "ipv6-prefix": [ ], "ipv6-prefix-assignment": [ { "address": "2001:2042:6802:f101::", "mask": 64, "preferred": 1163, "valid": 1163, "local-address": { } } ], "route": [ ], "dns-server": [ ], "dns-search": [ ], "inactive": { "ipv4-address": [ ], "ipv6-address": [ ], "route": [ ], "dns-server": [ ], "dns-search": [ ] }, "data": { } }, { "interface": "Guest1_5GHz", "up": false, "pending": false, "available": false, "autostart": true, "dynamic": false, "proto": "static", "device": "wl1_1", "data": { }, "errors": [ { "subsystem": "interface", "code": "NO_DEVICE" } ] }, { "interface": "adsl_dk", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_dk", "data": { } }, { "interface": "adsl_ee", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_ee", "data": { } }, { "interface": "adsl_fi", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_fi", "data": { } }, { "interface": "eth_dk", "up": false, "pending": false, "available": true, "autostart":
24959 root 2840 D /sbin/procd
24960 root 3324 S {odhcpd} /bin/sh /etc/rc.common /etc/init.d/odhcpd running
24961 root 3324 R {S49lxc.mount} /bin/sh /etc/rc.common /etc/rc.d/S49lxc.mount boot
24992 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh ifup loopback lo
24959 root 2840 D /sbin/procd
24960 root 3324 S {odhcpd} /bin/sh /etc/rc.common /etc/init.d/odhcpd running
24961 root 3324 S {S49lxc.mount} /bin/sh /etc/rc.common /etc/rc.d/S49lxc.mount boot
24992 root 3452 S [setup.sh]
25011 root 2840 R /sbin/procd
25027 root 3240 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 194.22.194.0/24 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
25011 root 2840 R /sbin/procd
25147 root 3324 R /usr/sbin/crond -f -c /etc/crontabs -l 5
25148 root 3324 S {cron} /bin/sh /etc/rc.common /etc/init.d/cron running
25150 root 3324 S {S50ethoam} /bin/sh /etc/rc.common /etc/rc.d/S50ethoam boot
25147 root 3452 S /usr/sbin/crond -f -c /etc/crontabs -l 5
25148 root 3324 S {cron} /bin/sh /etc/rc.common /etc/init.d/cron running
25150 root 3324 S {S50ethoam} /bin/sh /etc/rc.common /etc/rc.d/S50ethoam boot
25196 root 3240 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 194.236.188.130 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
25197 root 2188 R /sbin/uci -P /var/state -S -n export ethoam
25196 root 3500 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 194.236.188.130 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
25225 root 0 RW [ps]
25230 root 3500 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 194.236.188.131 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
25262 root 3324 R {ethoam} /bin/sh /etc/rc.common /etc/init.d/ethoam running
25263 root 2840 R /sbin/procd
25263 root 3324 R {S50intercept} /bin/sh /etc/rc.common /etc/rc.d/S50intercept boot
25292 root 3240 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 194.236.188.135 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
25353 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh ifup loopback lo
25376 root 3324 S {intercept} /bin/sh /etc/rc.common /etc/init.d/intercept running
25378 root 3324 S {S50lcmd} /bin/sh /etc/rc.common /etc/rc.d/S50lcmd boot
25376 root 3324 S {intercept} /bin/sh /etc/rc.common /etc/init.d/intercept running
25378 root 3324 S {S50lcmd} /bin/sh /etc/rc.common /etc/rc.d/S50lcmd boot
25435 root 3372 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 194.23.0.77 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
25451 root 2840 R /sbin/procd
25452 root 3324 R {lcmd} /bin/sh /etc/rc.common /etc/init.d/lcmd running
25454 root 3324 S {S50pppoe-relay} /bin/sh /etc/rc.common /etc/rc.d/S50pppoe-relay boot
25451 root 2840 R /sbin/procd
25452 root 3324 S {lcmd} /bin/sh /etc/rc.common /etc/init.d/lcmd running
25454 root 3324 S {S50pppoe-relay} /bin/sh /etc/rc.common /etc/rc.d/S50pppoe-relay boot
25498 root 3240 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 194.23.1.64/26 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
25509 root 2840 R /sbin/procd
25509 root 2840 R /sbin/procd
25532 root 3240 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 195.67.199.0/24 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
25556 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh ifup loopback lo
25618 root 2840 D /sbin/procd
25620 root 3324 R {transformer} /bin/sh /etc/rc.common /etc/init.d/transformer running
25625 root 3324 R {S50xinetd} /bin/sh /etc/rc.common /etc/rc.d/S50xinetd boot
25618 root 2840 D /sbin/procd
25620 root 3324 R {transformer} /bin/sh /etc/rc.common /etc/init.d/transformer running
25622 root 0 RW [ps]
25625 root 3324 D {S50xinetd} /bin/sh /etc/rc.common /etc/rc.d/S50xinetd boot
25650 root 3324 D start-stop-daemon -q -S -p /var/run/xinetd.pid -x /usr/sbin/xinetd -- -pidfile /var/run/xinetd.pid
25650 root 3324 D start-stop-daemon -q -S -p /var/run/xinetd.pid -x /usr/sbin/xinetd -- -pidfile /var/run/xinetd.pid
25715 root 3060 D /usr/sbin/xinetd -pidfile /var/run/xinetd.pid
25716 root 2840 R /sbin/procd
25715 root 3188 S /usr/sbin/xinetd -pidfile /var/run/xinetd.pid
25716 root 3324 D {S60dhcpsnooper} /bin/sh /etc/rc.common /etc/rc.d/S60dhcpsnooper boot
25806 root 3500 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 81.236.63.36 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
25868 root 2840 D /sbin/procd
25869 root 3324 S {dhcpsnooper} /bin/sh /etc/rc.common /etc/init.d/dhcpsnooper running
25868 root 2840 D /sbin/procd
25870 root 2840 D /sbin/procd
25870 root 2840 D /sbin/procd
26002 root 0 RW [iptables]
26013 root 3324 S {lte-doctor-logg} /bin/sh /etc/rc.common /etc/init.d/lte-doctor-logger running
26014 root 3324 S {S60mcsnooper} /bin/sh /etc/rc.common /etc/rc.d/S60mcsnooper boot
26013 root 3324 S {lte-doctor-logg} /bin/sh /etc/rc.common /etc/init.d/lte-doctor-logger running
26014 root 3324 S {S60mcsnooper} /bin/sh /etc/rc.common /etc/rc.d/S60mcsnooper boot
26108 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh ifup loopback lo
26139 root 3500 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 10.54.3.230/32 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
26159 root 2840 D /sbin/procd
26160 root 3324 D {mcsnooper} /bin/sh /etc/rc.common /etc/init.d/mcsnooper running
26161 root 2840 D /sbin/procd
26159 root 2840 D /sbin/procd
26160 root 3324 S {mcsnooper} /bin/sh /etc/rc.common /etc/init.d/mcsnooper running
26161 root 2840 R /sbin/procd
26173 root 3500 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 10.54.3.231/32 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
26193 root 0 RW [realtime-monito]
26234 root 3240 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 192.168.8.0/25 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
26234 root 3240 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 192.168.8.0/25 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
26235 root 3192 R basename
26296 root 0 RW [iptables]
26333 root 3504 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 131.116.67.192/26 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
26336 root 0 XW [ubus]
26333 root 3504 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 131.116.67.192/26 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
26337 root 2840 R /sbin/procd
26338 root 3324 S {neighm} /bin/sh /etc/rc.common /etc/init.d/neighm running
26344 root 2840 D /sbin/procd
26337 root 2840 R /sbin/procd
26338 root 3324 S {neighm} /bin/sh /etc/rc.common /etc/init.d/neighm running
26344 root 2840 D /sbin/procd
26456 root 2076 R jsonfilter -s { "interface": [ { "interface": "Guest1", "up": true, "pending": false, "available": true, "autostart": true, "dynamic": false, "uptime": 44, "l3_device": "wl0_1", "proto": "static", "device": "wl0_1", "updated": [ "addresses" ], "metric": 0, "dns_metric": 0, "delegation": true, "ipv4-address": [ { "address": "192.168.168.126", "mask": 25 } ], "ipv6-address": [ ], "ipv6-prefix": [ ], "ipv6-prefix-assignment": [ { "address": "2001:2042:6802:f101::", "mask": 64, "preferred": 1163, "valid": 1163, "local-address": { } } ], "route": [ ], "dns-server": [ ], "dns-search": [ ], "inactive": { "ipv4-address": [ ], "ipv6-address": [ ], "route": [ ], "dns-server": [ ], "dns-search": [ ] }, "data": { } }, { "interface": "Guest1_5GHz", "up": false, "pending": false, "available": false, "autostart": true, "dynamic": false, "proto": "static", "device": "wl1_1", "data": { }, "errors": [ { "subsystem": "interface", "code": "NO_DEVICE" } ] }, { "interface": "adsl_dk", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_dk", "data": { } }, { "interface": "adsl_ee", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_ee", "data": { } }, { "interface": "adsl_fi", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_fi", "data": { } }, { "interface": "eth_dk", "up": false, "pending": false, "available": true, "autostart":
26523 root 3324 R {nqe} /bin/sh /etc/rc.common /etc/init.d/nqe running
26525 root 3240 R iptables -t mangle --append new_mwan_rules --jump MARK -i br-lan -s 0.0.0.0/0 -d 81.236.63.100 -p tcp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x10000000/0xf0000000
26523 root 3456 D {nqe} /bin/sh /etc/rc.common /etc/init.d/nqe running
26545 root 3192 R {S60pppoe-relay-} /bin/sh /etc/rc.common /etc/rc.d/S60pppoe-relay-tch boot
26545 root 3324 R {S60pppoe-relay-} /bin/sh /etc/rc.common /etc/rc.d/S60pppoe-relay-tch boot
26584 root 3192 S lock /var/lock/pppoe-relay-tch.lock
26586 root 3324 S {S60pppoe-relay-} /bin/sh /etc/rc.common /etc/rc.d/S60pppoe-relay-tch boot
26587 root 3240 R iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 192.168.8.74/32 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x40000000/0xf0000000
26593 root 3324 S {S60pppoe-relay-} /bin/sh /etc/rc.common /etc/rc.d/S60pppoe-relay-tch boot
26584 root 3192 S lock /var/lock/pppoe-relay-tch.lock
26586 root 3324 S {S60pppoe-relay-} /bin/sh /etc/rc.common /etc/rc.d/S60pppoe-relay-tch boot
26593 root 3324 S {S60pppoe-relay-} /bin/sh /etc/rc.common /etc/rc.d/S60pppoe-relay-tch boot
26630 root 3500 D iptables -t mangle --append new_mwan_rules --jump MARK -s 0.0.0.0/0 -d 192.168.8.78/32 -p udp --sport 0:65535 --dport 0:65535 -m mark --mark 0x0/0xf0000000 --set-xmark 0x40000000/0xf0000000
26677 root 3324 S grep -i f4:39:09:3f:88:c9
26687 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh ifup loopback lo
26691 root 2196 R /sbin/uci -P /var/state -q get mwan main_only nfmark
26676 root 1980 R brctl showmacs br-lan
26677 root 3324 S grep -i f4:39:09:3f:88:c9
26700 root 3444 S {S60pppoe-relay-} /bin/sh /etc/rc.common /etc/rc.d/S60pppoe-relay-tch boot
26725 root 3324 D {firewall} /bin/sh /etc/rc.common /etc/init.d/firewall reload
26732 root 2840 R /sbin/procd
26737 root 0 RW [readlink]
26725 root 3324 S {firewall} /bin/sh /etc/rc.common /etc/init.d/firewall reload
26732 root 3324 R {S65mobiled} /bin/sh /etc/rc.common /etc/rc.d/S65mobiled boot
26766 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh ifup loopback lo
26768 root 2196 R [uci]
26786 root 3816 R fw3 reload
26786 root 3988 R fw3 reload
26834 root 3360 D {S65mobiled} /bin/sh /etc/rc.common /etc/rc.d/S65mobiled boot
26865 root 3324 S {S65mobiled} /bin/sh /etc/rc.common /etc/rc.d/S65mobiled boot
26871 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call iface
26871 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
26889 root 3324 S {firewall} /bin/sh /etc/rc.common /etc/init.d/firewall enabled
26894 root 3324 S [realtime-monito]
26889 root 3324 S {firewall} /bin/sh /etc/rc.common /etc/init.d/firewall enabled
26909 root 3192 R cp /etc/tr143.default /etc/config/tr143
26909 root 3192 R cp /etc/tr143.default /etc/config/tr143
26918 root 1980 S flock 1000
26920 root 2840 D /sbin/procd
26921 root 3324 R {mobiled} /bin/sh /etc/rc.common /etc/init.d/mobiled running
26922 root 2840 D /sbin/procd
26918 root 1980 S flock 1000
26920 root 2840 D /sbin/procd
26921 root 3324 S {mobiled} /bin/sh /etc/rc.common /etc/init.d/mobiled running
26922 root 2840 R /sbin/procd
26968 root 3324 R {S65qos} /bin/sh /etc/rc.common /etc/rc.d/S65qos boot
26971 root 3324 S sh
26968 root 3324 R {generate.sh} /bin/sh /usr/lib/qos/generate.sh firewall start
26971 root 3324 S sh
27045 root 3492 R iptables -t nat -A fullcone_wan -p udp --dport 88 -j MASQUERADE --mode fullcone
27155 root 380 D ebtables -t nat -L --Lx
27156 root 3324 S grep -[Nj] \(QoS\)
27157 root 3324 S grep -v -A \(QoS\)
27158 root 3324 S sed -e / -N /{s/ -N / -X /;H;s/ -X / -F /} -e s/ -A / -D / -e ${p;g}
27160 root 3192 S lock /var/lock/qos-generate-l2classify
27187 root 3232 R iptables -t raw -A helper_binds -p udp --dport 5060 -j CT --helper sip
27155 root 380 D ebtables -t nat -L --Lx
27156 root 3324 S grep -[Nj] \(QoS\)
27157 root 3324 S grep -v -A \(QoS\)
27158 root 3324 S sed -e / -N /{s/ -N / -X /;H;s/ -X / -F /} -e s/ -A / -D / -e ${p;g}
27160 root 3192 S lock /var/lock/qos-generate-l2classify
27269 root 3712 R ebtables -t nat -N QoS_l2classify -P RETURN
27308 root 3652 R iptables -F timeofday_fw
27309 root 3324 R {S65qos} /bin/sh /etc/rc.common /etc/rc.d/S65qos boot
27309 root 1248 R /usr/bin/qos -q start
27363 root 3232 R ip6tables -t mangle -F timeofday_fw
27390 root 3232 R ip6tables -t mangle -D PREROUTING -p tcp --dport 80 -m addrtype ! --dst-type LOCAL -j timeofday_fw
27430 root 0 SW [kworker/u4:2]
27434 root 2356 R /sbin/modprobe -q -- netdev-atm_wan
27430 root 0 SW [kworker/u4:2]
27434 root 2568 R /sbin/modprobe -q -- netdev-atm_wan
27464 root 0 SW [kworker/u4:2]
27464 root 0 SW [kworker/u4:2]
27465 root 2492 R /sbin/modprobe -q -- atm_wan
27486 root 0 SW [kworker/u4:2]
27489 root 2436 R /sbin/modprobe -q -- netdev-atm_wan_fi
27486 root 0 SW [kworker/u4:2]
27489 root 2476 R /sbin/modprobe -q -- netdev-atm_wan_fi
27508 root 3652 R iptables -I zone_lan_forward -m comment --comment Time-of-Day -j timeofday_fw
27509 root 0 SW [kworker/u4:2]
27510 root 2344 D /sbin/modprobe -q -- atm_wan_fi
27509 root 0 SW [kworker/u4:2]
27510 root 2476 R /sbin/modprobe -q -- atm_wan_fi
27536 root 3364 R ip6tables -I zone_Guest1_forward -m comment --comment Time-of-Day -j timeofday_fw
27537 root 0 SW [kworker/u4:2]
27569 root 0 SW [kworker/u4:2]
27571 root 2568 R /sbin/modprobe -q -- atm_wan_dk
27569 root 0 SW [kworker/u4:2]
27571 root 2480 R /sbin/modprobe -q -- atm_wan_dk
27614 root 0 SW [kworker/u4:2]
27617 root 2344 R /sbin/modprobe -q -- netdev-atm_wan_ee
27614 root 0 SW [kworker/u4:2]
27617 root 2356 R /sbin/modprobe -q -- netdev-atm_wan_ee
27667 root 3816 R fw3 -q network wan
27668 root 0 SW [kworker/0:3]
27671 root 0 SW [kworker/u4:2]
27673 root 2344 R /sbin/modprobe -q -- atm_wan_ee
27668 root 0 SW [kworker/0:3]
27671 root 0 SW [kworker/u4:2]
27673 root 2476 R /sbin/modprobe -q -- atm_wan_ee
27703 root 3324 S {dhcp-script.sh} /bin/sh /usr/lib/dnsmasq/dhcp-script.sh add e2:b9:e5:ec:73:59 192.168.1.180 TG799TSvacXtream-AP-EC735A
27714 root 0 SW [kworker/u4:2]
27703 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call dhcp
27714 root 0 SW [kworker/u4:2]
27716 root 2476 R /sbin/modprobe -q -- netdev-atm_mgmt
27742 root 0 SW [kworker/0:4]
27749 root 0 SW [kworker/u4:2]
27752 root 2344 R /sbin/modprobe -q -- atm_mgmt
27742 root 0 SW [kworker/0:4]
27778 root 0 SW [kworker/u4:2]
27779 root 2436 R /sbin/modprobe -q -- netdev-atm_iptv
27799 root 3556 R fw3 -q network wan
27823 root 0 SW [kworker/u4:2]
27824 root 2436 R /sbin/modprobe -q -- netdev-atm_voip
27823 root 0 SW [kworker/u4:2]
27824 root 2476 R /sbin/modprobe -q -- netdev-atm_voip
27852 root 0 SW [kworker/u4:2]
27857 root 2508 R /sbin/modprobe -q -- atm_voip
27866 root 3496 R ip6tables -t filter -C zone_wan_input -j MMPBX
27876 root 0 SW [kworker/u4:2]
27881 root 2552 R /sbin/modprobe -q -- netdev-ptm0
27905 root 0 SW [kworker/u4:2]
27906 root 2476 R /sbin/modprobe -q -- ptm0
27937 root 0 SW [kworker/u4:2]
27938 root 2364 R /sbin/modprobe -q -- netdev-wl1
27937 root 0 SW [kworker/u4:2]
27938 root 2476 R /sbin/modprobe -q -- netdev-wl1
27959 root 0 SW [kworker/u4:2]
27965 root 2568 R /sbin/modprobe -q -- wl1
27968 root 0 RW [iptables]
27988 root 0 SW [kworker/u4:2]
27989 root 2508 R /sbin/modprobe -q -- netdev-wl1_1
28017 root 0 SW [kworker/u4:2]
28018 root 2972 R /sbin/modprobe -q -- wl1_1
28041 root 2840 R /sbin/procd
28041 root 3324 R {S70cwmpd} /bin/sh /etc/rc.common /etc/rc.d/S70cwmpd boot
28054 root 3688 R fw3 -q network wan6
28107 root 3324 S {S70cwmpd} /bin/sh /etc/rc.common /etc/rc.d/S70cwmpd boot
28108 root 2840 R /sbin/procd
28109 root 3324 D {S70cwmpd} /bin/sh /etc/rc.common /etc/rc.d/S70cwmpd boot
28120 root 3556 R fw3 -q network lan
28107 root 3324 S {S70cwmpd} /bin/sh /etc/rc.common /etc/rc.d/S70cwmpd boot
28108 root 3324 R {S70igmpproxy} /bin/sh /etc/rc.common /etc/rc.d/S70igmpproxy boot
28109 root 3324 R {S70cwmpd} /bin/sh /etc/rc.common /etc/rc.d/S70cwmpd boot
28143 root 0 RW [realtime-monito]
28206 root 3816 R fw3 -q network wan
28221 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
28221 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
28305 root 2840 R /sbin/procd
28306 root 3324 S {igmpproxy} /bin/sh /etc/rc.common /etc/init.d/igmpproxy running
28308 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
28311 root 3324 D {hotplug-call} /bin/sh /sbin/hotplug-call iface
28305 root 456 D /usr/bin/igmpproxy
28308 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
28311 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call iface
28320 root 2840 D /sbin/procd
28320 root 3324 R {S70iperf} /bin/sh /etc/rc.common /etc/rc.d/S70iperf boot
28403 root 3192 S sleep 10
28409 root 2208 R jsonfilter -s { "interface": [ { "interface": "Guest1", "up": true, "pending": false, "available": true, "autostart": true, "dynamic": false, "uptime": 64, "l3_device": "wl0_1", "proto": "static", "device": "wl0_1", "updated": [ "addresses" ], "metric": 0, "dns_metric": 0, "delegation": true, "ipv4-address": [ { "address": "192.168.168.126", "mask": 25 } ], "ipv6-address": [ ], "ipv6-prefix": [ ], "ipv6-prefix-assignment": [ { "address": "2001:2042:6802:f101::", "mask": 64, "preferred": 1143, "valid": 1143, "local-address": { } } ], "route": [ ], "dns-server": [ ], "dns-search": [ ], "inactive": { "ipv4-address": [ ], "ipv6-address": [ ], "route": [ ], "dns-server": [ ], "dns-search": [ ] }, "data": { } }, { "interface": "Guest1_5GHz", "up": false, "pending": false, "available": false, "autostart": true, "dynamic": false, "proto": "static", "device": "wl1_1", "data": { }, "errors": [ { "subsystem": "interface", "code": "NO_DEVICE" } ] }, { "interface": "adsl_dk", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_dk", "data": { } }, { "interface": "adsl_ee", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_ee", "data": { } }, { "interface": "adsl_fi", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_fi", "data": { } }, { "interface": "eth_dk", "up": false, "pending": false, "available": true, "autostart":
28403 root 3192 S sleep 10
28431 root 3332 D {miniupnpd-tch} /bin/sh /etc/rc.common /etc/init.d/miniupnpd-tch restart
28431 root 3332 D {miniupnpd-tch} /bin/sh /etc/rc.common /etc/init.d/miniupnpd-tch restart
28446 root 3324 S {iperf} /bin/sh /etc/rc.common /etc/init.d/iperf running
28447 root 2840 R /sbin/procd
28446 root 3324 S {iperf} /bin/sh /etc/rc.common /etc/init.d/iperf running
28447 root 3324 R {S70iqos} /bin/sh /etc/rc.common /etc/rc.d/S70iqos boot
28478 root 3324 R {firewall} /bin/sh /etc/rc.common /etc/init.d/firewall reload
28478 root 3324 S {firewall} /bin/sh /etc/rc.common /etc/init.d/firewall reload
28485 root 3324 R {S70iqos} /bin/sh /etc/rc.common /etc/rc.d/S70iqos boot
28485 root 384 D iqctl remport --proto 0 --dport 8080 --ent 1
28518 root 3192 R readlink /etc/init.d/firewall
28539 root 3816 R fw3 reload
28539 root 4132 R fw3 reload
28555 root 0 Z [hotplug-call]
28556 root 0 Z [hotplug-call]
28558 root 0 Z [hotplug-call]
28559 root 0 Z [hotplug-call]
28560 root 0 Z [hotplug-call]
28561 root 0 Z [hotplug-call]
28555 root 0 Z [hotplug-call]
28556 root 0 Z [hotplug-call]
28558 root 0 Z [hotplug-call]
28559 root 0 Z [hotplug-call]
28560 root 0 Z [hotplug-call]
28561 root 0 Z [hotplug-call]
28611 root 2208 R jsonfilter -s { "interface": [ { "interface": "Guest1", "up": true, "pending": false, "available": true, "autostart": true, "dynamic": false, "uptime": 64, "l3_device": "wl0_1", "proto": "static", "device": "wl0_1", "updated": [ "addresses" ], "metric": 0, "dns_metric": 0, "delegation": true, "ipv4-address": [ { "address": "192.168.168.126", "mask": 25 } ], "ipv6-address": [ ], "ipv6-prefix": [ ], "ipv6-prefix-assignment": [ { "address": "2001:2042:6802:f101::", "mask": 64, "preferred": 1143, "valid": 1143, "local-address": { } } ], "route": [ ], "dns-server": [ ], "dns-search": [ ], "inactive": { "ipv4-address": [ ], "ipv6-address": [ ], "route": [ ], "dns-server": [ ], "dns-search": [ ] }, "data": { } }, { "interface": "Guest1_5GHz", "up": false, "pending": false, "available": false, "autostart": true, "dynamic": false, "proto": "static", "device": "wl1_1", "data": { }, "errors": [ { "subsystem": "interface", "code": "NO_DEVICE" } ] }, { "interface": "adsl_dk", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_dk", "data": { } }, { "interface": "adsl_ee", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_ee", "data": { } }, { "interface": "adsl_fi", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_fi", "data": { } }, { "interface": "eth_dk", "up": false, "pending": false, "available": true, "autostart":
28687 root 2840 R /sbin/procd
28690 root 3324 D {hotplug-call} /bin/sh /sbin/hotplug-call iface
28691 root 3332 D start-stop-daemon -q -S -b -p /var/run/miniupnpd-igdv1.pid -x /usr/sbin/miniupnpd-igdv1 -- -f /var/etc/miniupnpd-tch.conf -d
28687 root 3324 R {S70mldproxy} /bin/sh /etc/rc.common /etc/rc.d/S70mldproxy boot
28690 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call iface
28691 root 3332 D start-stop-daemon -q -S -b -p /var/run/miniupnpd-igdv1.pid -x /usr/sbin/miniupnpd-igdv1 -- -f /var/etc/miniupnpd-tch.conf -d
28712 root 3192 R tail -n 1
28729 root 3324 S {pppoe-relay} /bin/sh /etc/rc.common /etc/init.d/pppoe-relay enabled
28765 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
28765 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
28789 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call iface
28789 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call iface
28836 root 2840 R /sbin/procd
28837 root 3324 R {mldproxy} /bin/sh /etc/rc.common /etc/init.d/mldproxy running
28836 root 2292 D /usr/bin/mldproxy
28837 root 3324 S {mldproxy} /bin/sh /etc/rc.common /etc/init.d/mldproxy running
28856 root 2840 R /sbin/procd
28856 root 2840 R /sbin/procd
28918 root 3324 S {S80mosquitto} /bin/sh /etc/rc.common /etc/rc.d/S80mosquitto boot
28942 root 3324 S {dynamic_dns_upd} /bin/sh /usr/lib/ddns/dynamic_dns_updater.sh -n loopback -- start
28945 root 3324 D {dynamic_dns_upd} /bin/sh /usr/lib/ddns/dynamic_dns_updater.sh -n loopback -- start
28918 root 3324 R {S80mosquitto} /bin/sh /etc/rc.common /etc/rc.d/S80mosquitto boot
28942 root 3324 S {dynamic_dns_upd} /bin/sh /usr/lib/ddns/dynamic_dns_updater.sh -n loopback -- start
28945 root 3324 D {dynamic_dns_upd} /bin/sh /usr/lib/ddns/dynamic_dns_updater.sh -n loopback -- start
28946 root 3324 S grep -F https
28946 root 3324 S grep -F https
29020 root 4600 D mosquitto -c /tmp/mosquitto.generated.conf
29021 root 3324 S {mosquitto} /bin/sh /etc/rc.common /etc/init.d/mosquitto running
29022 root 3324 S {S80nginx} /bin/sh /etc/rc.common /etc/rc.d/S80nginx boot
29020 root 4600 D mosquitto -c /tmp/mosquitto.generated.conf
29021 root 3324 S {mosquitto} /bin/sh /etc/rc.common /etc/init.d/mosquitto running
29022 root 3324 S {S80nginx} /bin/sh /etc/rc.common /etc/rc.d/S80nginx boot
29050 root 3324 S {dynamic_dns_upd} /bin/sh /usr/lib/ddns/dynamic_dns_updater.sh -n loopback -- start
29051 root 3324 D find /lib /usr/lib -name libcurl.so* -exec strings {} ;
29052 root 3324 S grep -im1 all_proxy
29050 root 3324 S {dynamic_dns_upd} /bin/sh /usr/lib/ddns/dynamic_dns_updater.sh -n loopback -- start
29051 root 3324 R find /lib /usr/lib -name libcurl.so* -exec strings {} ;
29052 root 3324 S grep -im1 all_proxy
29118 root 3324 R {S80nginx} /bin/sh /etc/rc.common /etc/rc.d/S80nginx boot
29118 root 3324 R {S80nginx} /bin/sh /etc/rc.common /etc/rc.d/S80nginx boot
29175 root 3232 R ip6tables -N timeofday_fw
29179 root 3328 S sort -n
29180 root 3324 S tail -n 1
29216 root 3324 D sed -i /^$/d /etc/crontabs/root
29228 root 3324 D {add-assistance-} /bin/sh /etc/add-assistance-autostart.sh
29235 root 3232 R iptables -t mangle -I PREROUTING 1 -p tcp --dport 80 -m addrtype ! --dst-type LOCAL -j timeofday_fw
29228 root 3324 D {add-assistance-} /bin/sh /etc/add-assistance-autostart.sh
29265 root 3324 S {cron} /bin/sh /etc/rc.common /etc/init.d/cron start
29265 root 3324 S {cron} /bin/sh /etc/rc.common /etc/init.d/cron start
29305 root 3324 D ls /etc/crontabs/
29360 root 3324 S {cron} /bin/sh /etc/rc.common /etc/init.d/cron running
29377 root 3468 R iptables -I zone_lan_forward -m comment --comment Time-of-Day -j timeofday_fw
29390 root 2840 D /sbin/procd
29391 root 3324 S {nginx} /bin/sh /etc/rc.common /etc/init.d/nginx running
29392 root 3108 R {S80weburl} /bin/sh /etc/rc.common /etc/rc.d/S80weburl boot
29390 root 2840 D /sbin/procd
29391 root 3324 S {nginx} /bin/sh /etc/rc.common /etc/init.d/nginx running
29392 root 3324 R {S80weburl} /bin/sh /etc/rc.common /etc/rc.d/S80weburl boot
29450 root 3660 R iptables -I zone_vpn_forward -m comment --comment Time-of-Day -j timeofday_fw
29474 root 3452 S {S80weburl} /bin/sh /etc/rc.common /etc/rc.d/S80weburl boot
29479 root 3492 D iptables -t mangle -D PREROUTING -p tcp --sport 80 -j urlfilter-svr
29474 root 3452 S {S80weburl} /bin/sh /etc/rc.common /etc/rc.d/S80weburl boot
29496 root 3688 R fw3 -q network wan
29530 root 3232 S iptables -t mangle -F urlfilter
29539 root 3232 R iptables -t nat -S zone_wan_prerouting
29530 root 3232 S iptables -t mangle -F urlfilter
29601 root 3816 R fw3 -q network wan
29646 root 3232 R iptables -t filter -C zone_wan_input -j MMPBX
29681 nobody 5504 D nginx: master process /usr/sbin/nginx -c /etc/nginx/nginx.conf -g daemon off;
29681 nobody 5504 D nginx: master process /usr/sbin/nginx -c /etc/nginx/nginx.conf -g daemon off;
29743 root 3452 S {S80weburl} /bin/sh /etc/rc.common /etc/rc.d/S80weburl boot
29749 root 3492 D ip6tables -t mangle -D PREROUTING -p tcp --sport 80 -j urlfilter-svr
29757 root 3492 R iptables -t nat -I zone_mgmt_prerouting -p tcp -m tcp --dport 22 -m comment --comment DMZ_Exception_Dropbear -j ACCEPT
29743 root 3452 S {S80weburl} /bin/sh /etc/rc.common /etc/rc.d/S80weburl boot
29800 root 3492 S ip6tables -t mangle -D PREROUTING -p tcp --dport 443 -j urlfilter-clnt
29807 root 3232 R ip6tables -t filter -I zone_mgmt_input -p tcp -m tcp --src 2001:2011:c001::/48 --dport 22 -m comment --comment Allow_Dropbear_Conn -j ACCEPT
29800 root 3492 S ip6tables -t mangle -D PREROUTING -p tcp --dport 443 -j urlfilter-clnt
29834 root 3492 R iptables -t filter -I zone_mgmt_input -p tcp -m tcp --src 81.227.117.202/32 --dport 22 -m comment --comment Allow_Dropbear_Conn -j ACCEPT
29910 root 3492 R ip6tables -t filter -I zone_wan_input -p tcp -m tcp --src 2001:7d0:d000:0003::/64 --dport 60022 -m comment --comment Allow_Dropbear_Conn -j ACCEPT
29967 root 3324 R {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear reload
29967 root 3324 S {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear reload
29990 root 0 RW [ip6tables]
30040 root 3452 D {S80weburl} /bin/sh /etc/rc.common /etc/rc.d/S80weburl boot
30024 root 2896 R {assistance-help} /usr/bin/lua /sbin/assistance-helper.lua
30089 root 3192 S sleep 10
30089 root 3192 S sleep 10
30122 root 2840 D /sbin/procd
30123 root 3324 R {weburl} /bin/sh /etc/rc.common /etc/init.d/weburl running
30124 root 2840 R /sbin/procd
30122 root 2840 R /sbin/procd
30124 root 3324 S {S85ra} /bin/sh /etc/rc.common /etc/rc.d/S85ra boot
30158 root 3452 D {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear reload
30193 root 3324 S {S85ra} /bin/sh /etc/rc.common /etc/rc.d/S85ra boot
30195 root 2188 R uci show web
30196 root 3324 S grep web.state_.*\.enabled=1
30225 root 3324 S [realtime-monito]
30256 root 3324 R {ra} /bin/sh /etc/rc.common /etc/init.d/ra running
30258 root 2840 R /sbin/procd
30256 root 3324 R {ra} /bin/sh /etc/rc.common /etc/init.d/ra running
30258 root 2840 R /sbin/procd
30342 root 3324 S {bcm_spdsvc} /bin/sh /etc/rc.common /etc/init.d/bcm_spdsvc running
30344 root 2840 R /sbin/procd
30342 root 3324 S {bcm_spdsvc} /bin/sh /etc/rc.common /etc/init.d/bcm_spdsvc running
30344 root 3324 R {S90fhcd} /bin/sh /etc/rc.common /etc/rc.d/S90fhcd boot
30422 root 3456 S {S90ipsec} /bin/sh /etc/rc.common /etc/rc.d/S90ipsec boot
30424 root 3324 S {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear running
30422 root 3456 S {S90ipsec} /bin/sh /etc/rc.common /etc/rc.d/S90ipsec boot
30424 root 3324 S {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear running
30427 root 3456 S {dnsmasq} /bin/sh /etc/rc.common /etc/init.d/dnsmasq reload
30427 root 3456 S {dnsmasq} /bin/sh /etc/rc.common /etc/init.d/dnsmasq reload
30477 root 3324 D sed -i \_/var/ipsec/ipsec.conf_d /etc/ipsec.conf
30477 root 3324 D sed -i \_/var/ipsec/ipsec.conf_d /etc/ipsec.conf
30534 root 3324 D {hotplug-call} /bin/sh /sbin/hotplug-call iface
30534 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call iface
30624 root 3324 S {odhcpd} /bin/sh /etc/rc.common /etc/init.d/odhcpd enabled
30624 root 3324 S {odhcpd} /bin/sh /etc/rc.common /etc/init.d/odhcpd enabled
30684 root 3324 R {hotplug-call} /bin/sh /sbin/hotplug-call iface
30684 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
30748 root 3332 R pidof dnsmasq
30791 root 2356 S ubus call service set { "name": "ipsec", "script": "\/etc\/rc.d\/S90ipsec", "instances": { "instance1": { "command": [ "\/usr\/lib\/ipsec\/starter", "--daemon", "charon", "--nofork" ], "file": [ "\/etc\/ipsec.conf", "\/etc\/ipsec.secrets", "\/etc\/strongswan.conf", "\/etc\/strongswan.d\/charon-logging.conf", "\/etc\/strongswan.d\/charon.conf", "\/etc\/strongswan.d\/charon\/kernel-netlink.conf", "\/etc\/strongswan.d\/charon\/nonce.conf", "\/etc\/strongswan.d\/charon\/openssl.conf", "\/etc\/strongswan.d\/charon\/socket-default.conf", "\/etc\/strongswan.d\/charon\/stroke.conf", "\/etc\/strongswan.d\/charon\/updown.conf" ], "respawn": [ "3600", "5", "5" ] } }, "triggers": [ [ "config.change", [ "if", [ "eq", "package", "ipsec" ], [ "run_script", "\/etc\/init.d\/ipsec", "reload" ] ], 1000 ], [ "interface.*", [ "if", [ "eq", "interface", "wan" ], [ "run_script", "\/etc\/init.d\/ipsec", "reload" ] ], 1000 ] ], "data": { } }
30796 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
30791 root 2356 S ubus call service set { "name": "ipsec", "script": "\/etc\/rc.d\/S90ipsec", "instances": { "instance1": { "command": [ "\/usr\/lib\/ipsec\/starter", "--daemon", "charon", "--nofork" ], "file": [ "\/etc\/ipsec.conf", "\/etc\/ipsec.secrets", "\/etc\/strongswan.conf", "\/etc\/strongswan.d\/charon-logging.conf", "\/etc\/strongswan.d\/charon.conf", "\/etc\/strongswan.d\/charon\/kernel-netlink.conf", "\/etc\/strongswan.d\/charon\/nonce.conf", "\/etc\/strongswan.d\/charon\/openssl.conf", "\/etc\/strongswan.d\/charon\/socket-default.conf", "\/etc\/strongswan.d\/charon\/stroke.conf", "\/etc\/strongswan.d\/charon\/updown.conf" ], "respawn": [ "3600", "5", "5" ] } }, "triggers": [ [ "config.change", [ "if", [ "eq", "package", "ipsec" ], [ "run_script", "\/etc\/init.d\/ipsec", "reload" ] ], 1000 ], [ "interface.*", [ "if", [ "eq", "interface", "wan" ], [ "run_script", "\/etc\/init.d\/ipsec", "reload" ] ], 1000 ] ], "data": { } }
30796 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
30809 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
30821 root 2840 R /sbin/procd
30823 root 3456 S {ipsec} /bin/sh /etc/rc.common /etc/init.d/ipsec running
30825 root 2840 D /sbin/procd
30821 root 432 R /usr/lib/ipsec/starter --daemon charon --nofork
30823 root 3456 S {ipsec} /bin/sh /etc/rc.common /etc/init.d/ipsec running
30825 root 2840 R /sbin/procd
30842 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
30842 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
30851 root 3324 R {generate.sh} /bin/sh /usr/lib/qos/generate.sh firewall start
30852 root 3324 S sh
30851 root 3324 R {generate.sh} /bin/sh /usr/lib/qos/generate.sh firewall start
30852 root 3324 S sh
30887 root 3324 S {ipsec} /bin/sh /usr/sbin/ipsec status
30920 root 3332 S {ipcalc.sh} /bin/sh /bin/ipcalc.sh 192.168.1.1 24 64 179
30955 root 3324 R {l2tp-ipsec-serv} /bin/sh /etc/rc.common /etc/init.d/l2tp-ipsec-server running
30955 root 3324 S {l2tp-ipsec-serv} /bin/sh /etc/rc.common /etc/init.d/l2tp-ipsec-server running
30958 root 3324 R {S95done} /bin/sh /etc/rc.common /etc/rc.d/S95done boot
30970 root 3580 S {dnsmasq} /bin/sh /etc/rc.common /etc/init.d/dnsmasq reload
30958 root 3324 R {S95done} /bin/sh /etc/rc.common /etc/rc.d/S95done boot
31002 root 3324 R {S95done} /bin/sh /etc/rc.common /etc/rc.d/S95done boot
31013 root 3192 S lock /var/lock/qos-generate-l2classify
31002 root 3324 R {S95done} /bin/sh /etc/rc.common /etc/rc.d/S95done boot
31013 root 3192 S lock /var/lock/qos-generate-l2classify
31089 root 3712 R ebtables -t nat -I POSTROUTING --mark 0/30720 -j QoS_l2classify
31112 root 3324 D sh /etc/rc.local
31112 root 3324 S sh /etc/rc.local
31115 root 3876 S /usr/bin/qos -q reload
31115 root 3876 S /usr/bin/qos -q reload
31160 root 2436 R modprobe ah4
31161 root 3324 D sed -i -e s/#// -e s#askconsole:.*$#askconsole:/bin/ash# /etc/inittab
31178 root 3324 S sh /etc/rc.local
31179 root 0 RW [uci]
31178 root 3324 S sh /etc/rc.local
31180 root 3324 S sh /etc/rc.local
31181 root 3324 S sed -n -e s/\(.\+\).name='.\+'$/ /p
31182 root 3324 S sh /etc/rc.local
31184 root 4008 R fw3 -q print
31186 root 0 SW [kworker/u4:2]
31191 root 2972 R /sbin/modprobe -q -- netdev-atm_wan
31192 root 3324 S egrep iptables -t filter -A zone_lan_input -p tcp -m tcp --dport 22 -m comment --comment "!fw3: .+" -j DROP
31193 root 3324 S sed -n -e s/^iptables.\+fw3: \(.\+\)".\+/ /p
31203 root 2372 R modprobe esp4
31180 root 3324 S sh /etc/rc.local
31181 root 3324 S sed -n -e s/\(.\+\).name='.\+'$/ /p
31182 root 3324 S sh /etc/rc.local
31184 root 4140 R fw3 -q print
31192 root 3324 S egrep iptables -t filter -A zone_lan_input -p tcp -m tcp --dport 22 -m comment --comment "!fw3: .+" -j DROP
31193 root 3324 S sed -n -e s/^iptables.\+fw3: \(.\+\)".\+/ /p
31203 root 2480 R modprobe esp4
31218 root 0 SW [kworker/u4:2]
31219 root 2568 R /sbin/modprobe -q -- atm_wan
31234 root 2344 R modprobe ipcomp
31235 root 3324 R [realtime-monito]
31218 root 0 SW [kworker/u4:2]
31219 root 2476 R /sbin/modprobe -q -- atm_wan
31234 root 2436 R modprobe ipcomp
31259 root 0 SW [kworker/u4:2]
31264 root 2384 R /sbin/modprobe -q -- netdev-atm_wan_fi
31259 root 0 SW [kworker/u4:2]
31264 root 2488 R /sbin/modprobe -q -- netdev-atm_wan_fi
31277 root 2344 R modprobe xfrm4_tunnel
31277 root 2484 R modprobe xfrm4_tunnel
31302 root 0 SW [kworker/u4:2]
31304 root 2372 R /sbin/modprobe -q -- atm_wan_fi
31302 root 0 SW [kworker/u4:2]
31304 root 2484 R /sbin/modprobe -q -- atm_wan_fi
31322 root 2476 R modprobe xfrm_user
31336 root 0 SW [kworker/u4:2]
31338 root 2356 R /sbin/modprobe -q -- netdev-atm_wan_dk
31336 root 0 SW [kworker/u4:2]
31338 root 2480 R /sbin/modprobe -q -- netdev-atm_wan_dk
31344 root 2188 D uci commit dropbear
31350 root 3804 R /usr/lib/ipsec/starter --daemon charon --nofork
31350 root 3764 R /usr/lib/ipsec/charon
31369 root 0 SW [kworker/u4:2]
31369 root 0 SW [kworker/u4:2]
31370 root 2476 R /sbin/modprobe -q -- atm_wan_dk
31399 root 0 SW [kworker/u4:2]
31401 root 2508 R /sbin/modprobe -q -- netdev-atm_wan_ee
31422 root 0 SW [kworker/u4:2]
31426 root 2508 R /sbin/modprobe -q -- atm_wan_ee
31452 root 0 SW [kworker/u4:2]
31452 root 0 SW [kworker/u4:2]
31456 root 2492 R /sbin/modprobe -q -- netdev-atm_mgmt
31501 root 0 SW [kworker/u4:2]
31507 root 2568 R /sbin/modprobe -q -- atm_mgmt
31514 root 3324 R {dnsmasq} /bin/sh /etc/rc.common /etc/init.d/dnsmasq running
31523 root 3580 S {dnsmasq} /bin/sh /etc/rc.common /etc/init.d/dnsmasq reload
31514 root 3456 S {dnsmasq} /bin/sh /etc/rc.common /etc/init.d/dnsmasq running
31538 root 3324 S {dhcp-script.sh} /bin/sh /usr/lib/dnsmasq/dhcp-script.sh old e2:b9:e5:ec:73:59 192.168.1.180 TG799TSvacXtream-AP-EC735A
31539 root 3324 S {firewall} /bin/sh /etc/rc.common /etc/init.d/firewall reload
31544 root 0 SW [kworker/u4:2]
31545 root 2492 R /sbin/modprobe -q -- netdev-atm_iptv
31546 root 2188 D uci commit system
31538 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call dhcp
31539 root 3324 S {firewall} /bin/sh /etc/rc.common /etc/init.d/firewall reload
31546 root 2188 D uci commit system
31578 root 0 SW [kworker/u4:2]
31581 root 0 RW [modprobe]
31597 root 3816 R fw3 reload
31599 root 3324 S {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear enable
31597 root 4132 R fw3 reload
31599 root 3324 S {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear enable
31610 root 0 Z [hotplug-call]
31612 root 0 Z [hotplug-call]
31613 root 0 Z [hotplug-call]
31614 root 0 SW [kworker/u4:2]
31615 root 0 Z [hotplug-call]
31616 root 0 Z [hotplug-call]
31617 root 0 Z [hotplug-call]
31622 root 2476 R /sbin/modprobe -q -- netdev-atm_voip
31610 root 0 Z [hotplug-call]
31612 root 0 Z [hotplug-call]
31613 root 0 Z [hotplug-call]
31615 root 0 Z [hotplug-call]
31616 root 0 Z [hotplug-call]
31617 root 0 Z [hotplug-call]
31669 root 3324 R {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear restart
31669 root 3324 S {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear restart
31678 root 0 SW [kworker/u4:2]
31715 root 0 SW [kworker/u4:2]
31716 root 3192 S sleep 10
31717 root 2344 R /sbin/modprobe -q -- ptm0
31715 root 0 SW [kworker/u4:2]
31716 root 3192 S sleep 10
31717 root 2476 R /sbin/modprobe -q -- ptm0
31753 root 0 SW [kworker/u4:2]
31754 root 2436 R /sbin/modprobe -q -- netdev-wl1
31753 root 0 SW [kworker/u4:2]
31754 root 2552 R /sbin/modprobe -q -- netdev-wl1
31793 root 0 SW [kworker/u4:2]
31795 root 2508 R /sbin/modprobe -q -- wl1
31793 root 0 SW [kworker/u4:2]
31795 root 2476 R /sbin/modprobe -q -- wl1
31822 root 0 SW [kworker/u4:2]
31838 root 0 SW [kworker/u4:2]
31843 root 0 RW [modprobe]
31868 root 3232 R iptables -t nat -F fullcone_voip
31873 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
31873 root 3324 S {hotplug-call} /bin/sh /sbin/hotplug-call iface
31906 root 3452 R {setup.sh} /bin/sh /usr/lib/mwan/setup.sh ifup lan br-lan
31932 root 2208 R jsonfilter -s { "interface": [ { "interface": "Guest1", "up": true, "pending": false, "available": true, "autostart": true, "dynamic": false, "uptime": 85, "l3_device": "wl0_1", "proto": "static", "device": "wl0_1", "updated": [ "addresses" ], "metric": 0, "dns_metric": 0, "delegation": true, "ipv4-address": [ { "address": "192.168.168.126", "mask": 25 } ], "ipv6-address": [ ], "ipv6-prefix": [ ], "ipv6-prefix-assignment": [ { "address": "2001:2042:6802:f101::", "mask": 64, "preferred": 1122, "valid": 1122, "local-address": { } } ], "route": [ ], "dns-server": [ ], "dns-search": [ ], "inactive": { "ipv4-address": [ ], "ipv6-address": [ ], "route": [ ], "dns-server": [ ], "dns-search": [ ] }, "data": { } }, { "interface": "Guest1_5GHz", "up": false, "pending": false, "available": false, "autostart": true, "dynamic": false, "proto": "static", "device": "wl1_1", "data": { }, "errors": [ { "subsystem": "interface", "code": "NO_DEVICE" } ] }, { "interface": "adsl_dk", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_dk", "data": { } }, { "interface": "adsl_ee", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_ee", "data": { } }, { "interface": "adsl_fi", "up": false, "pending": false, "available": false, "autostart": false, "dynamic": false, "proto": "dhcp", "device": "atm_wan_fi", "data": { } }, { "interface": "eth_dk", "up": false, "pending": false, "available": true, "autostart":
31933 root 3192 S lock /var/lock/LCK.mwan
31935 root 3492 R iptables -t nat -A fullcone_wan -p udp --dport 3074:3658 -j MASQUERADE --mode fullcone
31906 root 3452 R {setup.sh} /bin/sh /usr/lib/mwan/setup.sh ifup lan br-lan
31933 root 3192 S lock /var/lock/LCK.mwan
32040 root 3492 R ip6tables -t raw -A helper_binds -p udp --dport 69 -j CT --helper tftp
32067 root 3492 R iptables -t raw -A helper_binds -p tcp --dport 1723 -j CT --helper pptp
32111 root 2444 S /usr/sbin/dropbear -F -P /var/run/dropbear.1.pid -s -g -j -p 2001:2040:c00f:68::343a:60022 -I 3600 -K 300 -T 3
32112 root 2444 S /usr/sbin/dropbear -F -P /var/run/dropbear.2.pid -p 192.168.1.1:22 -p 2001:2042:6802:f180::1:22 -I 600 -K 300 -T 3
32113 root 3324 S {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear running
32136 root 3192 D rm /overlay/bank_1/etc/rc.local
32111 root 2444 S /usr/sbin/dropbear -F -P /var/run/dropbear.1.pid -s -g -j -p 2001:2040:c00f:68::343a:60022 -I 3600 -K 300 -T 3
32112 root 2444 S /usr/sbin/dropbear -F -P /var/run/dropbear.2.pid -p 192.168.1.1:22 -p 2001:2042:6802:f180::1:22 -I 600 -K 300 -T 3
32113 root 3324 S {dropbear} /bin/sh /etc/rc.common /etc/init.d/dropbear running
32136 root 3192 D rm /overlay/bank_1/etc/rc.local
32177 root 3232 S iptables -t mangle --numeric --verbose --list mwan_pre
32177 root 3232 S iptables -t mangle --numeric --verbose --list mwan_pre
32183 root 3324 R {S95fseventd} /bin/sh /etc/rc.common /etc/rc.d/S95fseventd boot
32183 root 3324 R {S95fseventd} /bin/sh /etc/rc.common /etc/rc.d/S95fseventd boot
32278 root 392 D /usr/bin/fseventd -d
32279 root 3324 S {fseventd} /bin/sh /etc/rc.common /etc/init.d/fseventd running
32300 root 3324 R {S96led} /bin/sh /etc/rc.common /etc/rc.d/S96led boot
32278 root 392 R /usr/bin/fseventd -d
32279 root 3324 S {fseventd} /bin/sh /etc/rc.common /etc/init.d/fseventd running
32300 root 3324 R {S96led} /bin/sh /etc/rc.common /etc/rc.d/S96led boot
32327 root 2840 D /sbin/procd
32327 root 2840 D /sbin/procd
32347 root 3232 R iptables -t mangle -I PREROUTING 1 -p tcp --dport 80 -m addrtype ! --dst-type LOCAL -j timeofday_fw
32347 root 3568 S iptables -t mangle -I PREROUTING 1 -p tcp --dport 80 -m addrtype --dst-type LOCAL -j timeofday_fw
32364 root 3232 R iptables -t mangle --numeric --verbose --list mwan_post
32398 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh ifup lan br-lan
32399 root 3324 S grep mwan_pre
32400 root 3364 R iptables -t mangle --numeric --verbose --list PREROUTING
32411 root 2440 S /usr/bin/fseventd -d
32412 root 3452 S {setup.sh} /bin/sh /usr/lib/mwan/setup.sh ifup lan br-lan
32413 root 3324 S grep mwan_output
32411 root 2440 S /usr/bin/fseventd -d
32486 root 2840 R /sbin/procd
32487 root 3324 S {mvfs} /bin/sh /etc/rc.common /etc/init.d/mvfs running
32488 root 2840 D /sbin/procd
32486 root 952 D /usr/bin/mvfs -o config=/tmp/.mvfs/mvfs.ini /var/mvfs -o l=2
32487 root 3324 S {mvfs} /bin/sh /etc/rc.common /etc/init.d/mvfs running
32488 root 2840 R /sbin/procd
32556 root 3568 S ip6tables -t mangle -I PREROUTING 1 -p tcp --dport 80 -m addrtype --dst-type LOCAL -j timeofday_fw
32556 root 3568 S ip6tables -t mangle -I PREROUTING 1 -p tcp --dport 80 -m addrtype --dst-type LOCAL -j timeofday_fw
32586 root 3356 S {time_change_mon} /usr/bin/lua /sbin/time_change_monitor.lua
32590 root 2840 D /sbin/procd
32592 root 3184 D {tod.lua} /usr/bin/lua /sbin/tod.lua
32624 root 3324 R find /sys/bus/usb/drivers -name 2-2:*
32625 root 3324 S cut -d / -f 6
32586 root 3356 S {time_change_mon} /usr/bin/lua /sbin/time_change_monitor.lua
32590 root 2840 D /sbin/procd
32592 root 3184 D {tod.lua} /usr/bin/lua /sbin/tod.lua
32633 root 3192 S sleep 10
32633 root 3192 S sleep 10
32720 root 14188 S /usr/bin/mvfs -o config=/tmp/.mvfs/mvfs.ini /var/mvfs -o l=2
32720 root 14188 S /usr/bin/mvfs -o config=/tmp/.mvfs/mvfs.ini /var/mvfs -o l=2
