DLink 6100LH Ethical Hacking Documentation
Initially planned to use TCL and Expect for brute-force script creation for pin-code discovery, which ultimately wasn't necessary.
Hardware Used
- Arduino SA Uno R3 (CDC ACM)
- D-LINK 6100LH IPCam
- System: Gentoo Linux
About/Info/Reason
Disassembling the Dlink camera was necessitated by the lack of access to its password. The Dlinks app mandates connection to the camera's wifi for adding the device, prompting the disassembly in pursuit of root access to resolve the issue.
Disassembly and Access

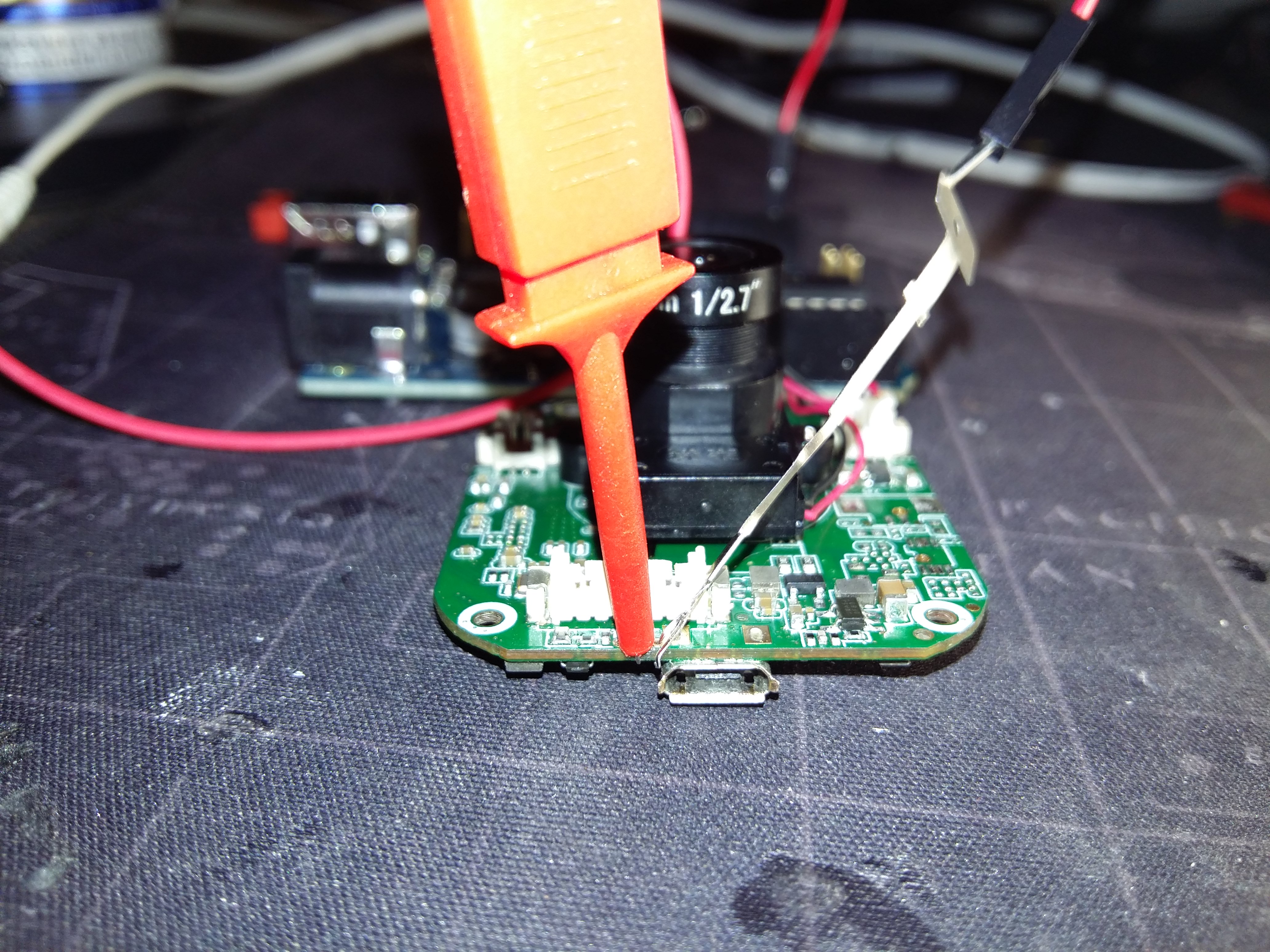

The process involved unscrewing three screws and disconnecting three contacts: TXD, RXD, and GND. These were located to the left of the micro-USB input. Access to the camera's AP was achieved as the password is printed in stdout during serial console reading.
Challenge with PIN Code
Upon configuration, a PIN code was required for the final settings, necessitating a workaround to bypass the login. This task has since been completed.

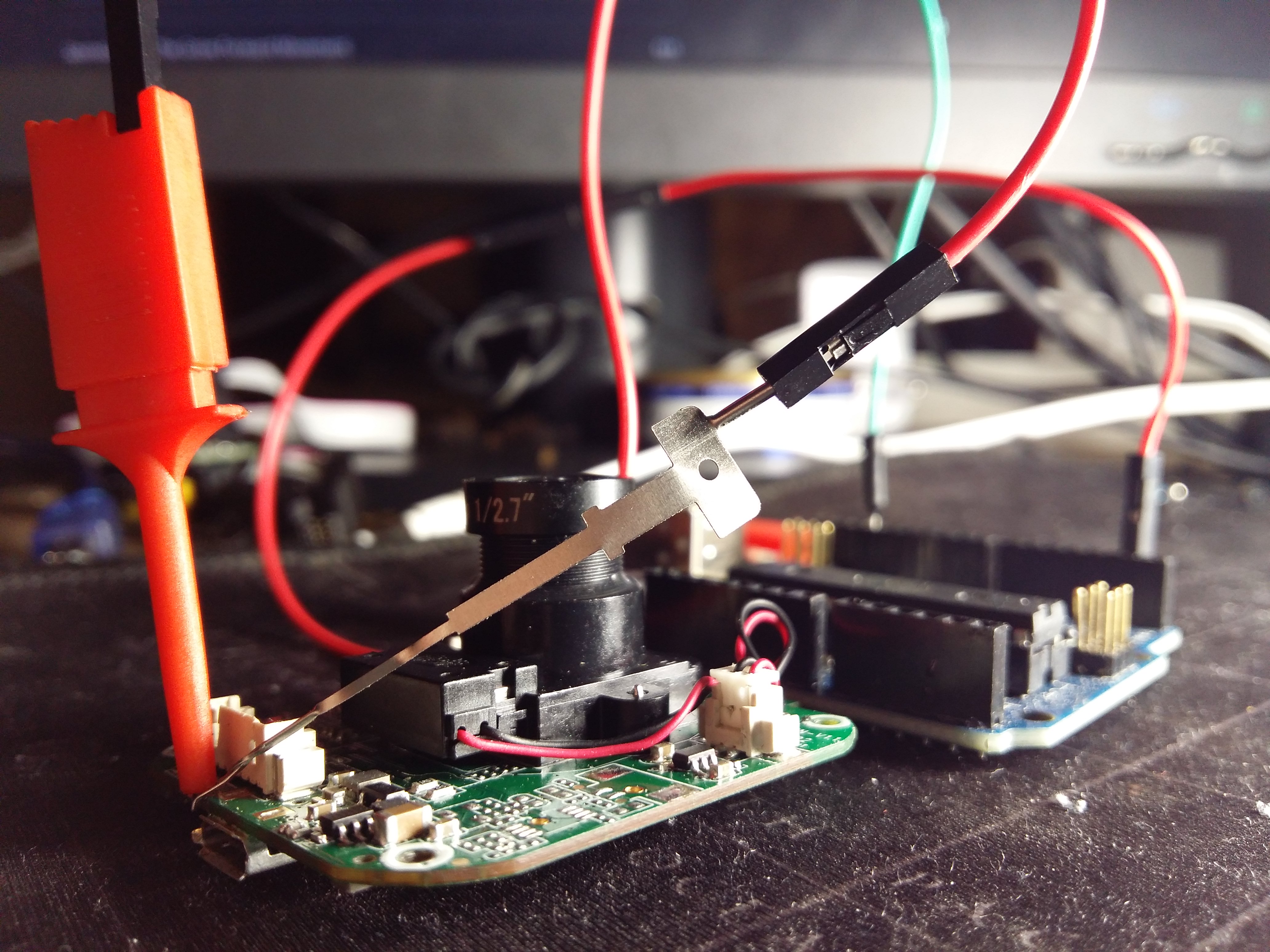

Some Photos Taken During the Process
Observation on Manufacturing
The camera's internals included Chinese characters, hinting at its manufacturing origins. This suggests that D-Link, like many companies, may source cheaper hardware from China, rebranding and selling at a markup.
Technical Insights
Odd Info
Notably, the board of this camera has a reference to the year 2034, a curious detail for tech enthusiasts.
Serial Communication Monitoring

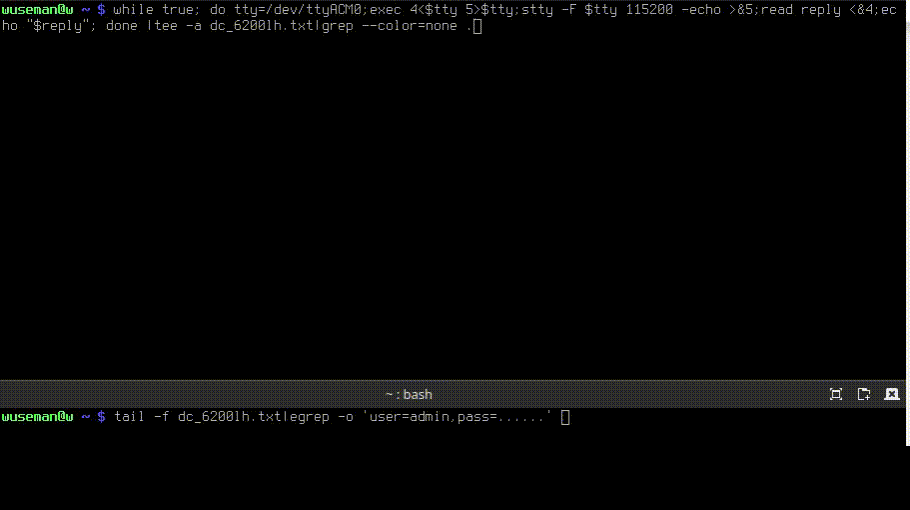

Script for Reading Serial Communication
#!/bin/bash
while true; do
tty=/dev/ttyACM0
exec 4<$tty 5>$tty
stty -F $tty 115200 -echo >&5
read r <&4
echo "$r"
done | tee dc_6200lh.txt
This script establishes a monitoring loop for the serial communication, useful for tasks like brute-forcing the login.
Brute Force Script Example with TCL
set baud 115200
if { $argc >= 1 } {
set tty [lindex $argv 0]
}
if { $argc >= 2 } {
set baud [lindex $argv 1]
}
spawn screen /dev/ttyACM0 $baud
send \r
expect {
"DCS-6100LH login: " {
send admin\r
expect "Password: "
send $pin-codes\r
}
"#"
}
interact
WiFi Password Extraction
Real-time monitoring and specific data extraction from dc_6200lh.txt is possible, as shown in the following bash commands:
tail -f dc_6200lh.txt | egrep -i "Wifi_ap_pwd"
tail -f dc_6200lh.txt | egrep -o 'user=admin,pass=......'

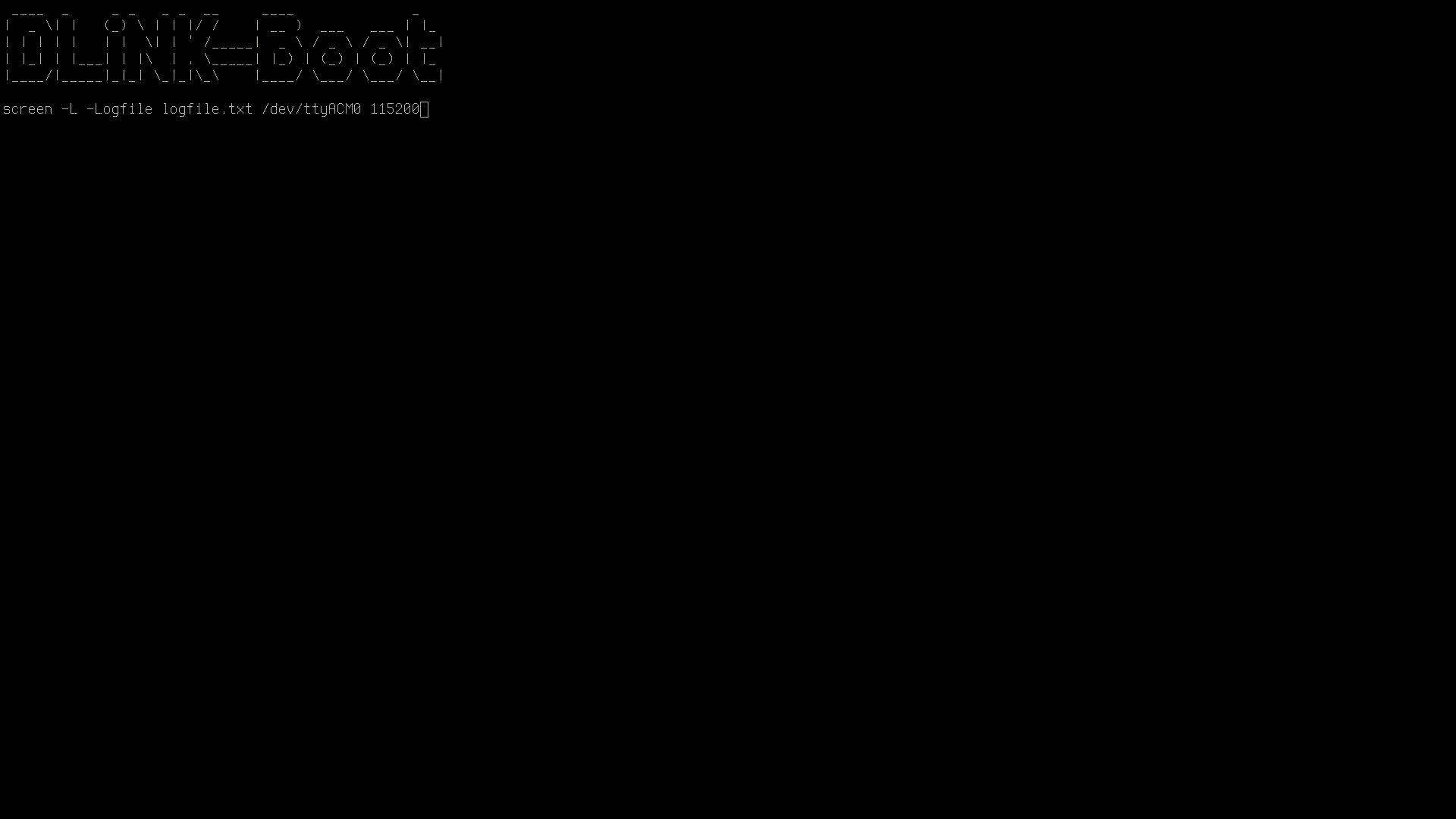

Boot Process Visualization
For a detailed view of the boot process, refer to the following image.
Network Information
IP...: 192.168.0.20
Ports: 554,8080,7000,6000
U-Boot Details
U-Boot 2016.11 (Jul 01 2020 - 17:46:25 +0800)
mips-linux-uclibc-xgcc (Realtek RSDK-6.4.1 Build 3029) 6.4.1 20180425
GNU ld (Realtek RSDK-6.4.1 Build 3029) 2.27.90.20161222
=> help
? - alias for 'help'
base - print or set address offset
bdinfo - print Board Info structure
boot- boot default, i.e., run 'bootcmd'
bootd - boot default, i.e., run 'bootcmd'
bootelf - Boot from an ELF image in memory
bootm - boot application image from memory
bootvx - Boot vxWorks from an ELF image
cmp - memory compare
coninfo - print console devices and information
cp - memory copy
crc32 - checksum calculation
dma - dma copy
editenv - edit environment variable
env - environment handling commands
fatinfo - print information about filesystem
fatload - load binary file from a dos filesystem
fatls - list files in a directory (default /)
fatsize - determine a file's size
fephy - fephy read/write
go - start application at address 'addr'
help - print command description/usage
iminfo - print header information for application image
imls- list all images found in flash
imxtract- extract a part of a multi-image
md - memory display
mm - memory modify (auto-incrementing address)
mmc - MMC sub system
mmcinfo - display MMC info
mw - memory write (fill)
nfs - boot image via network using NFS protocol
nm - memory modify (constant address)
ping - send ICMP ECHO_REQUEST to network host
printenv - print environment variables
reset - Perform RESET of the CPU
run - run commands in an environment variable
saveenv - save environment variables to flash
setenv - set environment variables
setethaddr - set eth address
setipaddr - set ip address
sf - SPI flash sub-system
sleep - delay execution for some time
tftpboot - boot image via network using TFTP protocol
tftpput - TFTP put command, for uploading files to a server
tftpsrv - act as a TFTP server and boot the first received file
update - update xxx
version - print monitor, compiler and linker version
=> printenv
baudrate=57600
bootaddr=0xBC000000 + 0x50000
bootargs=console=ttyS1,115200 root=/dev/mtdblock3 rts-quadspi.channels=dual mtdparts=18030000.spic:16384k@0(global),320k@0k(boot),2304k@320k(kernel),3584k@2624k(rootfs),7744k@6208k(userdata),2048k@13952k(userdata2),384k@16000k(userdata3)
bootcmd=bootm 0xbc050000
bootdelay=2
ethact=r8168#0
oadaddr=0x80010000
netretry=yes
stderr=serial
stdin=serial
stdout=serial
Accessing U-Boot
Access U-Boot by pressing any key within 5 seconds of booting. Use the printenv command to view environment variables. To modify bootargs, use:
setenv bootargs console=ttyS0,115200...............
To bypass the login prompt, use:
setenv bootargs $(BOOTARGS) init=/bin/sh
boot
Note: Modifying bootargs should be done with caution. In case of a boot issue, reset to defaults in the U-Boot menu:
env default -a
saveenv
reset
