Acer C720
How to hack any Acer C7(4)20 Chromebook that has been locked remotely by admin and how easy it is to take control over a chromebook

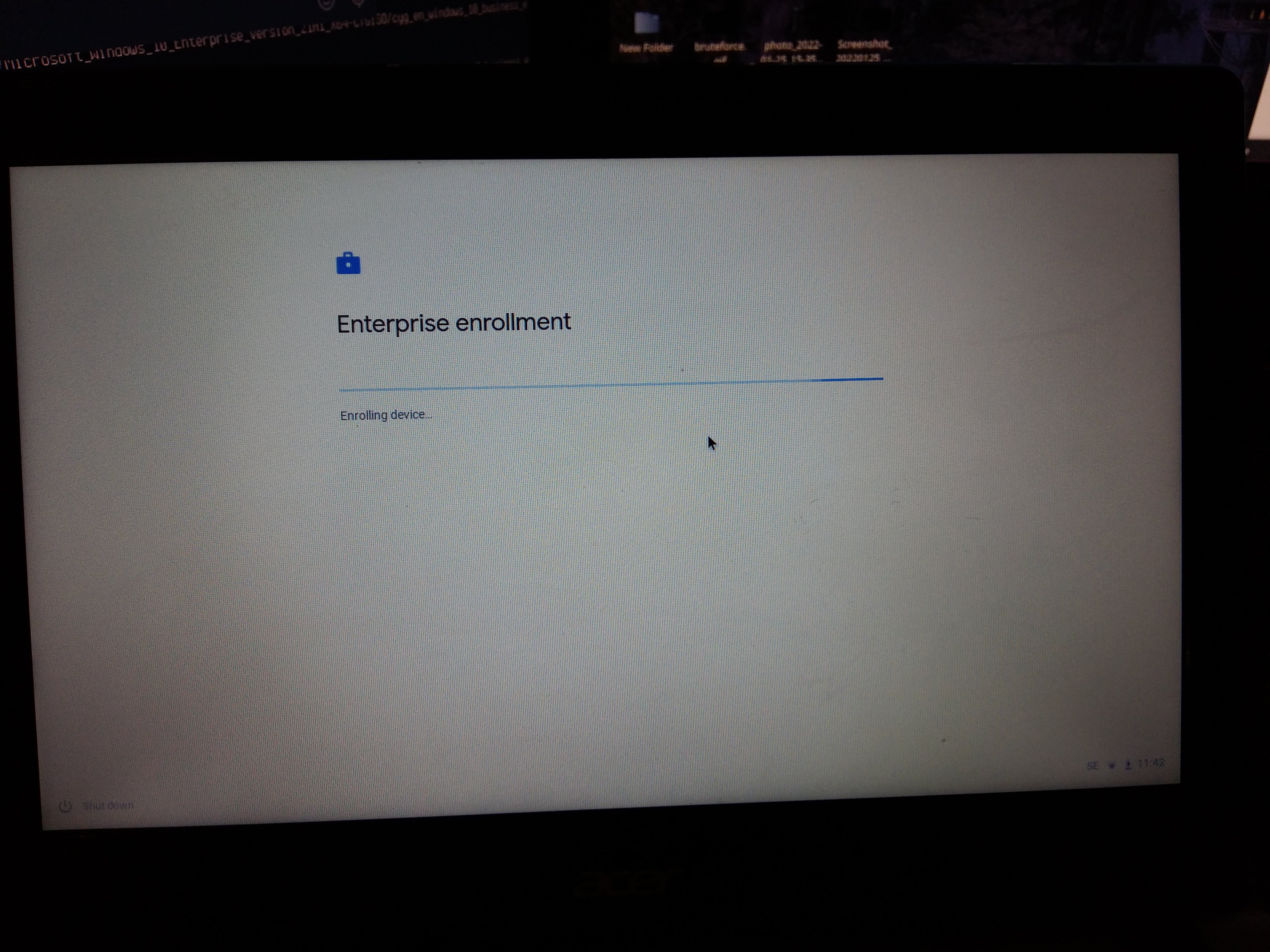

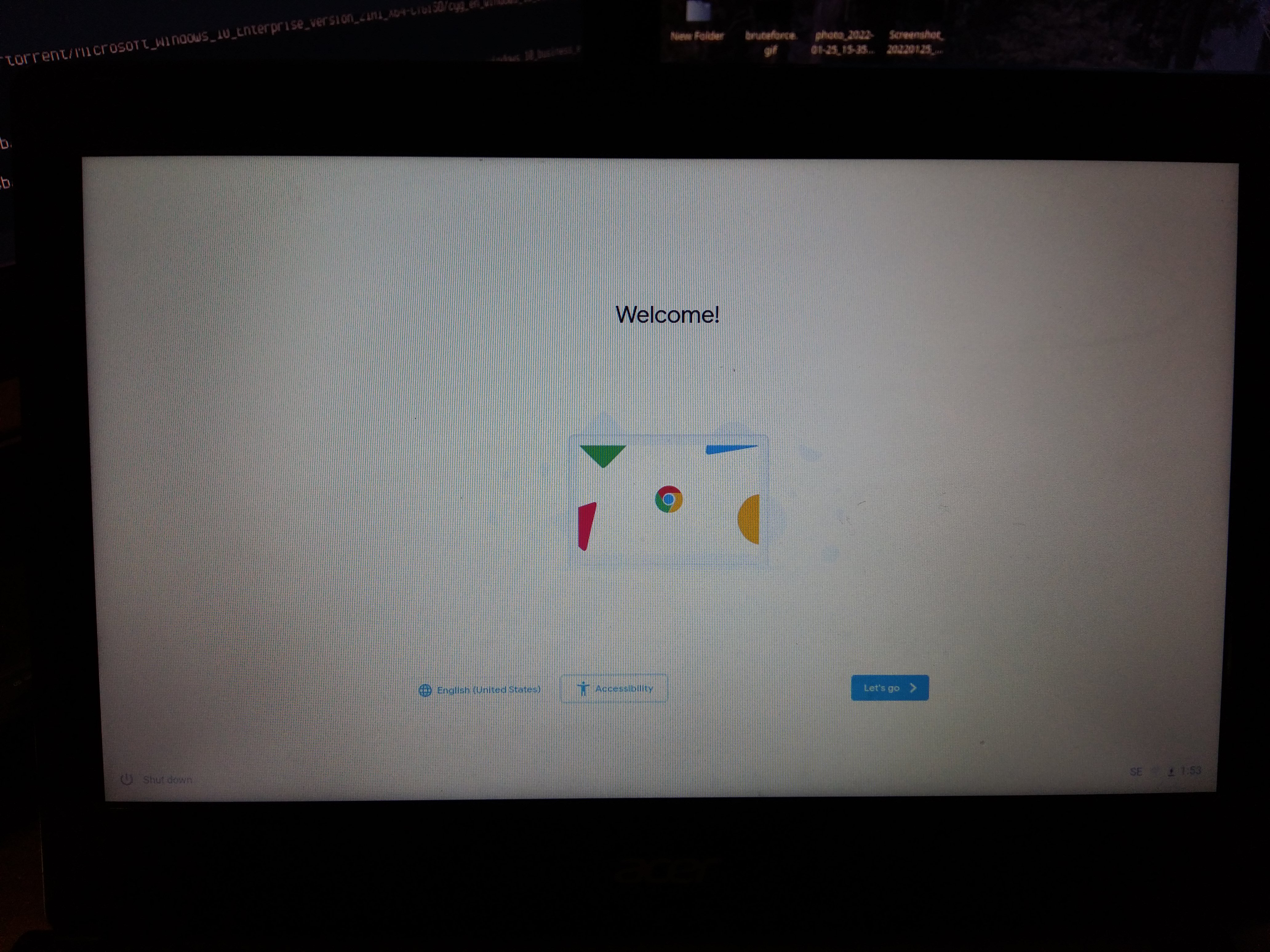

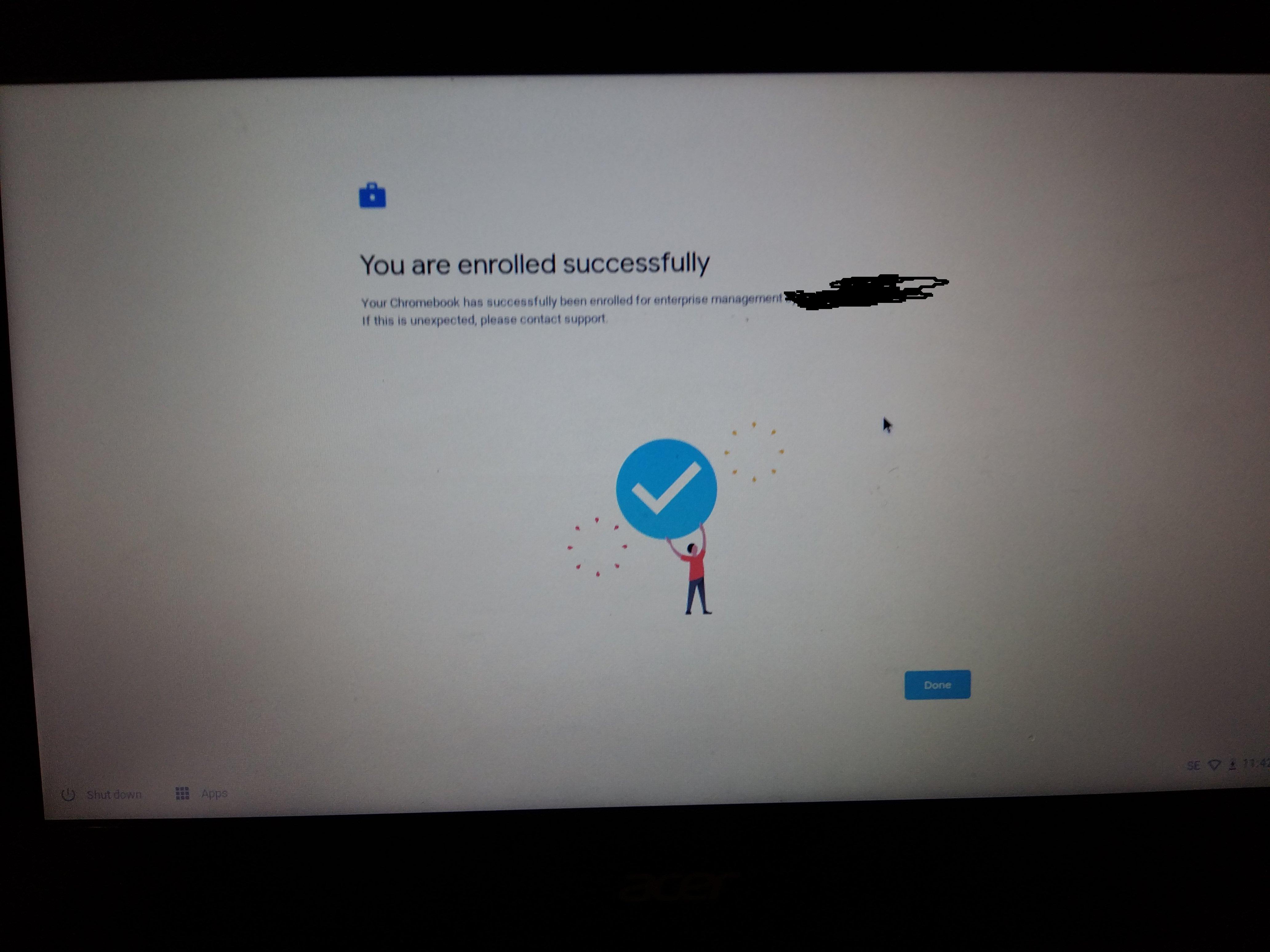

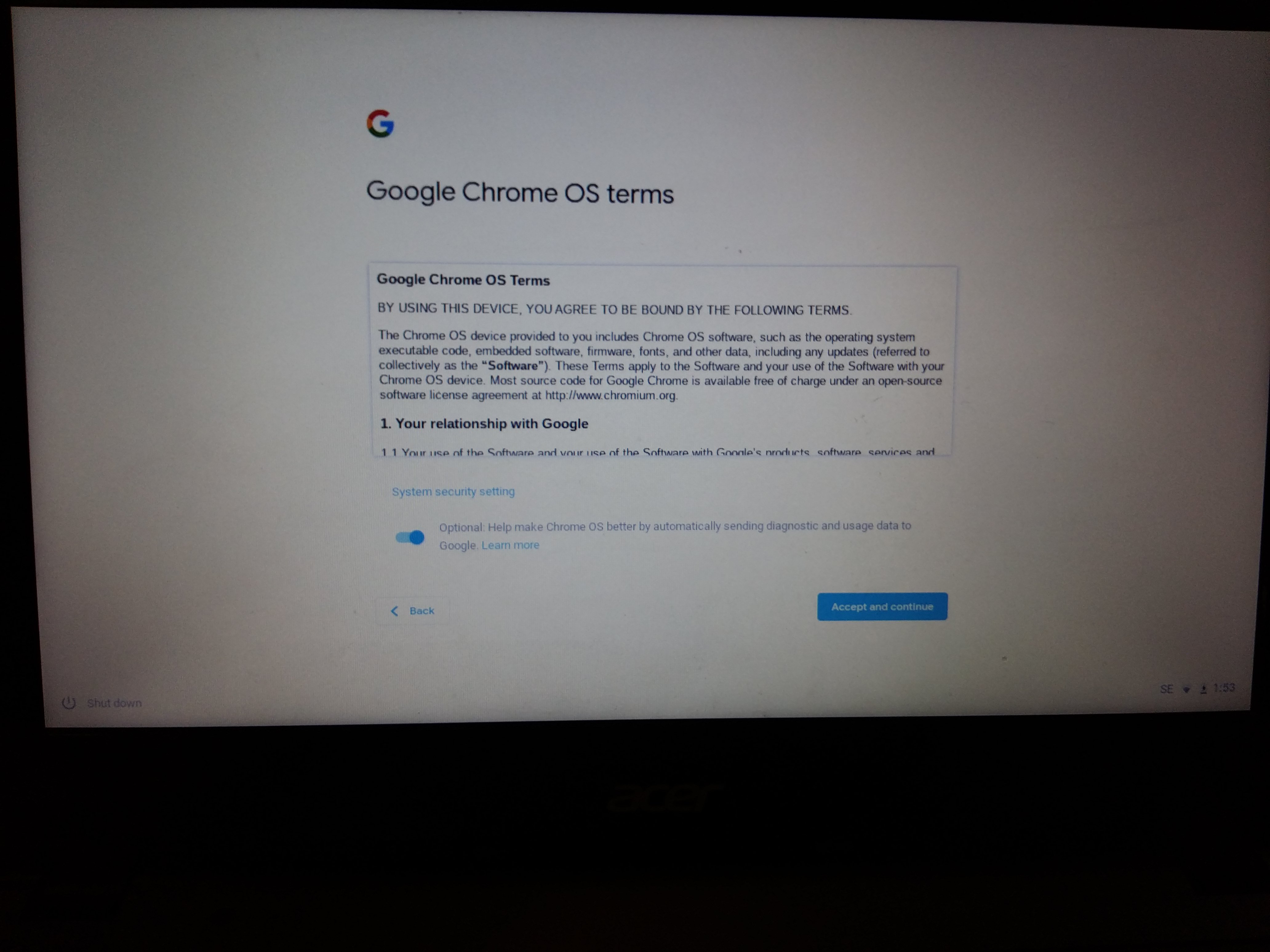

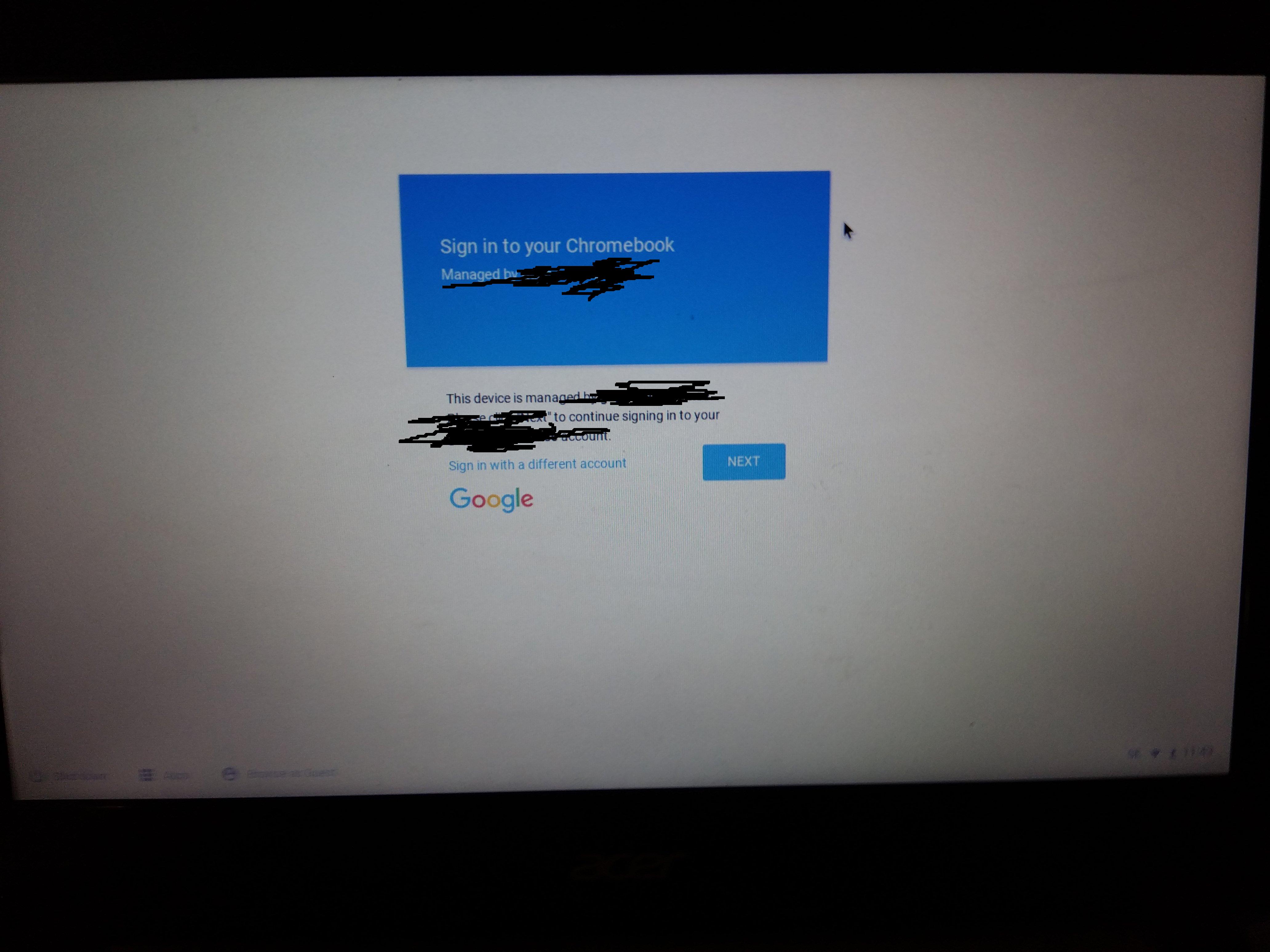

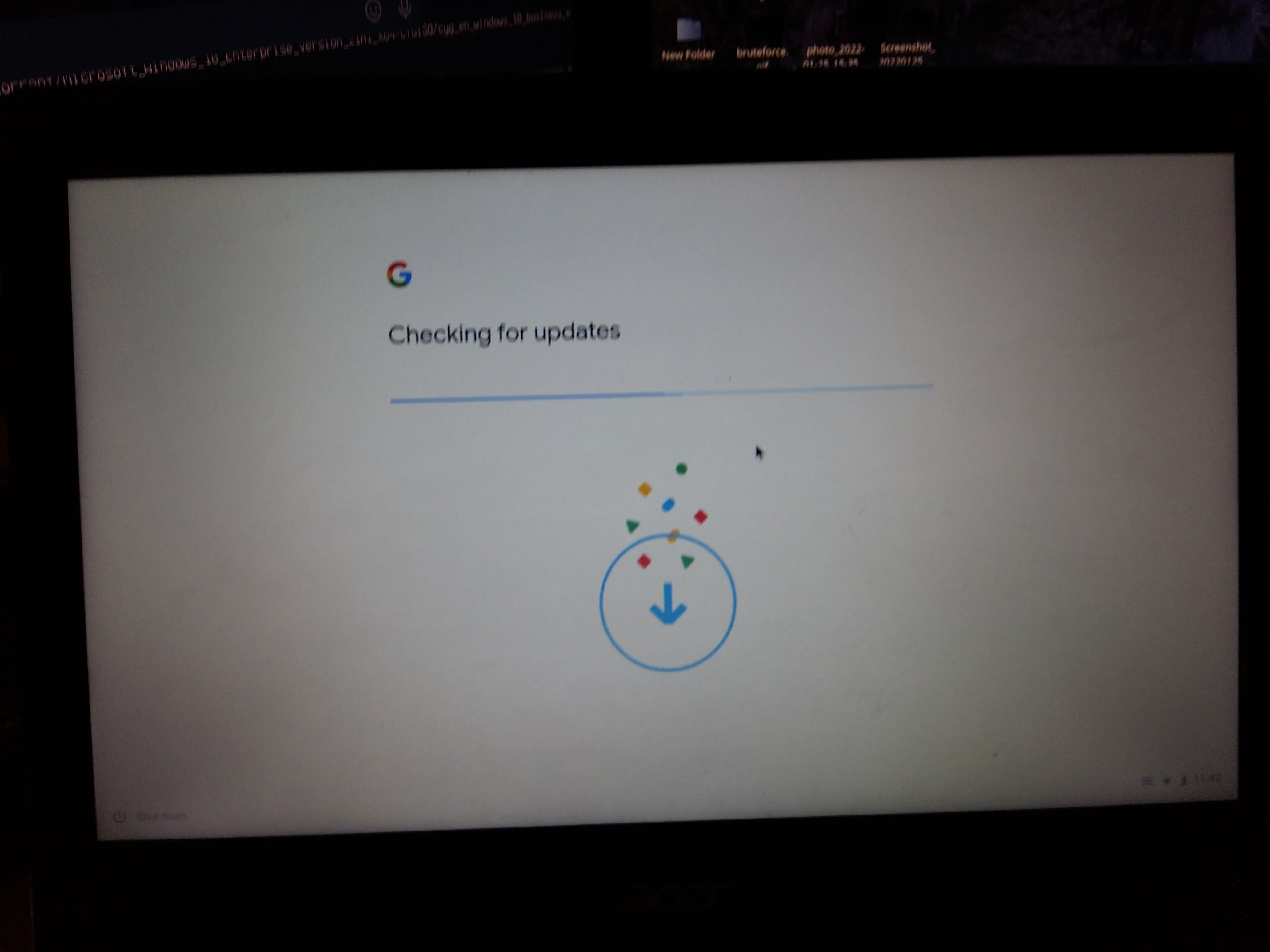

Whole process from the first time we start this device until device will enter enrollment and there is nothing we can do more then see the process happening and then its out of our control (if we are not the admin)
-
So, are we pwned? Of course not nothing is impossible!! Now let us hack this device
-

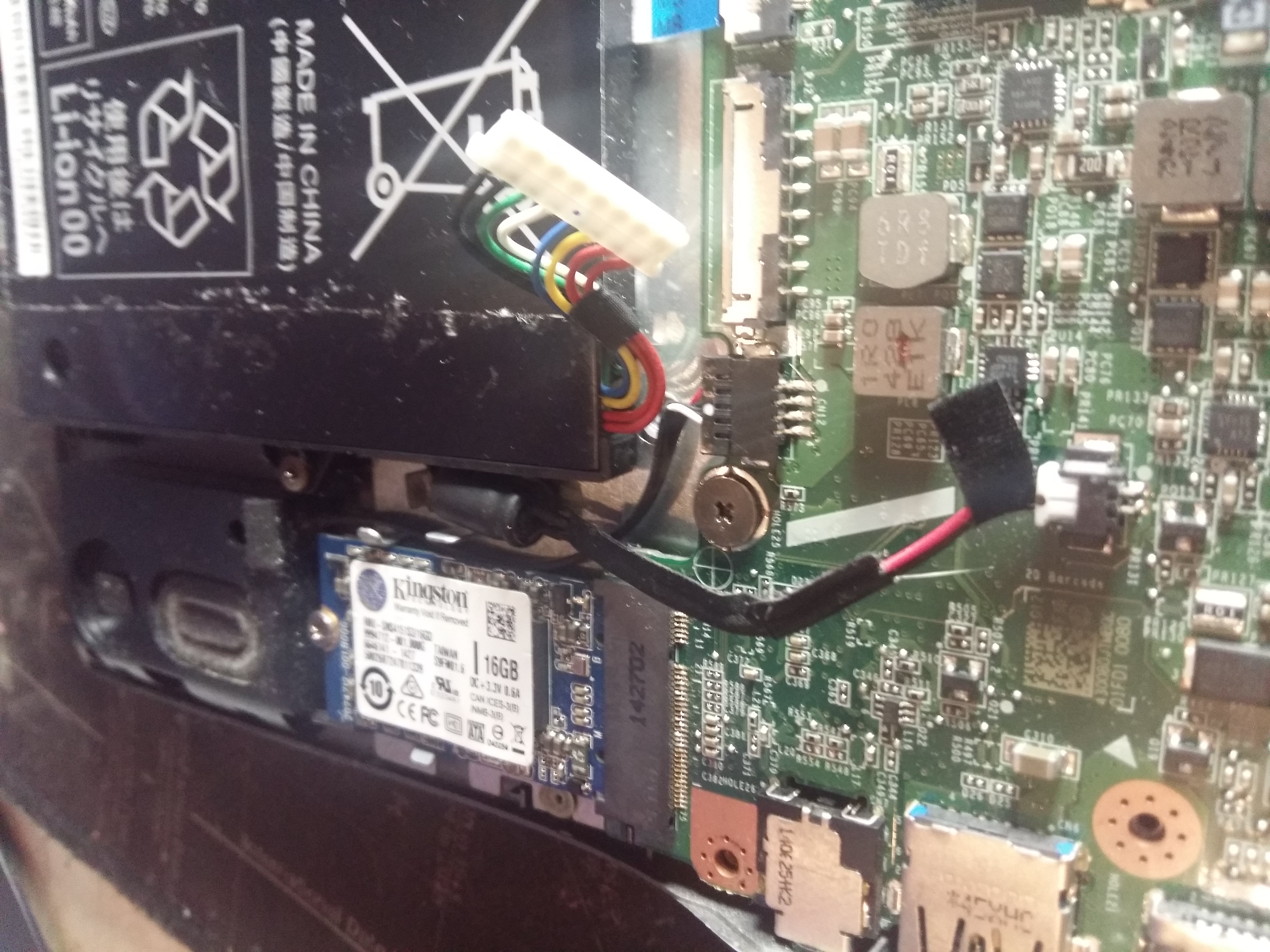

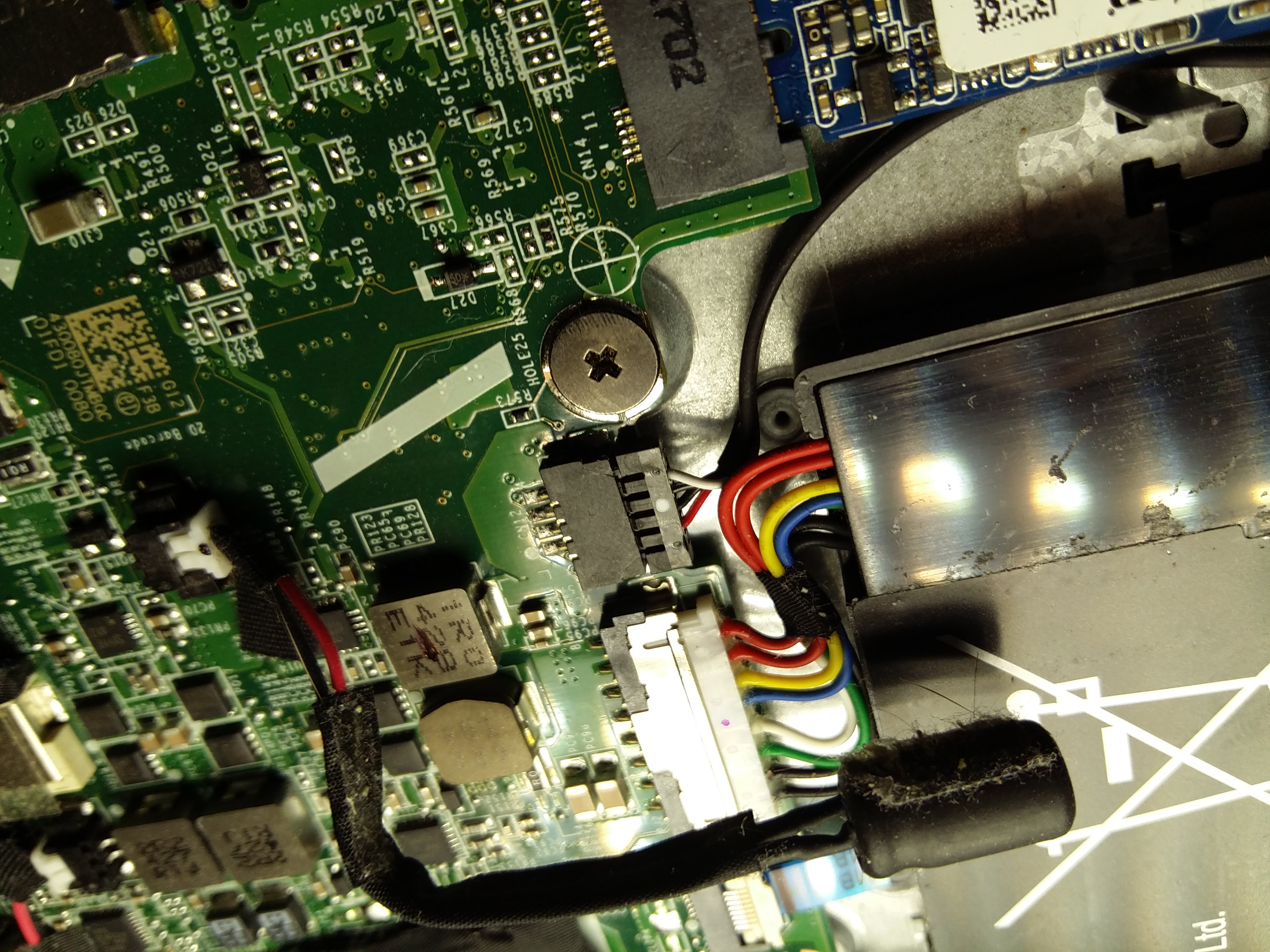

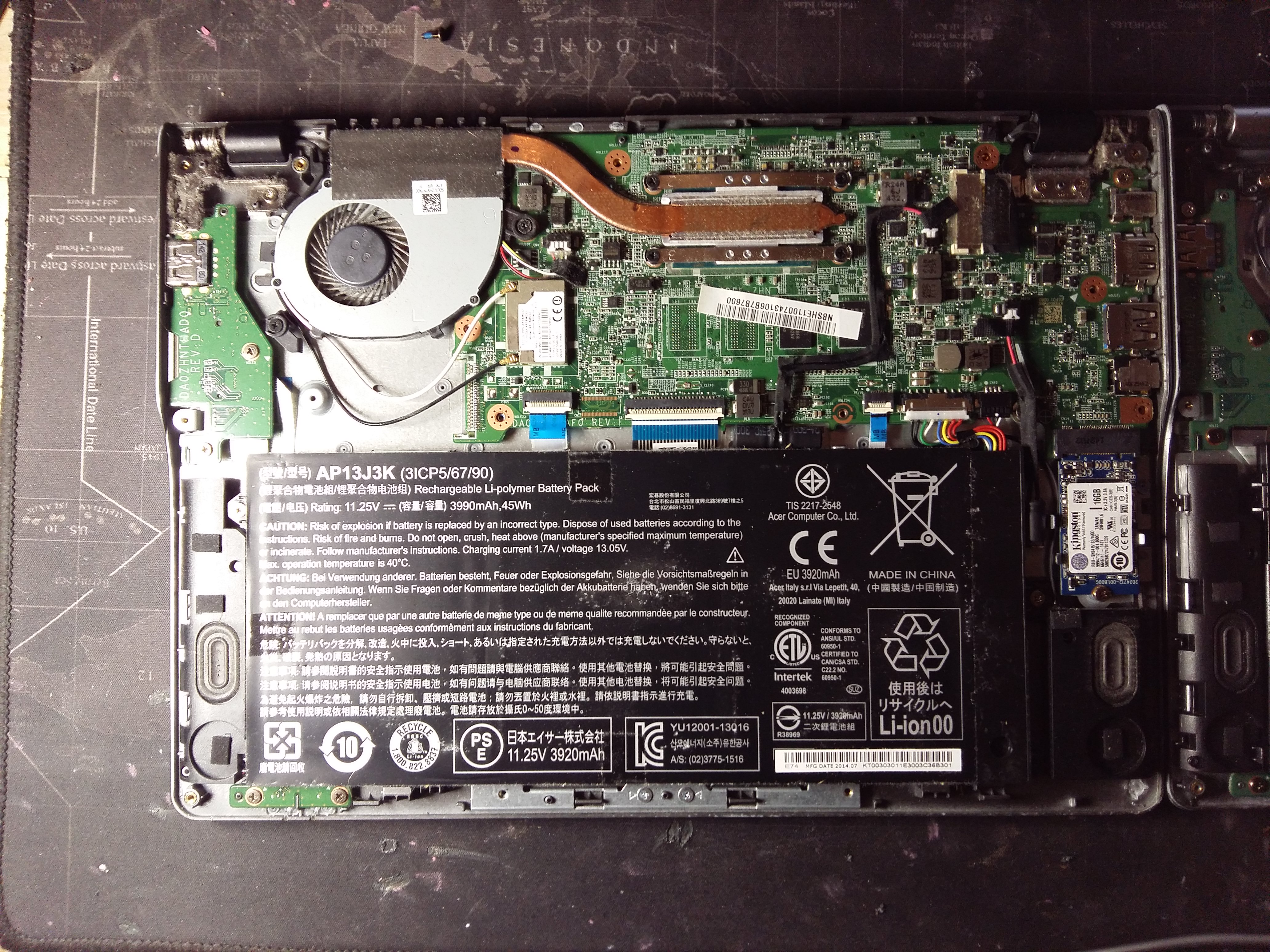

First of all, you must unscrew all screws and then when you opened the bottom of the laptop you must now remove the write-protection screw. Also, remove the battery:
- Now, with your bios/eeprom programmer you can read and overwrite the current bios. The bíos chip is the below one:
Once clip is conncted and your programmer found the clip, backup the current data on the chip:
flashrom -p ch341a_spi -r acer_c720p-locked.bin
Write a clean bios to the chip:
flashrom -p ch341a_spi -w new_bios.bin
Kernel commandline:
cros_secure console= loglevel=7 init=/sbin/init cros_secure root=PARTUUID=7154669e-fca8-7e42-a967-fb4d9fa17343/PARTNROFF=1 rootwait rw dm_verity.error_behavior=3 dm_verity.max_bios=-1 dm_verity.dev_wait=0 dm="1 vroot none ro 1,0 2539520 verity payload=ROOT_DEV hashtree=HASH_DEV hashstart=2539520 alg=sha1 root_hexdigest=9c99ef74f8143304bad67f5ca941b0c0ccda3b0f salt=e5c44164a1e83b080c2d60e769953ba0a6138c654da4e929a1500825363be829" noinitrd vt.global_cursor_default=0 kern_guid=7154669e-fca8-7e42-a967-fb4d9fa17343 add_efi_memmap boot=local noresume noswap i915.modeset=1 tpm_tis.force=1 tpm_tis.interrupts=0 nmi_watchdog=panic,lapic iTCO_vendor_support.vendorsupport=3
Modules
Default modules for c720
Module Size Used by
cmac 12903 2
rfcomm 28294 4
i2c_dev 13075 0
uinput 17359 0
memconsole 12517 0
ath3k 16819 0
snd_hda_codec_realtek 36389 1
btusb 38875 0
btrtl 12493 1 btusb
btbcm 12876 1 btusb
btintel 13157 1 btusb
bluetooth 316837 33 ath3k,btbcm,btrtl,btusb,rfcomm,btintel
zram 17580 1
zsmalloc 13082 1 zram
snd_hda_codec_hdmi 35766 1
uvcvideo 70677 0
videobuf2_vmalloc 12897 1 uvcvideo
videobuf2_memops 12617 1 videobuf2_vmalloc
videobuf2_core 31555 1 uvcvideo
snd_hda_intel 39591 5
snd_hda_codec 138464 3 snd_hda_codec_realtek,snd_hda_codec_hdmi,snd_hda_intel
snd_hwdep 13442 1 snd_hda_codec
snd_pcm 76877 3 snd_hda_codec_hdmi,snd_hda_codec,snd_hda_intel
snd_page_alloc 17260 2 snd_pcm,snd_hda_intel
fuse 70564 2
nf_conntrack_ipv6 13689 2
nf_defrag_ipv6 12884 1 nf_conntrack_ipv6
ip6table_filter 12540 1
ip6_tables 21995 1 ip6table_filter
snd_seq_midi 12848 0
snd_seq_midi_event 13511 1 snd_seq_midi
snd_rawmidi 22993 1 snd_seq_midi
snd_seq 53235 2 snd_seq_midi_event,snd_seq_midi
snd_seq_device 13234 3 snd_seq,snd_rawmidi,snd_seq_midi
snd_timer 27201 2 snd_pcm,snd_seq
ath9k_btcoex 120187 0
ath9k_common_btcoex 12819 1 ath9k_btcoex
ath9k_hw_btcoex 375415 2 ath9k_btcoex,ath9k_common_btcoex
ath 22041 3 ath9k_btcoex,ath9k_hw_btcoex,ath9k_common_btcoex
mac80211 377318 1 ath9k_btcoex
cfg80211 159864 3 ath,ath9k_btcoex,mac80211
joydev 17112 0
lspci
00:00.0 Host bridge: Intel Corporation Haswell-ULT DRAM Controller (rev 0b)
00:02.0 VGA compatible controller: Intel Corporation Haswell-ULT Integrated Graphics Controller (rev 0b)
00:03.0 Audio device: Intel Corporation Haswell-ULT HD Audio Controller (rev 0b)
00:14.0 USB controller: Intel Corporation 8 Series USB xHCI HC (rev 04)
00:15.0 DMA controller: Intel Corporation 8 Series Low Power Sub-System DMA (rev 04)
00:15.1 Serial bus controller [0c80]: Intel Corporation 8 Series I2C Controller #0 (rev 04)
00:15.2 Serial bus controller [0c80]: Intel Corporation 8 Series I2C Controller #1 (rev 04)
00:1b.0 Audio device: Intel Corporation 8 Series HD Audio Controller (rev 04)
00:1c.0 PCI bridge: Intel Corporation 8 Series PCI Express Root Port 1 (rev e4)
00:1f.0 ISA bridge: Intel Corporation 8 Series LPC Controller (rev 04)
00:1f.2 SATA controller: Intel Corporation 8 Series SATA Controller 1 [AHCI mode] (rev 04)
00:1f.3 SMBus: Intel Corporation 8 Series SMBus Controller (rev 04)
00:1f.6 Signal processing controller: Intel Corporation 8 Series Thermal (rev 04)
01:00.0 Network controller: Qualcomm Atheros AR9462 Wireless Network Adapter (rev 01)
SSHD
sshd is already installed and running but you wont be able to ssh into the device from another device because iptables is active and is set to DROP everything as default:
Chain INPUT (policy DROP)
target prot opt source destination
ACCEPT all -- anywhere anywhere state RELATED,ESTABLISHED
ACCEPT all -- anywhere anywhere
ACCEPT icmp -- anywhere anywhere
ACCEPT udp -- anywhere 224.0.0.251 udp dpt:mdns
ACCEPT udp -- anywhere 239.255.255.250 udp dpt:1900
NFQUEUE udp -- anywhere anywhere NFQUEUE num 10000
ACCEPT tcp -- anywhere anywhere tcp dpt:ssh
Chain FORWARD (policy DROP)
target prot opt source destination
Chain OUTPUT (policy DROP)
target prot opt source destination
NFQUEUE udp -- anywhere 224.0.0.251 udp dpt:mdns NFQUEUE num 10001
NFQUEUE udp -- anywhere 239.255.255.250 udp dpt:1900 NFQUEUE num 10001
ACCEPT all -- anywhere anywhere state NEW,RELATED,ESTABLISHED
ACCEPT all -- anywhere anywhere
Just allow port 22 or clear iptables:
iPV4="$(grep . /proc/net/fib_trie)"
iPV6="$(grep '.' /proc/net/if_inet6)";
if [[ -n "${iPV4}" ]]; then
printf "%25s\n" | tr ' ' '-'
printf "%s\n" "Removing all ipv4 rules"
iptables -P INPUT ACCEPT
iptables -P FORWARD ACCEPT
iptables -P OUTPUT ACCEPT
iptables -t nat -F &> /dev/null
iptables -t mangle -F &> /dev/null
iptables -F
iptables -X
printf "%s\n" "...Done"
fi
if [[ -n "${iPV6}" ]]; then
printf "%25s\n" | tr ' ' '-'
printf "%s\n" "Removing all ipv6 rules"
ip6tables -P INPUT ACCEPT
ip6tables -P FORWARD ACCEPT
ip6tables -P OUTPUT ACCEPT
ip6tables -t nat -F &> /dev/null
ip6tables -t mangle -F &> /dev/null
ip6tables -F
ip6tables -X
printf "%s\n" "...Done"
fi
printf "%25s\n" | tr ' ' '-'
Try ssh again, root works fine.
NOTICE: You must set a root password before you can ssh into the device
Set chromeos devpassword:
PASSWD_FILE='/mnt/stateful_partition/etc/devmode.passwd'
pass=$(openssl passwd -1)
mkdir -p "${PASSWD_FILE%/*}"
chmod 600 "${PASSWD_FILE}"
echo "chronos:${pass}" > "${PASSWD_FILE}
VPD:
This is funny. The remote lock is locking devices via the serial number and as root we can list the currect info about device via vpd -l and we are also allowed to write new serial number without any hacking needed, the screw must be removed (see the top of post, WP-Screw)
vpd -i RO_VPD -s serial_number=xxxxxxx
- Hit enter, verify that our new serial has been written:
* vpd -l
Read more about VPD and how it works on url: https://chromium.googlesource.com/chromiumos/platform/vpd/
